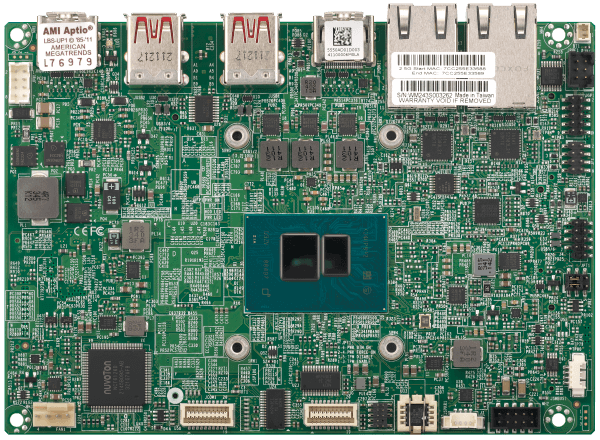

[NR]A4SAN-E w/o HS,3.5"SBC,ASL,UP IoT,x7433RE,SOC,4C,TDP9W,D
| SKU: | MBD-A4SAN-E-WOHS-B |
| Brand: | Supermicro |
Beskrivelsesammendrag
The Supermicro MBD-A4SAN-E-WOHS-B is a high-performance 3.5" single-board computer (SBC), featuring the Intel® Atom® Processor x7433RE, supporting up to 16GB of DDR5 memory, dual 2.5GbE, and a wide power and temperature range for various industrial applications.
Nøkkelfunksjoner
- Intel® Atom® Processor x7433RE (9W, 4C)
- DDR5 4800 MHz, SODIMM x 1, Up to16GB, In-Band ECC supported
- M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280
- Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported
- 9-36V wide range power with RVP and TVS
- Wide temperature suppot from -40°C to 75°C
- 4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO
- 2 HDMI, 1 48bit LVDS, Intel HD Graphics 3 independent displays
Viktige bruksområder
- Industrial Automation
- IoT Gateways
- Edge Computing
- Digital Signage
- Smart Manufacturing
Beskrivelse
The Supermicro MBD-A4SAN-E-WOHS-B is designed for industrial and robust applications, offering performance and reliability in a compact form factor. This SBC comes with an Intel® Atom® Processor x7433RE, supporting up to 16GB of DDR5 memory, ensuring efficient and high-speed data processing. The board includes multiple connectivity options such as dual 2.5GbE, M.2 slots with support for 5G modules, USB3.2, USB2.0, and various display outputs including HDMI and LVDS. With its wide temperature range between -40°C to 75°C and a wide power input range, it is suited for harsh environments, making it ideal for industrial automation, IoT, and edge computing applications.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Physical Stats | |
| Form Factor |
|
| Dimension |
|
| Processor | |
| CPU |
|
| Core |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| On-Board Devices | |
| Chipset |
|
| Audio |
|
| Graphics |
|
| Network Controllers |
|
| Input / Output | |
| USB |
|
| Video Output |
|
| TPM |
|
| Others |
|
| Expansion Slots | |
| PCIe |
|
| M.2 |
|
| System BIOS | |
| BIOS Type | |
| PC Health Monitoring | |
| FAN |
|
| Operating Environment | |
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
|
| Operating Relative Humidity Range |
|
| Non Operating Relative Humidity Range |
|
Standard Delliste
| Part Number | Quantity | Description |
|---|---|---|
| Bulk Package | ||
| DC IN Power cable | ||
| CBL-PWEX-1029 | 1 | DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm |
| Retail Package | ||
| Audio Cable | ||
| CBL-OTHR-0986 | 1 | Audio Cable 20cm |
| COM Cable | ||
| CBL-CDAT-0665 | 2 | COM Cable 20cm |
| DC IN Power cable | ||
| CBL-PWEX-1029 | 1 | DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm |
| QRG | ||
| MNL-2690-QRG | 1 | Motherboard Quick Reference Guide |
| USB Cable | ||
| CBL-CUSB-0983 | 1 | USB2.0 cable 20cm |
Valgfrie Opsjoner
| Part Number | Quantity | Description |
|---|---|---|
| DC IN Power Cable (DC Jack) | ||
| CBL-PWEX-1110-15 | 1 | DC power jack,vertical to 2x4, 2.0mm, 15cm |
| Heatspreader | ||
| MCP-350-10105-0B | 1 | Aluminum block Heatspreader for A4SAN |
| Power Adapter | ||
| MCP-250-10134-0N | 1 | 60W Lockable AC to DC power adapter without power cord |
