[NR]A4SAN-H w/o HS,3.5"SBC,ASL,UP IoT,x7835RE,SOC,8C,TDP12W,

• Intel® Atom® Processor x7835RE (12W, 8C)
• DDR5 4800 MHz, SODIMM x 1, Up to16GB, In-Band ECC supported
• M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280
• Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported
• 9-36V wide range power with RVP and TVS
• Wide temperature suppot from -40°C to 75°C
• 4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO
• 2 HDMI, 1 48bit LVDS, Intel  HD Graphics 3 independent displays

• Industrial automation
• Embedded systems
• Networking appliances
• IoT devices

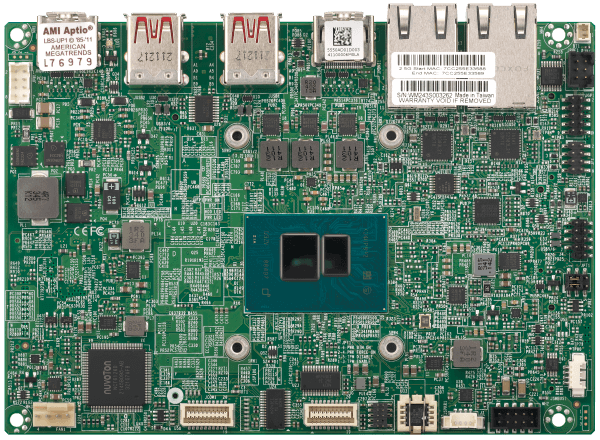

The Supermicro MBD-A4SAN-H-WOHS-O motherboard is engineered with the Intel Atom x7835RE processor, ensuring efficient performance with its 8 cores. Equipped with DDR5 4800 MHz SODIMM (up to 16GB), it offers robust memory capabilities. This motherboard supports various storage and connectivity options including M.2 M-Key 2242/2280, dual 2.5GbE, multiple USB ports, and extensive I/O interfaces. Designed for harsh environments, it operates efficiently within -40°C to 75°C temperature range, making it suitable for industrial and embedded applications.
