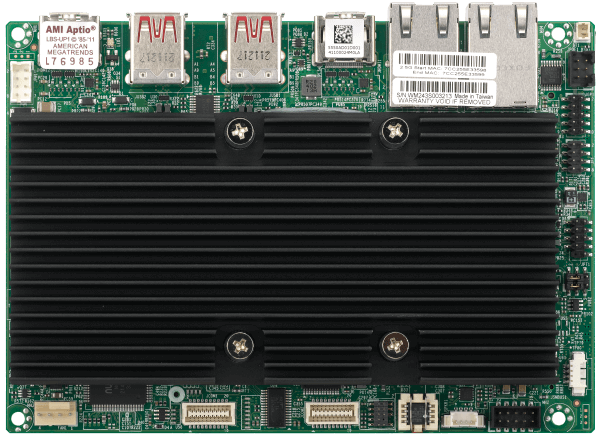

[NR]A4SAN-L, Embedded 3.5" SBC, Intel Alder-Lake-N SoC, N97,

MBD-A4SAN-L-B
https://safeconsulting.no/web/image/product.template/10116/image_1920?unique=ba3907f

kr 2 744,82 2744.82 NOK kr 2 744,82

kr 2 744,82

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-A4SAN-L-B motherboard is designed for high performance and versatility, featuring an Intel® processor N97, DDR5 memory support, and comprehensive input/output options, making it ideal for diverse computing needs.

    Key Features

    • Intel® processor N97 (12W, 4C)
    • DDR5 4800 MHz, SODIMM x 1, Up to16GB, In-Band ECC supported
    • Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported
    • 9-36V wide range power with RVP and TVS
    • M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280
    • 4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO
    • 2 HDMI, 1 48bit LVDS, Intel HD Graphics 3 independent displays

    Key Applications

    • Industrial computing
    • Embedded systems
    • IoT applications
    • Edge computing
    • Digital signage

    Description

    Experience superior performance with the Supermicro MBD-A4SAN-L-B. Powered by an Intel® processor N97, this 3.5" SBC motherboard supports DDR5 memory and features dual 2.5GbE ports, multiple M.2 slots, and extensive input/output options including HDMI, USB3.2, and more. Built for flexibility and power efficiency, it caters to a wide range of industrial and embedded applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A4SAN-L
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU
    • Intel®  Processor  N97
    • Single Socket FCBGA-1264 supported, CPU TDP supports Up to 12W TDP
    Core
    • Up to 4 cores / 6MB Cache
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 16GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s
    Memory Type
    • 4800 MT/s non-ECC DDR5 SODIMM Unbuffered DDR5 up to 16GB
    DIMM Sizes
    • 8GB, 16GB
    • SODIMM: 8GB, 16GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® UHD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I226-AT
    Input / Output
    USB
    • 4 USB 3.2 Gen2 port(s) (4 rear)
    • 1 USB 2 port(s) (1 via header)
    Video Output
    • 2 HDMI port(s), 1 48-bit LVDS port(s)
    TPM
    • 1 TPM Chip
    Others
    • 1 8-bit GPIO header
    • 1 HD Audio header (Mic-in/Headphone-out)
    • 1 SMBus/I2C header
    • 1 Speaker w/ 3W amp.
    Expansion Slots
    PCIe
    • No/A
    M.2
    • M.2 Interface: 1 SATA/PCIe3.0 x1/USB3/USB2; 1 CNVi/PCIe3.0 x1/USB2; 1 SATA/PCIe3.0 x1
    • Form Factor: 2242/3052/2280, 2230, 2242/2280
    • Key: B-Key, E-Key, M-Key
    System BIOS
    BIOS Type
    • 32MB AMI UEFI
    BIOS Features
    • ACPI 6.4
    • SMBIOS 3.3
    • UEFI 2.7
    • PCI FW3.0
    • RTC (Real Time Clock) Wakeup
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, CPU temperature, 3.3V standby, +5V standby, +3.3V, +12V, Vcore, VDD2 (VDIMM)
    Temperature
    • CPU thermal trip support
    Other Features
    • WOL
    • RoHS
    • Control of power-on for recovery from AC power loss
    • ACPI power management
    FAN
    • 1x 4-pin fan header (up to 1 fan)
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0168L1A4SAN passive heatsink with height 17mm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CDAT-06652COM Cable 20cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0168L1A4SAN passive heatsink with height 17mm
    QRG
    MNL-2690-QRG1Motherboard Quick Reference Guide
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC power jack,vertical to 2x4, 2.0mm, 15cm
    Heatspreader
    MCP-350-10105-0B1Aluminum block Heatspreader for A4SAN
    Power Adapter
    MCP-250-10134-0N160W Lockable AC to DC power adapter without power cord
