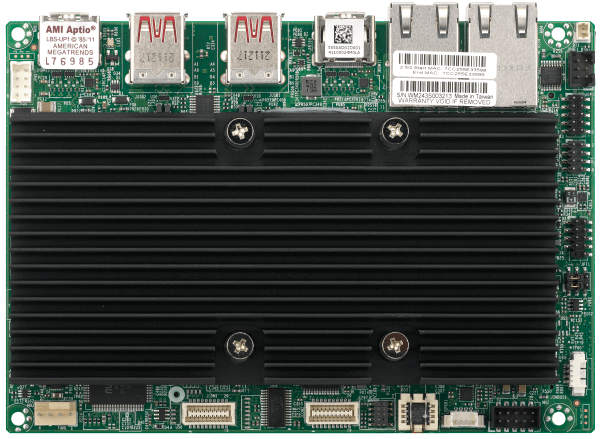

[NR]A4SAN-L, Embedded 3.5" SBC, Intel Alder-Lake-N SoC, N97,
MBD-A4SAN-L-O
Summary Description
Designed for versatility and power, the Supermicro MBD-A4SAN-L-O 3.5" Single Board Computer (SBC) integrates an Intel® Processor N97, supports DDR5 memory, and offers extensive I/O options including dual 2.5GbE, multiple M.2 slots, and various USB ports. It is engineered to fulfill demanding applications across different environments with a wide operating temperature range and reliable performance.
Key Features
- Intel® processor N97 (12W, 4C)
- DDR5 4800 MHz, SODIMM x 1, Up to16GB, In-Band ECC supported
- Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported
- 9-36V wide range power with RVP and TVS
- M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280
- 4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO
- 2 HDMI, 1 48bit LVDS, Intel HD Graphics 3 independent displays
Key Applications
- Edge Computing
- IoT Gateways
- Industrial Automation
- Network Security
- Smart Retail
- AIoT Solutions
- Embedded Systems
Description
The Supermicro MBD-A4SAN-L-O is a high-performance 3.5" Single Board Computer (SBC) built around the Intel® Processor N97. It supports up to 16GB of DDR5 memory and features dual 2.5GbE ports for high-speed networking. The board offers a comprehensive range of I/O options, including multiple M.2 slots, HDMI, LVDS, USB 3.2, USB 2.0, and various expansion headers. Designed for reliability, it operates within a wide temperature range of 0°C to 60°C and supports advanced power management features. Additionally, it comes equipped with an ALC 888S HD Audio, Intel UHD Graphics, and robust system BIOS for enhanced system performance and management.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Physical Stats | |
| Form Factor |
|
| Dimension |
|
| Processor | |
| CPU |
|
| Core |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| On-Board Devices | |
| Chipset |
|
| Audio |
|
| Graphics |
|
| Network Controllers |
|
| Input / Output | |
| USB |
|
| Video Output |
|
| TPM |
|
| Others |
|
| Expansion Slots | |
| PCIe |
|
| M.2 |
|
| System BIOS | |
| BIOS Type |
|
| BIOS Features |
|
| PC Health Monitoring | |
| Voltage |
|
| Temperature |
|
| Other Features |
|
| FAN |
|
| Operating Environment | |
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
|
| Operating Relative Humidity Range |
|
| Non Operating Relative Humidity Range |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Bulk Package | ||
| DC IN Power cable | ||
| CBL-PWEX-1029 | 1 | DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm |
| Passive heatsink | ||
| SNK-C0168L | 1 | A4SAN passive heatsink with height 17mm |
| Retail Package | ||
| Audio Cable | ||
| CBL-OTHR-0986 | 1 | Audio Cable 20cm |
| COM Cable | ||
| CBL-CDAT-0665 | 2 | COM Cable 20cm |
| DC IN Power cable | ||
| CBL-PWEX-1029 | 1 | DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm |
| Passive heatsink | ||
| SNK-C0168L | 1 | A4SAN passive heatsink with height 17mm |
| QRG | ||
| MNL-2690-QRG | 1 | Motherboard Quick Reference Guide |
| USB Cable | ||
| CBL-CUSB-0983 | 1 | USB2.0 cable 20cm |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| DC IN Power Cable (DC Jack) | ||
| CBL-PWEX-1110-15 | 1 | DC power jack,vertical to 2x4, 2.0mm, 15cm |
| Heatspreader | ||
| MCP-350-10105-0B | 1 | Aluminum block Heatspreader for A4SAN |
| Power Adapter | ||
| MCP-250-10134-0N | 1 | 60W Lockable AC to DC power adapter without power cord |
