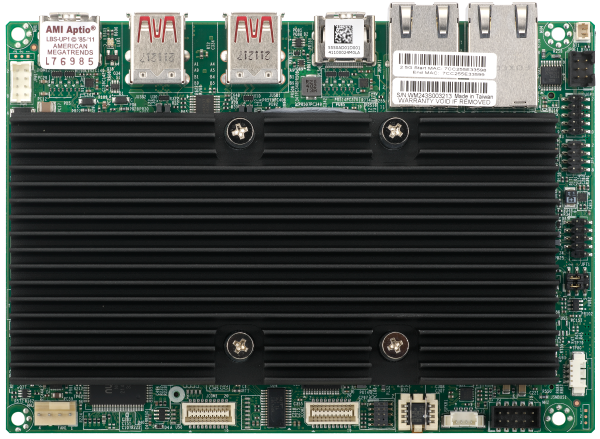

[NR]A4SAN-L w/o HS,3.5"SBC,ADL-N,UP IoT,N97,SOC,4C,TDP12W,DD

Name: [NR]A4SAN-L w/o HS,3.5"SBC,ADL-N,UP IoT,N97,SOC,4C,TDP12W,DD
Brand: supermicro
SKU: MBD-A4SAN-L-WOHS-O
Price: 2795.65 NOK
Availability: OutOfStock

SKU:

MBD-A4SAN-L-WOHS-O

kr 2 795,65 2795.65 NOK kr 2 795,65

kr 2 795,65

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

The Supermicro MBD-A4SAN-L-WOHS-O is equipped with an Intel processor N97, DDR5 4800MHz memory support, dual 2.5GbE, and extensive I/O options. Ideal for embedded, IoT, and industrial applications.

Key Features

Intel® processor N97 (12W, 4C)
DDR5 4800 MHz, SODIMM x 1, Up to16GB, In-Band ECC supported
Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported
9-36V wide range power with RVP and TVS
M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280
4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO
2 HDMI, 1 48bit LVDS, Intel HD Graphics 3 independent displays

Key Applications

Embedded systems
IoT devices
Industrial applications
Automation systems
Digital signage

Description

The Supermicro MBD-A4SAN-L-WOHS-O motherboard is designed for performance and versatility in embedded applications. It features the Intel processor N97, supporting up to 16GB of DDR5 memory, and offers a wide range of connectivity and expansion options, including dual 2.5GbE, multiple M.2 slots, and comprehensive I/O ports such as USB 3.2, HDMI, and LVDS. Its wide voltage power range, robust design, and extensive features make it perfect for industrial, IoT, and various embedded systems.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-A4SAN-L-WOHS
Physical Stats
Form Factor	3.5" SBC
Dimension	5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU	Intel® Processor N97 Single Socket FCBGA-1264 supported, CPU TDP supports Up to 12W TDP
Core	Up to 4 cores / 6MB Cache
System Memory
Memory Capacity	1 DIMM slots Up to 16GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s
Memory Type	4800 MT/s non-ECC DDR5 SODIMM Unbuffered DDR5 up to 16GB
DIMM Sizes	8GB, 16GB SODIMM: 8GB, 16GB
Memory Voltage	1.1V
On-Board Devices
Chipset	System on Chip
Audio	ALC 888S HD Audio
Graphics	1 Intel® UHD Graphics port(s)
Network Controllers	Dual LAN with Intel® Ethernet Controller I226-AT
Input / Output
USB	4 USB 3.2 Gen2 port(s) (4 rear) 1 USB 2 port(s) (1 via header)
Video Output	2 HDMI port(s), 1 48-bit LVDS port(s)
TPM	1 TPM Chip
Others	1 8-bit GPIO header 1 HD Audio header (Mic-in/Headphone-out) 1 SMBus/I2C header 1 Speaker w/ 3W amp.
Expansion Slots
PCIe	No/A
M.2	M.2 Interface: 1 SATA/PCIe3.0 x1/USB3/USB2; 1 CNVi/PCIe3.0 x1/USB2; 1 SATA/PCIe3.0 x1 Form Factor: 2242/3052/2280, 2230, 2242/2280 Key: B-Key, E-Key, M-Key
System BIOS
BIOS Type	32MB AMI UEFI
BIOS Features	ACPI 6.4 SMBIOS 3.3 UEFI 2.7 PCI FW3.0 RTC (Real Time Clock) Wakeup
PC Health Monitoring
FAN	1x 4-pin fan header (up to 1 fan)
Operating Environment
Operating Temperature Range	0°C - 85°C (32°F - 185°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
DC IN Power cable
CBL-PWEX-1029	1	DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
Retail Package
Audio Cable
CBL-OTHR-0986	1	Audio Cable 20cm
COM Cable
CBL-CDAT-0665	2	COM Cable 20cm
DC IN Power cable
CBL-PWEX-1029	1	DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
QRG
MNL-2690-QRG	1	Motherboard Quick Reference Guide
USB Cable
CBL-CUSB-0983	1	USB2.0 cable 20cm

Optional Part List

Part Number	Quantity	Description
DC IN Power Cable (DC Jack)
CBL-PWEX-1110-15	1	DC power jack,vertical to 2x4, 2.0mm, 15cm
Heatspreader
MCP-350-10105-0B	1	Aluminum block Heatspreader for A4SAN
Power Adapter
MCP-250-10134-0N	1	60W Lockable AC to DC power adapter without power cord
