  3. [NR]A4,Embedded,2.5"SBC, ADL-N,UP,N97,BGA,12W,1xDDR5 SODIMM,

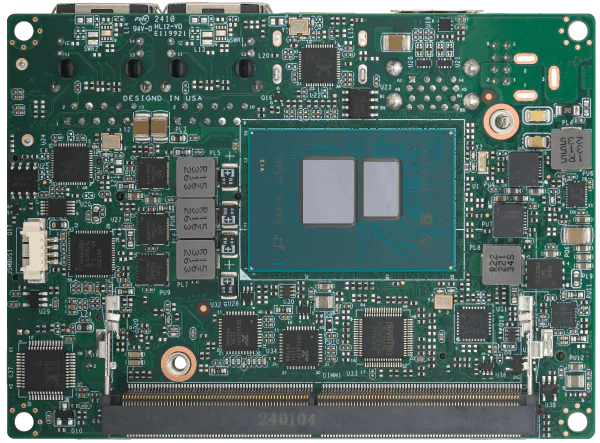

[NR]A4,Embedded,2.5"SBC, ADL-N,UP,N97,BGA,12W,1xDDR5 SODIMM,

SKU: MBD-A4SAP-L-B
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/12590/image_1920?unique=aca1123

kr 2 649,01 2649.01 NOK kr 2 649,01 Ekskl. mva

kr 2 649,01 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro A4SAP-L Pico-ITX SBC features the Intel® Processor N97, supporting up to 16GB DDR5 memory. It offers extensive I/O options, including HDMI and LVDS ports, ensuring compatibility with various embedded and industrial applications. Designed to operate in a wide temperature range, the A4SAP-L is ideal for demanding environments.

    Nøkkelfunksjoner

    • Intel® processor N97 (12W, 4C)
    • 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe
    • Extension I/O (1 DP/HDMI, 2 PCIe x1, 2 USB2.0, LPC, SATA, SMBus, Power)
    • 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
    • Supports 12V DC power input
    • Wide temperature suppot from -30°C to 75°C
    • 2 USB 3.0 ports (rear), 2 USB 2.0 ports (via headers), 2 COM ports (via headers)

    Viktige bruksområder

    • Industrial Automation
    • Embedded Systems
    • Digital Signage
    • IoT Gateways
    • Medical Devices
    • Smart Home Applications
    • Networking Equipment
    • Security Systems
    • Transportation
    • Retail Solutions

    Beskrivelse

    The Supermicro A4SAP-L is a Pico-ITX single board computer featuring the Intel® Processor N97. It supports up to 16GB of DDR5 memory and offers a variety of I/O options, including HDMI, LVDS, USB, and LAN ports. The SBC is designed for use in a wide range of temperatures, making it suitable for industrial and embedded applications.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • MBD-A4SAP-L
    Physical Stats
    Form Factor
    • Pico-ITX
    Dimension
    • 4" x 2.83" (10.16cm x 7.19cm)
    Processor
    CPU
    • Intel®  Processor  N97
    • Single Socket FCBGA-1264 supported, CPU TDP supports Up to 12W TDP
    Core
    • Up to 4 cores / 6MB Cache
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 16GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s
    Memory Type
    • 4800 MT/s non-ECC DDR5 SODIMM Unbuffered DDR5 up to 16GB
    DIMM Sizes
    • 8GB, 16GB
    • SODIMM: 8GB, 16GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • No/A
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 2 LAN
    USB
    • 2 USB 3.2 PCIe Gen. 2 port(s) (2 rear)
    • 2 USB 2 port(s) (2 Others)
    Video Output
    • 1 HDMI port(s), 1 48-bit LVDS port(s)
    Others
    • 1 8-bit GPIO header
    • 1 HD Audio header (Mic-in/Headphone-out) (Note:Audio only support 0~60C)
    • 1 SMbus and 5V/A SATA Power bo header
    • 1 SMBus
    Expansion Slots
    PCIe
    • No/A
    M.2
    • M.2 Interface: 1 PCIe3.0 x1/USB2; 1 PCIe3.0 x1/SATA3.0 x1/USB3/USB2
    • Form Factor: 2230, 2242
    • Key: E-Key, B-Key
    System BIOS
    BIOS Type
    • 32MB AMI UEFI
    BIOS Features
    • ACPI 6.4
    • SMBIOS 3.3
    • UEFI 2.7
    • PCI FW3.0
    • RTC (Real Time Clock) Wakeup
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, CPU temperature, 3.3V standby, +5V standby, +3.3V, +12V, Vcore, VDD2 (VDIMM)
    Temperature
    • CPU thermal trip support
    Other Features
    • WOL
    • RoHS
    • Control of power-on for recovery from AC power loss
    • ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Delliste

    Part Number Quantity Description
    Bulk Package
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0116L1A2SAP Passive heatsink with 25mm height
    SATA cable
    CBL-SAST-05381SATA Data cable 29CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CUSB-09841COM Cable 20cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0116L1A2SAP Passive heatsink with 15mm height
    QRG
    MNL-2701-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-05381SATA Data cable 29CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Valgfrie Opsjoner

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC IN Power cable 2x4P to 5.5x2.5 DC JACK with 17cm
    Power Adapter
    MCP-250-10134-0N160W 12V 5A, AC to DC lockable power adapter,HF
    MCP-250-10135-0N140W 12V 3.33A, AC to DC lockable power adapter,HF
