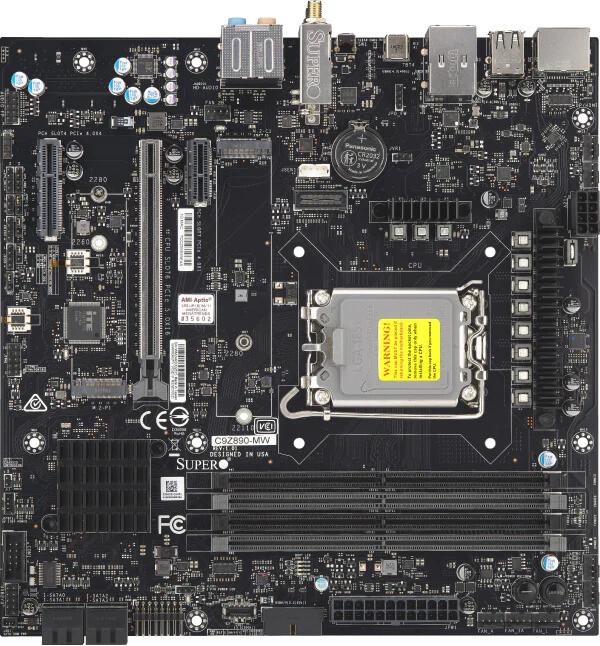

C9, DT, uATX, ARL-S, UP, Core Ultra, LGA1851, Z890, 125W

SKU: MBD-C9Z890-MW-B
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/13543/image_1920?unique=8816bc7

kr 4 582,37 4582.37 NOK kr 4 582,37 Ekskl. mva

kr 4 582,37 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    A versatile and high-performance microATX motherboard, the C9Z890-MW supports Intel Core Ultra processors with an LGA 1851 socket, offering robust connectivity options including PCIe 5.0, Wi-Fi 7, and Thunderbolt 4.

    Nøkkelfunksjoner

    • Intel® Core™ Ultra 9/7/5 Processors, LGA 1851 (Intel® V1 Socket)TDP up to 125W
    • Intel® Z890
    • Up to 192GB non-ECC UDIMM4 DDR5 5600+MT/s (OC)Supports Intel Extreme Memory Profile (XMP) memory module
    • 1 PCIe 5.0 x16 Slot1 PCIe 4.0 x4 Slot1 PCIe 4.0 x1 Slot
    • M.2 Interface:1 PCIe 5.0 x4; 1 PCIe 4.0 x4, RAID 0 &1M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Single LAN with Intel® Ethernet I219-VWi-Fi 7 + Bluetooth® 5.4

    Viktige bruksområder

    • Desktop Computing
    • Server Environments
    • High-Performance Workstations
    • Data-Intensive Operations
    • Cloud Computing
    • Gaming Systems

    Beskrivelse

    The C9Z890-MW microATX motherboard is designed for high-performance desktop applications, offering support for Intel Core Ultra processors and DDR5 memory. It features advanced connectivity options such as PCIe 5.0, USB 4.0, and Thunderbolt 4. With integrated Wi-Fi 7 and Bluetooth 5.4, this motherboard provides reliable networking capabilities. Additional features include enhanced cooling solutions and robust power delivery for efficient operation.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • MBD-C9Z890-MW
    Physical Stats
    Form Factor
    • microATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • Intel® Core™ Ultra 9/7/5 Processors
    • Single Socket LGA-1851 (Socket V1) supported, CPU TDP supports Up to 125W TDP
    Core
    • Up to 8+16 cores, 24 threads
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 192GB Unbuffered non-ECC UDIMM, DDR5-5600+MT/s
    Memory Type
    • 5600 MT/s None-ECC UDIMM
    DIMM Sizes
    • 8GB, 24GB, 16GB, 32GB, 48GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • Intel® Z890
    SATA
    • Intel® Z890 Express controller for 4 SATA 3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Single LAN with 1Gb Intel® Ethernet PHY I219-V
    • 5.76 Gbps Wi-Fi 7 + Bluetooth 5.4 * Wi-Fi frequency band and bandwidth regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
    Input / Output
    SATA
    • 4 SATA 3 port(s)
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear Type-A)
    • 4 USB 3.2 Gen 1 port(s) (2 via header; 2 rear Type-A)
    • 1 USB 3.2 Gen 2x2 port(s) (1 Type C Header)
    • 1 USB 4.0 port(s) (1 rear Type-C Intel® Thunderbolt™ 4)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 Intel® Thunderbolt™ 4 Type C (Shared w/ USB4) port(s), 1 HDMI port(s) Supports up to 8K@60Hz
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x4,
    • 1 PCIe 5.0 x16 (in x16 slot),
    • 1 PCIe 4.0 x1
    M.2
    • M.2 Interface: 1 PCIe 5.0 x4, RAID 0 & 1; 1 PCIe 4.0 x4, RAID 0 & 1
    • Form Factor: 2280/22110, 2280
    • Key: M-Key, M-Key
    System BIOS
    BIOS Type
    • 256MB SPI Flash with AMI BIOS
    BIOS Features
    • ACPI 6.0
    • Plug and Play (PnP)
    • BIOS rescue hot keys
    • SMBIOS 3.0 or later
    • Riser card auto-detection support
    PC Health Monitoring
    FAN
    • 7x 4-pin fan headers (up to 7 fans)
    • Fan speed control
    • 7 fans with tachometer status monitoring
    Other Features
    • WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Voltage and Frequency Overclocking
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)

    Standard Delliste

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00193-0B1I/O Shield
    SATA Cables
    CBL-0044L2SATA Cables
    Retail Package
    Antenna
    CBL-ANTD-0115SMA2WiFi 7 ANT,SMA Plug R.P,Freq 2.4-2.5/5.15-7.125GHz,RoHS
    I/O Shield
    MCP-260-00193-0B1I/O Shield
    Quick Reference Guide
    MNL-2707-QRG1Quick Reference Guide
    S-Connector
    JMP-0010L-0000-PRX1S-connector (Front Control Panel Connector/Adapter)
    SATA Cables
    CBL-0044L4SATA Cables
