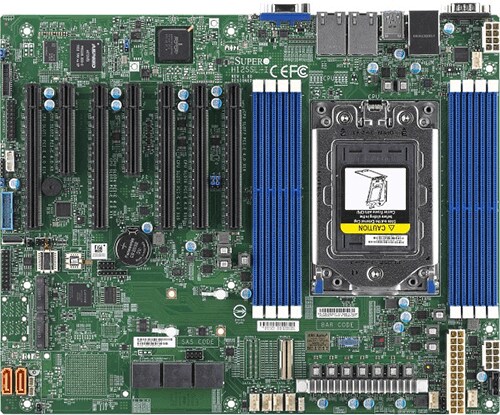

H12 AMD EPYC UP platform with socket SP3Zen2coreCPU, SoC

Name: H12 AMD EPYC UP platform with socket SP3Zen2coreCPU, SoC
Brand: supermicro
SKU: MBD-H12SSL-I-O
Price: 5489.64 NOK
Availability: OutOfStock

SKU:

MBD-H12SSL-I-O

kr 5 489,64 5489.64 NOK kr 5 489,64

kr 5 489,64

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

The Supermicro MBD-H12SSL-I-O is designed for high-performance computing needs, supporting single AMD EPYC™ 7003/7002 Series Processors, up to 2TB of Registered ECC DDR4 3200MHz memory across 8 DIMM slots. With dual Gigabit Ethernet LAN ports, 5 PCI-E 4.0 x16 slots, and integrated ASPEED AST2500 BMC graphics, this ATX motherboard offers a robust solution for modern data centers and enterprise environments.

Key Features

Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Expansion slots: 5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface : 2 PCI-E 4.0 x4 M.2 Form Factor : 2280, 22110 M.2 Key : M-key
8 SATA3, 2 M.2, 8 SATA3 or 2 NVMe via single SlimSAS x8
2 Gigabit Ethernet LAN Ports
ASPEED AST2500 BMC graphics
Up to 6 USB 3.0 ports (4 rear + 2 via header)
7 PWM 4-pin Fans with tachometer status monitoring

Key Applications

Data centers
Enterprise servers
High-performance computing
Virtualization
Cloud computing
Database management

Description

The Supermicro MBD-H12SSL-I-O motherboard is built for demanding computing requirements. It supports a single AMD EPYC™ 7003/7002 Series Processor and up to 2TB of DDR4 ECC memory spread over 8 DIMM slots. With extensive I/O options including 8 SATA3 ports, 2 M.2 interfaces, and dual Gigabit Ethernet LAN ports, this board ensures scalability and performance. The presence of ASPEED AST2500 BMC graphics and up to 7 PWM 4-pin fans with monitoring further enhance system reliability and management.

Product Specifications

Specification	Details
Product SKUs
MBD-H12SSL-i	H12SSL-i
MBD-H12SSL-i-O	H12SSL-i (Retail Pack)
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6" (30.5cm x 24.4cm)
Processor/Chipset
CPU	Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) Socket SP3
Cores	Up to 64 Cores
Chipset	System on Chip
System Memory
Memory Capacity	8 DIMM slots Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM 8-channel memory bus
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	SATA3 (6 Gbps)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	Dual gigabit LAN via Broadcom BCM5720 1 Realtek RTL8211F PHY (dedicated IPMI)
VGA	ASPEED AST2500 BMC
Input / Output
SATA	8 SATA3 (6 Gbps) ports
SATA/NVMe Hybrid	8 SATA3 or 2 NVMe via single SlimSAS x8
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	6 USB 3.0 ports(4 rear + 2 via header)
VGA	1 VGA port
Others	1 COM port (rear) 2 SATA DOM power connectors 1 TPM 2.0 header
Expansion Slots
PCI-Express	5 PCI-E 4.0 x16 2 PCI-E 4.0 x8
M.2	Interface: 2 PCI-E 4.0 x4 Form factor: 2280, 22110 Key: M-key
Chassis ( Optimized for H12SSL-i )
1U	SC813MFTQC-350CB2 SC813MFTQC-R407CB
2U	SC213BAC8-R1K23LPB SC216BE1C4-R1K23LPB SC825MBTQC-R802LPB SC825TQC-R802LPB SC826BE1C4-R1K23LPB SCLA26AC12-R920LP1
3U	SC835TQC-R802B SC836BE1C-R1K23B
Mid-Tower	SC732i-903B
Tower/4U	SC745BAC-R1K23B SC846BE1C-R1K23B
Server(s) ( with H12SSL-i )
Model(s)	AS -2014S-TR AS -3014TS-i
System BIOS
BIOS Type	AMI 256Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1
Management
Software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0 , KVM with dedicated LAN
Power Configurations	ACPI Power Management Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby CPU switching voltage regulator Supports system management utility VBAT
FAN	Up to 7-fan status tachometer monitoring Up to 7 4-pin fan headers Dual Cooling Zone Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 7x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header UID
Operating Environment / Compliance
Environmental Specifications	Operating Temperature:10°C to 35°C (50°F to 95°F) Non-operating Temperature:-40°C to 70°C (-40°F to 158°F) Operating Relative Humidity:8% to 90% (non-condensing) Non-operating Relative Humidity:5% to 95% (non-condensing)

Optional Part List

Part Number	Quantity	Description

Part Number	Qty	Description
I/O Cable
CBL-SAST-0699	-	MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
TPM security module
AOM-TPM-9655V	-	TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
