  2. H12 AMD UP platform withEPYC SP3 Rome CPU,SoC,8DIMM DDR4

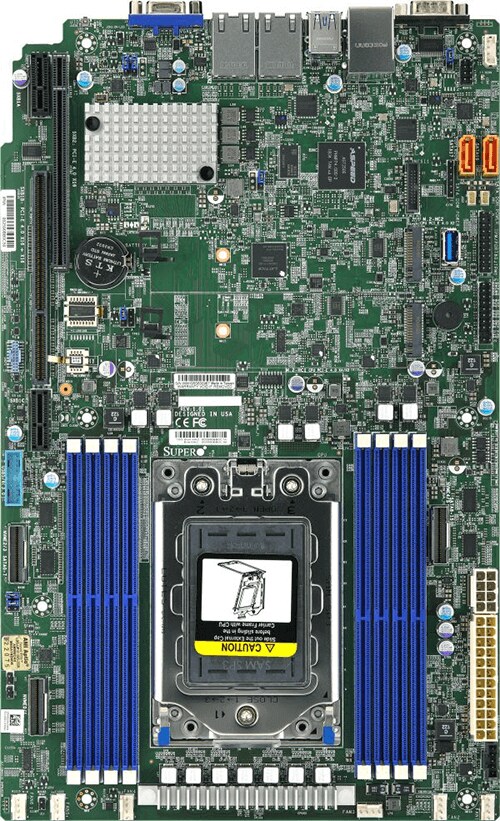

H12 AMD UP platform withEPYC SP3 Rome CPU,SoC,8DIMM DDR4

MBD-H12SSW-IN-B
https://safeconsulting.no/web/image/product.template/10252/image_1920?unique=a1dbe1e

kr 4 866,97 4866.97 NOK kr 4 866,97

kr 4 866,97

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-H12SSW-IN-B supports Single AMD EPYC™ 7003/7002 Series Processor, with up to 2TB ECC DDR4 RAM in 8 DIMM slots, various expansion options including 1 PCI-E x32 slot, 2 NVMe via SlimSAS, and robust connectivity with 7 USB 3.0 ports.

    Key Features

    • Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
    • Expansion slots: 1 PCI-E 4.0 x32 Left Riser Slot 1 PCI-E 4.0 x16 Right Riser Slot M.2 Interface : 2 SATA/PCI-E 3.0 x2 M.2 Form Factor : 2280, 22110 M.2 Key : M-key
    • 16 SATA3, 2 M.2, 2 SuperDOM
    • 2 NVMe via SlimSAS, 4 NVMe or 16 SATA3 via SlimSAS, 2 M.2, 2 SATA3
    • 1 Realtek RTL8211E PHY (dedicated IPMI)
    • ASPEED AST2500 BMC graphics
    • Up to 7 USB 3.0 ports
    • 6x 4-pin PWM Fans & Speed control

    Key Applications

    • High-performance computing
    • Enterprise applications
    • Data centers
    • Storage solutions
    • Virtualization servers

    Description

    The Supermicro MBD-H12SSW-IN-B motherboard is engineered for high-performance with support for Single AMD EPYC™ 7003/7002 Series Processor. It offers up to 2TB Registered ECC DDR4 3200MHz SDRAM across 8 DIMM slots. Expansion capabilities include 1 PCI-E 4.0 x32 Left Riser Slot, 1 PCI-E 4.0 x16 Right Riser Slot, and 2 NVMe via SlimSAS. Integrated networking features provide 2x 1GbE LAN Ports, and robust storage support includes 16 SATA3 and 2 M.2 slots. Additional features include ASPEED AST2500 BMC graphics, up to 7 USB 3.0 ports, and an advanced thermal management system.

    Product Specifications

    Specification Details
    Product SKUs
    MBD-H12SSW-iN
    • H12SSW-iN
    Physical Stats
    Form Factor
    • Proprietary WIO
    Dimensions
    • 8.15" x 13.05"
    Processor/Chipset
    CPU
    • Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    Cores
    • Up to 64 Cores
    Chipset
    • System on Chip
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
    • 8-channel memory bus
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    SATA
    • SATA3 (6 Gbps)
    IPMI
    • Support for Intelligent Platform Management Interface v. 2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2500 BMC
    Network Controllers
    • 2x 1GbE LAN Ports via Broadcom BCM5720L
    • 1 Realtek RTL8211E PHY (dedicated IPMI)
    VGA
    • ASPEED AST2500 BMC
    Input / Output
    SATA
    • 2 SATA3 (6 Gbps) ports
    SATA/NVMe Hybrid
    • 16 SATA3 / 4 NVMe (PCI-E Gen3)
    NVMe
    • 2 NVMe (PCI-E Gen4)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 7 USB 3.0 ports (4 rear, 2 via header, 1 Type A)
    VGA
    • 1 VGA port
    Others
    • 1 COM port
    • 2 SuperDOM power connectors
    • 1 TPM 1.2/2.0 header
    Expansion Slots
    PCI-Express
    • 1 PCI-E 4.0 x32 Left Riser Slot
    • 1 PCI-E 4.0 x16 Right Riser Slot
    M.2
    • Interface: 2 SATA/PCI-E 3.0 x2
    • Form Factor: 2280, 22110
    • Key: M-key
    Chassis (Optimized for H12SSW-iN)
    1U
    • SC116AC10-R706WB3
    • SC815TQC-R504WB2
    • SCLA15TQC-563W
    • SCLB16AC2-R504W
    2U
    • SC213BAC8-R1K23WB
    • SC825TQC-R802WB
    System BIOS
    BIOS Type
    • AMI 256Mb SPI Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 5.1
    • USB Keyboard Support
    • SMBIOS 3.1.1
    Management
    Software
    • Super Doctor 5
    • Watch Dog
    • NMI
    • SUM
    • IPMI 2.0 , KVM with dedicated LAN
    Power Configurations
    • ACPI Power Management
    • Power-on mode control for AC power loss recovery
    PC Health Monitoring
    CPU
    • Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby
    • CPU switching voltage regulator
    FAN
    • Up to 6 fan status tachometer monitoring
    • Up to 6 4-pin fan headers
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU Thermal Trip Support
    • Thermal control for 6x Fan connectors
    • I²C Temperature Sensing Logic
    LED
    • CPU / System Overheat LED
    Other Features
    • Chassis Intrusion Detection
    • Chassis Intrusion Header
    Operating Environment / Compliance
    Environmental Specifications
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    Part NumberQtyDescription
    TPM security module
    AOM-TPM-9655V-TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
