Workstation FlagshipMB,E-ATX,AMDThreadripperPro,OLGA-409

MBD-M12SWA-TF-O

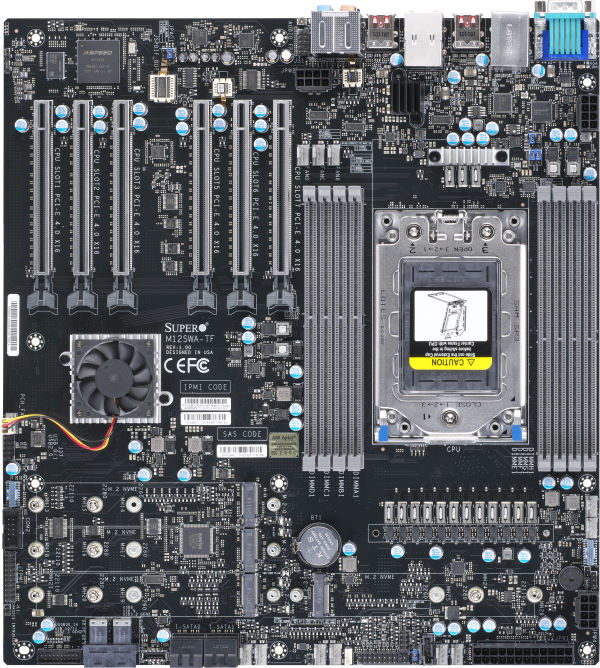

https://safeconsulting.no/web/image/product.template/10696/image_1920?unique=29062ce

kr 7 586,38 7586.38 NOK kr 7 586,38

kr 7 586,38

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    Supermicro MBD-M12SWA-TF. Processor manufacturer: AMD, Processor socket: Socket sWRX8, Compatible processor series: AMD Ryzen™ Threadripper™. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2600. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel® I210-AT

    Key Features

    • AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
    • Up to 2TB (RDIMM) / 256GB (UDIMM), ECC/Non-ECC, Unbuffered, U-DIMM, R-DIMM, LRDIMM, and 3DS R-DIMM; 3200Mhz in 8 DIMM slots
    • 6 PCI-E 4.0 x16 slots M.2 Interface : 4 PCI-E 4.0 x4 (Software RAID 0,1,5,10) M.2 Form Factor : 2280, 22110 M.2 Key : M-key U.2 Interface : 2 U.2 sockets (Software RAID 0,1)
    • 4 SATA 3.0 6Gbps (Software Raid 0,1,5 & 10)
    • 1x 10GBase-T LAN port, 1 GbE LAN port (shared with IPMI)
    • ASPEED AST2600 BMC graphics
    • 1 USB 3.2 Gen2x2 port (Type C, 20Gbps), 5 USB 3.2 Gen2 ports (4 type A + 1 front type C header), 5 USB 3.2 Gen1 ports (3 type A + 2 via header), 2 USB 2.0 ports via header
    • 1 COM port (rear), TPM 2.0 header, 7.1 Channel HD Audio
    • 10 fan header, 4-pin type fan header, 112V-power header for liquid cooling

    Key Applications

    • High-performance computing
    • Data analytics
    • Professional content creation
    • Virtualization
    • Server applications

    Description

    The Supermicro MBD-M12SWA-TF motherboard is designed for high-performance computing. It supports the AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, offering up to 64 cores. With up to 2TB of DDR4 memory, multiple PCI-E slots, and extensive storage options, this motherboard is ideal for demanding applications. It includes advanced networking features, IPMI support, and robust power and thermal management.

    Product Specifications

    Specification Details
    Product SKUs
    MBD-M12SWA-TF
    • M12SWA-TF
    Physical Stats
    Form Factor
    • E-ATX
    Dimensions
    • 12" x 13" (30.48cm x 33.02cm)
    Processor/Cache
    CPU
    • Single AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor
    • Socket sWRX8/SP3
    • Supports CPU TDP up to 280W
    Cores
    • Up to 64 Cores
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, LRDIMM and 3DS R-DIMM Memory
    • RDIMM up to 2TB, UDIMM up to 256GB
    • 8-channel memory bus
    Memory Type
    • ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, LRDIMM and 3DS R-DIMM Memory
    • DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Mhz
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • AMD WRX80
    SATA
    • AMD WRX80 controller for 4 SATA3 (6 Gbps)ports, Software RAID 0,1,5,10
    Network Controllers
    • 10G LAN: Single LAN via Marvell AQC113C 10Gb controller
    • 1GbE LAN: Single LAN via via Intel® i210AT controller (shared with IPMI)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2600 BMC
    Audio
    • ALC4050H + ALC1220 7.1 Channel HD Audio
    Graphics
    • ASPEED AST2600 BMC
    • VGA connector is dedicated for IPMI
    Input / Output
    SATA
    • 4 SATA3 (6 Gbps) ports
    LAN
    • 1 RJ45 10GBase-T LAN port
    • 1 RJ45 GbE LAN port (shared with IPMI)
    USB
    • 1 USB 3.2 Gen2x2 port (Type C, 20Gbps)
    • 5 USB 3.2 Gen2 ports (4 Type A, 1 Type C header, 10Gbps)
    • 5 USB 3.2 Gen1 ports (3 Type A, 1 via header)
    • 2 USB 2.0 via header
    VGA
    • 1 VGA port (dedicated for IPMI)
    Others
    • 1 COM port (rear)
    • 1 TPM 2.0 header
    Expansion Slots
    PCI-Express
    • 6 PCI-E 4.0 x16 slots
    M.2
    • Interface: 4 PCI-E 4.0 x4
    • Form factor: 2280, 22110
    • Key: M-key
    • Software RAID 0,1,5,10 support
    U.2
    • Interface: 2 U.2 Sockets
    • Software RAID 0,1 support
    Chassis ( Optimized for M12SWA-TF )
    Tower/4U Rackmountable
    • SC743AC-1K26B-SQ
    • SC745BAC-R1K23B
    • SC747BTQ-R2K04B
    Tower/5U Rackmountable
    • SCGS7A-2000B
    Server(s) (with M12SWA-TF)
    Model(s)
    • AS -5014A-TT
    System BIOS
    BIOS Type
    • AMI 256Mb Flash EEPROM
    Management
    Software
    • Super Doctor 5
    • Watch Dog
    • SUM
    • IPMI , KVM with shared LAN
    Power Configurations
    • ACPI Power Management
    • Power button override mechanism
    • Keyboard wakeup from S5
    • S3/S4
    PC Health Monitoring
    CPU
    • Monitors CPU Core Voltages, +3.3V, +12V, +3.3Vstb, +5Vstb, Vcore, Vmem
    • Supports system management utility
    FAN
    • Up to 10 4-pin fan headers
    • Status monitor for speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU Thermal Trip Support
    • I²C Temperature Sensing Logic
    LED
    • CPU / System Overheat LED
    Other Features
    • Chassis Intrusion Detection
    • Chassis Intrusion Header
    Operating Environment / Compliance
    Environmental Specifications
    • Operating Temperature:0°C to 50°C (32°F to 122°F)
    • Non-operating Temperature:-5°C to 55°C (23°F to 131°F)
    • FCC class B

    Optional Part List

    Part Number Quantity Description
    Part NumberQtyDescription
    TPM security module
    AOM-TPM-9655V-TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
