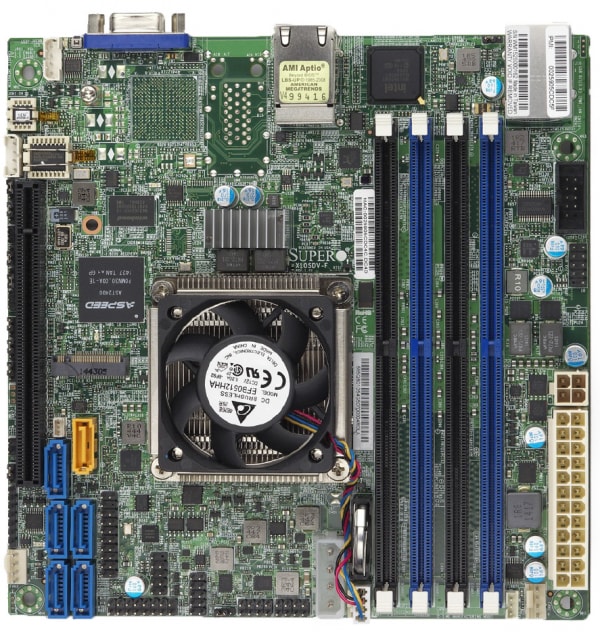

MBD-X10SDV-8C+-LN2F-BULK

MBD-X10SDV-8C+-LN2F-B
https://safeconsulting.no/web/image/product.template/10102/image_1920?unique=daeccc6

kr 10 539,06 10539.06 NOK kr 10 539,06

kr 10 539,06

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X10SDV-8C+-LN2F-B is a high-performance Mini-ITX motherboard featuring an Intel® Xeon® processor D-1541. This product supports up to 128GB of ECC memory, making it ideal for demanding server applications.

    Key Features

    • Intel® Xeon® processor D-1541, Single socket FCBGA 1667, 8-Core, 45W
    • System on Chip
    • Up to 128GB ECC RDIMM DDR4 2400MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
    • 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
    • 2 GbE LAN ports
    • 6 SATA3 (6Gbps) ports via SoC
    • 2 USB 3.0 ports (rear) 4 USB 2.0 ports (via headers)
    • 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers
    • 12V DC Input and ATX Power Source

    Key Applications

    • High-performance servers
    • Network appliances
    • Data centers
    • Embedded systems
    • Virtualization hosts

    Description

    The Supermicro MBD-X10SDV-8C+-LN2F-B motherboard offers a compact Mini-ITX form factor while providing robust features such as an Intel® Xeon® processor D-1541, dual GbE LAN ports, and multiple expansion options including PCI-E and M.2 slots. It also supports up to 128GB ECC RDIMM DDR4 memory and includes multiple USB, SATA, and LAN connections for high versatility in a variety of applications. Advanced system management is supported via IPMI 2.0.

    Product Specifications

    Specification Details
    Product SKUs
    MBD-X10SDV-8C+-LN2F
    • X10SDV-8C+-LN2F
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimensions
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor/Cache
    CPU
    • Intel® Xeon® Processor D-1541.
    • Single Socket FCBGA1667 supported, CPU TDP support 45W
    Cores / Cache
    • 8 cores, 16 threads / 12MB cache
    System Memory
    Memory Capacity
    • Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
    Memory Type
    • 2400/2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 6 SATA3 (6 Gbps) ports;
    • RSTe, Intel Raid 0,1,5,10
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I350-AM2Single LAN with Virtual Machine Device Queues reduce I/O overheadSingle LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
    Graphics
    • Aspeed AST2400 BMC
    Input / Output
    SATA
    • 6 SATA3 (6Gbps) port
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 2.0 ports (4 headers, Type A))
    • 2 USB 3.0 ports (2 rear)
    Video Output
    • 1 VGA port
    Serial Port / Header
    • 1 COM Port (1 header)
    TPM
    • TPM Header
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x16
    M.2
    • 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280
    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS
    BIOS Features
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • RTC (Real Time Clock) Wakeup
    • SMBIOS 2.8
    • UEFI 2.4
    Management
    Software
    • Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
    Power Configurations
    • ACPI Power Management
    • CPU Fan auto-off in sleep mode
    • Power-on mode for AC power recovery
    PC Health Monitoring
    Voltage
    • +1.8V, +12V, +3.3V, +5V, 4 fans with tachometer monitoring, Chassis intrusion header, Memory, Memory Voltages, Monitors for CPU Cores, Supports system management utility, System level control, System temperature
    FAN
    • 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors
    Temperature
    • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
    LED
    • CPU / System Overheat LED
    Other Features
    • 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Hyper-Speed Technology hardware acceleration, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL
    Operating Environment
    Operating Temperature Range
    • 0°C ~ 60°C (32°F ~ 140°F)
    Non-Operating Temperature Range
    • -20°C ~ 60°C (-4°F ~ 140°F)
    Operating Relative Humidity Range
    • 10% ~ 85% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    Motherboard
    MBD-X10SDV-8C+-LN2F1X10SDV-8C+-LN2F Motherboard
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00084-0N1STD I/O SHIELD

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00085-0B11U I/O Shield for X10SDV-F/TLN4F in CSE-510/505/504
    MCP-260-00079-0N11U I/O shield for X10SDV-F/TLN4F in SC813/SC512 chassis
