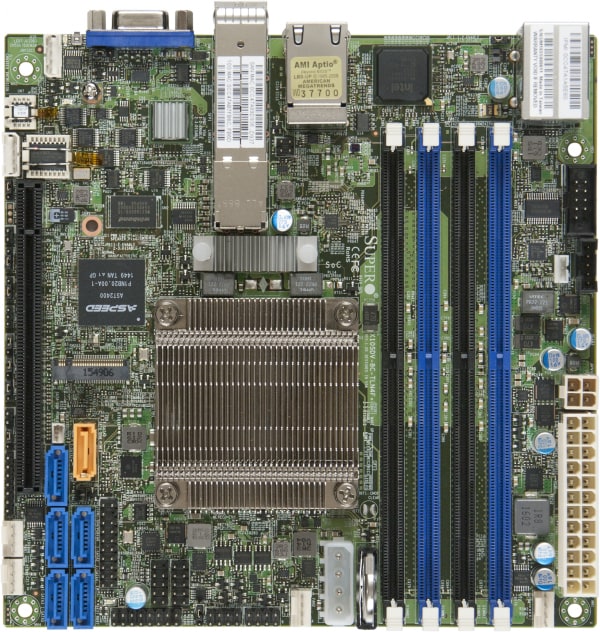

MBD-X10SDV-8C-TLN4F+-BULK

MBD-X10SDV-8C-TLN4F+-B
https://safeconsulting.no/web/image/product.template/10101/image_1920?unique=ba3907f

kr 10 356,61 10356.61 NOK kr 10 356,61

kr 10 356,61

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X10SDV-8C-TLN4F+ is equipped with the Intel Xeon Processor D-1537, featuring 8 cores, 16 threads, and a 35W TDP. This Mini-ITX motherboard supports up to 128GB ECC RDIMM DDR4 memory and offers robust I/O options, including dual 10G SFP+ and dual GbE LAN ports.

    Key Features

    • Intel® Xeon® processor D-1537, Single socket FCBGA 1667; 8-Core, 16 Threads, 35W
    • System on Chip
    • Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
    • 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
    • 2 10G SFP+ and 2 GbE LAN ports
    • 6 SATA3 (6Gbps) ports via SoC
    • 2 USB 3.0 ports (rear) 2 USB 2.0 ports (via headers)
    • 1 SuperDOM, 1x COM, TPM header, GPIO and SMbus headers
    • 12V DC Input and ATX Power Source

    Key Applications

    • Server
    • Embedded systems
    • Network appliances
    • Storage solutions
    • IoT applications
    • Data centers

    Description

    The Supermicro MBD-X10SDV-8C-TLN4F+ motherboard provides an exceptional balance of performance and compact form factor. Leveraging Intel Xeon Processor D-1537, this single socket FCBGA 1667 motherboard boasts 8 cores and 16 threads, perfect for demanding applications. With support for up to 128GB DDR4 memory, extensive connectivity options like dual 10G SFP+ LAN and dual GbE LAN ports, and features such as IPMI 2.0 for remote management, this board is engineered to handle a wide range of server and embedded applications.

    Product Specifications

    Specification Details
    Product SKUs
    MBD-X10SDV-8C-TLN4F+
    • X10SDV-8C-TLN4F+
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimensions
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor/Cache
    CPU
    • Intel® Xeon® Processor D-1537.
    • Socket FCBGA1667 supported, CPU TDP support 35W
    Cores / Cache
    • 8 cores, 16 threads / 12MB cache
    System Memory
    Memory Capacity
    • Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
    Memory Type
    • 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • RSTe
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Network Controllers
    • Dual LAN with 10G SFP+ LAN via SoCDual LAN with 1GbE LAN via Intel® i350-AM2Single LAN with Virtual Machine Device Queues reduce I/O overheadSingle LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputSingle LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
    Graphics
    • Aspeed AST2400 BMC
    Input / Output
    SATA
    • 6 SATA3 (6Gbps) port
    LAN
    • 2 10G SFP+ LAN ports
    • 2 1GbE LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 2.0 ports (2 headers, Type A))
    • 2 USB 3.0 ports (2 rear)
    Video Output
    • 1 VGA port
    Serial Port / Header
    • 1 COM Port (1 header)
    TPM
    • TPM Header
    Others
    • GPIO and SMbus headers
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x16
    M.2
    • M.2 Interface: 1 SATA/PCI-E 3.0 x4
    • Form Factor: 2242, 2280
    • Key: M-Key
    • Support SATA devices
    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS
    BIOS Features
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • RTC (Real Time Clock) Wakeup
    • SMBIOS 2.8
    • UEFI 2.4
    Management
    Software
    • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
    System Management Software
    • IPMIView for Linux/Windows
    • IPMICFG
    • SUM
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management
    • Main Switch Override Mechanism
    • Power-on mode for AC power recovery
    PC Health Monitoring
    Voltage
    • +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, System level control
    FAN
    • 4x 4-pin fan headers (up to 4 fans), Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control
    Temperature
    • CPU thermal trip support, I2C temperature sensing logic, Monitoring for CPU and chassis environment, PECI
    LED
    • CPU / System Overheat LED
    Other Features
    • 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS
    Operating Environment
    Operating Temperature Range
    • 0°C ~ 60°C (32°F ~ 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% ~ 85% (non-condensing)
    Non-Operating Relative Humidity Range
    • 10% ~ 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    Motherboard
    MBD-X10SDV-8C-TLN4F+1X10SDV-8C-TLN4F+ Motherboard
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00098-0N1STD I/O SHIELD

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00100-0B11U I/O Shield for X10SDV-8/12/16C-TLN4F+ in CSE-510/505/504
    MCP-260-00099-0N11U I/O shield for X10SDV-8/12/16C-TLN4F+ in SC813/SC514/SC515
