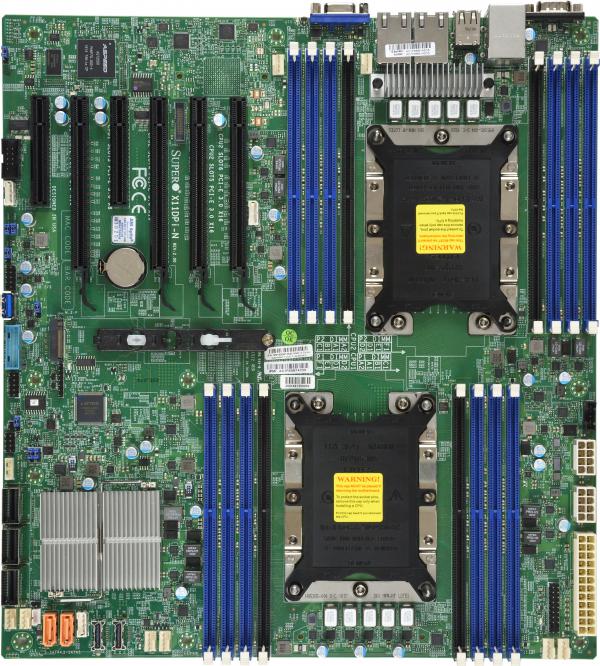

X11DPi 10G LAN + NVMe + Omnipath Support-BULK

MBD-X11DPI-NT-B
https://safeconsulting.no/web/image/product.template/9866/image_1920?unique=5a19258

kr 7 484,72 7484.72 NOK kr 7 484,72

kr 7 484,72

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11DPI-NT-B is designed to optimize performance and reliability for data centers, with support for 2nd Gen Intel Xeon Scalable Processors, dual sockets, extensive memory capacity, and a wide range of I/O and expansion options.

    Key Features

    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable ProcessorsDual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
    • Intel® C622
    • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHzOr 2TB Intel© PMem, DDR4-2666MHz, in 16 DIMM slots;Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
    • 4 PCIe 3.0 x16,2 PCIe 3.0 x8,2 PCIe 3.0 NVMe x4 Internal Port(s)M.2 Interface:PCIe 3.0 x4M.2 Form Factor:2260, 2280, 22110M.2 Key:M-Key
    • Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with 10GBase-T with Intel® X722 + X557
    • 1 VGA port

    Key Applications

    • Data centers
    • High-performance computing
    • Enterprise servers
    • Cloud infrastructure
    • Virtualization
    • AI and machine learning
    • Database management
    • Large-scale storage solutions

    Description

    The Supermicro MBD-X11DPI-NT-B motherboard offers unparalleled performance for demanding applications. It supports 2nd Gen Intel Xeon Scalable Processors, features dual sockets, and has 16 DIMM slots for up to 4TB of memory. With a robust Intel C622 chipset, multiple PCIe slots, and abundant SATA ports, this motherboard ensures scalability and reliability. Ideal for data centers, it provides advanced health monitoring, diverse network options, and comprehensive management tools ensuring seamless operation.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11DPI-NT
    Physical Stats
    Form Factor
    • E-ATX
    Dimension
    • 12" x 13" (30.48cm x 33.02cm)
    Processor
    CPU
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
    Core
    • Up to 28 cores
    Note
    • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 2TB Intel® Optane™ Persistent Memory 100 Series, DDR4-2666MT/s
    • Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
    • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
    Memory Type
    • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • LRDIMM: 128GB
    • RDIMM: 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C622
    SATA
    • Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with 10GBase-T with Intel® X722 + X557
    Input / Output
    SATA
    • 14 SATA3 (6Gbps) port(s)
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 2 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 4 PCIe 3.0 x16,
    • 2 PCIe 3.0 x8
    M.2
    • M.2 Interface: PCIe 3.0 x4
    • Form Factor: 22110, 2280, 2260
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    PC Health Monitoring
    Voltage
    • Monitors CPU voltages, 3.3V standby, +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • Power LED
    • BMC/IPMI Heartbeat LED
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • PECI
    FAN
    • 8x 4-pin fan headers (up to 8 fans)
    • PWM fan speed control
    Other Features
    • UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, SDDC, NCSI header
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O SHIELD
    Retail Package
    I/O Shield
    MCP-260-00042-0N1-
    Quick Reference Guide
    MNL-1773-QRG1IPASS to 4 SATA cable

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670V-S-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V-S-SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
