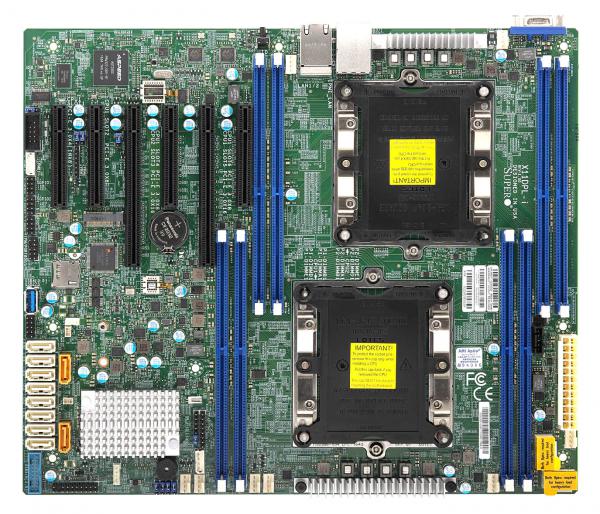

X11DPL-i Dual Xeon Scalable Processors, 8 DIMM, ATX MB, RoHS

MBD-X11DPL-I-B
https://safeconsulting.no/web/image/product.template/9872/image_1920?unique=5a19258

kr 5 553,18 5553.18 NOK kr 5 553,18

kr 5 553,18

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11DPL-I-B motherboard supports 2nd Gen Intel® Xeon® Scalable Processors, offering robust performance and advanced features for enterprise-level applications. This dual socket LGA-3647 board is equipped with 8 DIMM slots supporting up to 2TB of ECC DDR4 memory and integrates a wide range of connectivity options including multiple PCIe slots, SATA ports, and dual Gigabit Ethernet LAN.

    Key Features

    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 140W TDP, 2 UPI up to 10.4 GT/s
    • Intel® C621
    • Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
    • 2 PCIe 3.0 x16,3 PCIe 3.0 x8,1 PCIe 3.0 x4 (in x8 slot)M.2 Interface:1 SATA/PCIe 3.0 x4M.2 Form Factor:2260, 2280M.2 Key:M-Key
    • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
    • 1 VGA port

    Key Applications

    • Data centers
    • High-performance computing
    • Enterprise servers
    • Virtualization
    • Cloud computing
    • Database management

    Description

    Supermicro's MBD-X11DPL-I-B motherboard is designed to meet the requirements of modern data centers and high-performance computing applications. It supports up to two Intel® Xeon® Scalable Processors, with advanced cooling and power management features. The board includes extensive connectivity options such as 10 SATA3 ports for RAID configurations, multiple PCIe slots, an M.2 slot, and dual GbE LAN ports. With comprehensive system management capabilities and health monitoring, this motherboard ensures reliable and efficient operation in demanding environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11DPL-I
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12.076" x 10.15" (30.67cm x 25.78cm)
    Processor
    CPU
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 140W TDP, Dual UPI up to 10.4 GT/s
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s
    Memory Type
    • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • LRDIMM: 128GB
    • RDIMM: 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C621
    SATA
    • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 2 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 2 PCIe 3.0 x16,
    • 3 PCIe 3.0 x8,
    • 1 PCIe 3.0 x4 (in x8 slot)
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x4
    • Form Factor: 2280, 2260
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5, NMI,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    System Management Software
    • IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    Voltage
    • Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • CPU thermal trip support
    • PECI
    FAN
    • 8x 4-pin fan headers (up to 8 fans)
    • PWM fan speed control
    • Overheat LED indication
    Other Features
    • UID, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, SDDC
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L2SATA CABLE 61CM FLAT S-S PBF
    I/O Shield
    MCP-260-00110-0N1Standard I/O Shield for X11DPL-i with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L6SATA CABLE 61CM FLAT S-S PBF
    I/O Shield
    MCP-260-00110-0N1Standard I/O Shield for X11DPL-i with EMI Gasket

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00111-0N-1U I/O Shield for X11DPL-i with EMI Gasket
    TPM security module (optional, not included
    AOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670V-S-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
