MBD-X11SAE-BULK

MBD-X11SAE-B
https://safeconsulting.no/web/image/product.template/9885/image_1920?unique=5a19258

kr 3 062,51 3062.51 NOK kr 3 062,51

kr 3 062,51

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

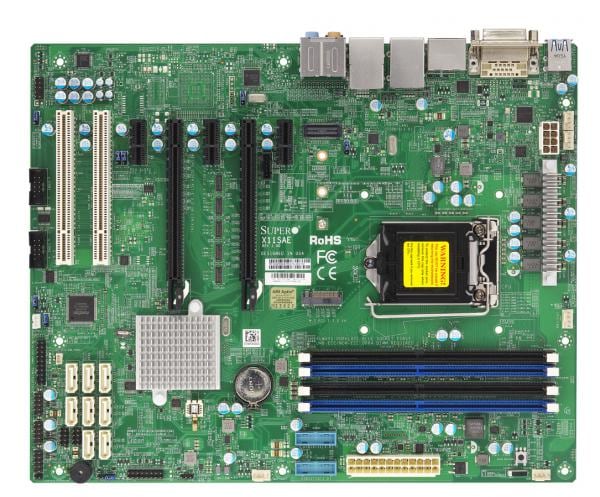

    The Supermicro MBD-X11SAE-B motherboard offers robust performance with a single socket H4 (LGA 1151) supporting Intel Xeon processor E3-1200 v5/v6, Intel 6th/7th Gen. Core i7/i5/i3 series, Intel Celeron, and Intel Pentium. It includes the Intel C236 chipset, up to 64GB DDR4 memory, and various PCIe and USB options for extensive expandability.

    Key Features

    • Single socket H4 (LGA 1151) supportsIntel® Xeon® processor E3-1200 v5/v6,Intel® 6th/7th Gen. Core™ i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
    • Intel® C236 chipset
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • 2 PCIe 3.0 x16 (run at 16/NA or 8/8), 3 PCIe 3.0 x1, and 2 5V PCI 32-bit slots
    • 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280)
    • Single GbE LAN with Intel® i210-AT,Single GbE LAN with Intel® i219LM
    • 6 USB 3.0 (2 rear + 4 via header(s))8 USB 2.0 (2 rear + 6 via header(s))2 USB 3.1 (10Gbps, rear)
    • I/O: 2 COM, TPM header

    Key Applications

    • Servers
    • Workstations
    • Small Business Computing
    • High-Performance Computing
    • Data Centers
    • Multimedia Systems

    Description

    The Supermicro MBD-X11SAE-B is a high-performance motherboard designed for various computing needs. It supports Intel Xeon processor E3-1200 v6/v5 series, Intel 6th/7th Gen. Core i3, i5, and i7 series, Intel Celeron, and Intel Pentium processors through its LGA 1151 socket. Enhanced with the Intel C236 chipset, this motherboard supports up to 64GB DDR4 memory. It also boasts 2 PCIe 3.0 x16 slots, 6 USB 3.0 ports, 8 USB 2.0 ports, dual GbE LAN, and extensive SATA storage options, making it an ideal choice for versatile, high-demand computing applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SAE
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12" x 9.6" (30.48cm x 24.38cm)
    Processor
    CPU
    • Intel® Xeon® processor E3-1200 v6/v5, Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    • A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3
    Note
    • BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C236
    SATA
    • Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • + 1 PCIe M.2(PCIe x4, 2242/2260/2280)(No Raid Support)
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    USB
    • 8 USB 2.0 port(s) (6 via header; 2 rear Type A)
    • 6 USB 3.2 Gen 1x1 port(s) (2 rear Type A; 4 via header)
    • 2 USB 3.2 Gen 2x1 port(s) (2 rear Type A)
    • 2 USB 3.1 Gen 2 ports (2 Rear)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
    Serial Port
    • 2 COM Port(s) (2 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 2 PCIe 3.0 x16,
    • 3 PCIe 3.0 x1,
    • ***2 PCIe x16 slots are running at x16/NA or x8/x8 ***
    • 2 PCI,
    M.2
    • M.2 Interface: 1 PCIe 3.0 x4
    • Form Factor: 2242/2260/2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 3.0
    • UEFI 2.3.1
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • SuperDoctor® 5, AMT, vPro, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, Keyboard Wakeup from Soft-Off, CPU Fan auto-off in sleep mode
    PC Health Monitoring
    Voltage
    • VBAT, Monitors CPU voltages, Chassis intrusion header, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • Suspend static indicator LED
    • CPU / System Overheat LED
    Temperature
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    • I2C temperature sensing logic
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, 8-pin 12v DC power connector, Intel Smart Response Technology
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00063-1N1X11SAE I/O Shield
    SATA cable
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00063-1N1X11SAE I/O Shield
    Quick Reference Guide
    MNL-1820-QRG1X11SAE Quick Reference Guide
    SATA cable
    CBL-0044L657.5CM SATA FLAT S-S PBF
