MBD-X11SBA-F-SINGLE

MBD-X11SBA-F-O
https://safeconsulting.no/web/image/product.template/9898/image_1920?unique=5a19258

kr 2 770,24 2770.2400000000002 NOK kr 2 770,24

kr 2 770,24

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

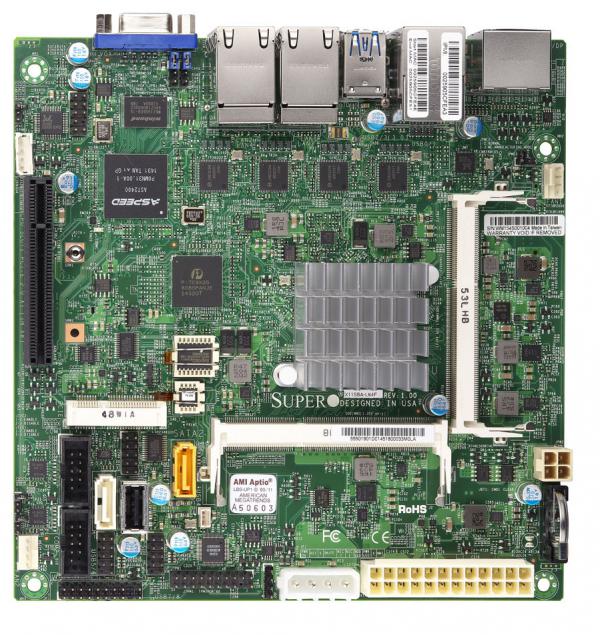

    The Supermicro MBD-X11SBA-F-O motherboard offers a single socket FCBGA1170 supported Intel® Pentium™ Processor N3710, with support for up to 8GB of non-ECC DDR3 memory. Designed in a Mini-ITX form factor, this motherboard includes dual GbE LAN with Intel® i210-AT, HDMI, DisplayPort, VGA port for BMC, and extensive USB connectivity including USB 3.0 and USB 2.0 ports.

    Key Features

    • Intel® Pentium™ Processor N3710., Single Socket FCBGA1170 supported, CPU TDP support 6W
    • Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets
    • 1 PCIe 2.0 x1 (in x8),1 Mini-PCIe (mSATA support)
    • Dual GbE LAN with Intel® i210-AT
    • Supports 12V DC power input
    • System-on-Chip
    • 1 HDMI, 1 DP, Intel HD Graphics,VGA port for BMC
    • 2 USB 3.0 ports (2 rear), 7 USB 2.0 (2 rear, 4 via header(s), 1 Type A)
    • I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
    • IPMI 2.0 with dedicated Port and KVM

    Key Applications

    • Compact embedded systems
    • Small form factor servers
    • Industrial PCs
    • Networking appliances

    Description

    The Supermicro MBD-X11SBA-F-O Mini-ITX motherboard is designed to offer powerful performance for small form factor systems. It features an Intel® Pentium™ Processor N3710 supporting up to 6W TDP, and can handle up to 8GB of non-ECC DDR3 SO-DIMM memory at 1600MHz. The motherboard boasts a wide range of I/O options, including dual RJ45 Gigabit Ethernet, HDMI, DisplayPort, VGA port for BMC, multiple USB ports, and SATA3 connectivity. The onboard IPMI 2.0 with KVM-over-LAN ensures seamless remote management. Additional features include system health monitoring, TPM header, PCIe and Mini-PCIe slots, and comprehensive BIOS support.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SBA-F
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Pentium™ Processor N3710
    • Single Socket FCBGA-1170 supported, CPU TDP supports Up to 6W TDP
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1600MT/s
    Memory Type
    • 1600/1333/1066 MT/s non-ECC DDR3 SODIMM Unbuffered 204-pin gold-plated DIMMs
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 2 SATA3 (6 Gbps) ports
    IPMI
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    • 1 SoC port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    SATA
    • 2 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 7 USB 2.0 port(s) (4 via header; 2 rear; 1 Type A)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
    Serial Port
    • 2 COM Port(s) (2 header)
    TPM
    • 1 TPM header
    Expansion Slots
    PCIe
    • 1 PCIe 2.0 x1 (in x8 slot)
    • 1 Mini-PCIe with mSATA support
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • Plug and Play (PnP)
    • ACPI 5.0
    • UEFI 2.3.1
    • SMBIOS 2.7.1
    • DMI 2.3
    • USB Keyboard support
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • SuperDoctor® 5, NMI, KVM with dedicated LAN,IPMI2.0, Watchdog
    System Management Software
    • SuperDoctor 5, IPMIView for Linux/Windows
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V
    LED
    • Standby alert LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 2x 4-pin fan headers (up to 2 fans)
    • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication
    Other Features
    • WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L157.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1Standard I/O Shield for X10SBA with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1Standard I/O Shield for X10SBA with EMI Gasket
    QRG
    MNL-1794-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00068-0B-1U I/O Shield for X10SBA with EMI Gasket in CSE-510/505/504
    mSATA 128GB
    SSD-DM128-SMCMVN1-Supermicro mSATA 128GB MLC
    mSATA 64GB
    SSD-DM064-PHI-Supermicro mSATA 64GB MLC
    TPM security module
    AOM-TPM-9655VAOM-TPM-9655H-TPM Module with Infineon 9655, RoHS/REACH,PBF;
