SKT LGA1151,4x DDR4-2666MHz ECC UDIMM,C242 PCH,3x PCI-E

Name: SKT LGA1151,4x DDR4-2666MHz ECC UDIMM,C242 PCH,3x PCI-E
Brand: supermicro
SKU: MBD-X11SCL-F-B
Price: 2643.16 NOK
Availability: BackOrder

SKU:

MBD-X11SCL-F-B

kr 2 643,16 2643.16 NOK kr 2 643,16

kr 2 643,16

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

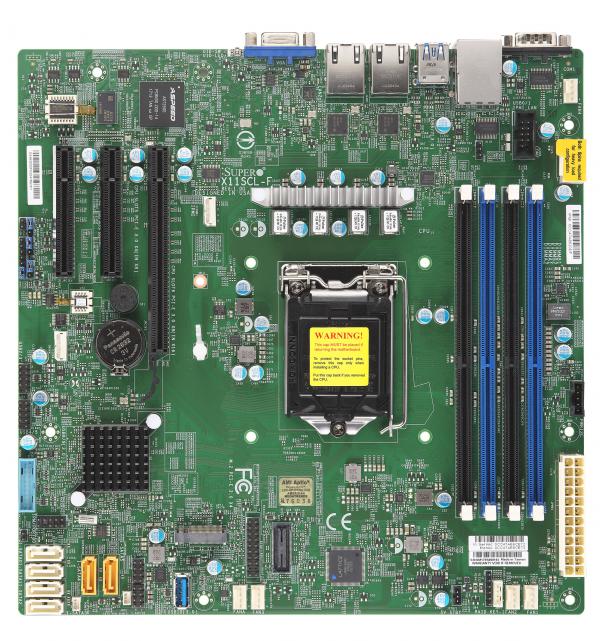

The Supermicro MBD-X11SCL-F-B motherboard supports Intel's 8th/9th Generation Core™ i3/Pentium®/Celeron® processors and Xeon® E-2100/E-2200 processors. Designed for high performance, it features 4 DIMM slots for up to 128GB of DDR4 ECC UDIMM, multiple PCIe slots, 6 SATA3 ports with RAID, dual GbE LAN, and an M.2 connector.

Key Features

8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Intel® C242 chipset
Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
Expansion slots:1 PCIe 3.0 x8 (in x16),2 PCIe 3.0 x4 (in x8)
Dual GbE LAN with Intel® i210-AT
M.2 NGFF connector
6 SATA3 (6Gbps) ports;RAID 0, 1, 5, 10
I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header
Support up to 6 Cores

Key Applications

Versatile server solutions
High-performance computing
Small business servers
Workstations
Networking solutions

Description

The Supermicro MBD-X11SCL-F-B is designed to deliver exceptional performance and reliability for various applications. It supports a wide range of Intel® processors including the Xeon® E-2100/E-2200 series and 8th/9th Generation Core™ i3, Pentium®, and Celeron® processors. With up to 128GB DDR4 ECC UDIMM memory across 4 DIMM slots, this motherboard ensures efficient multitasking and robust performance. Featuring multiple PCIe 3.0 slots, an M.2 connector, and 6 SATA3 (6Gbps) ports with RAID 0, 1, 5, and 10 support, it offers versatile expansion and storage capabilities. The dual GbE LAN with Intel® i210-AT ensures high-speed and reliable network connectivity. Additionally, it includes a variety of I/O ports and headers, making it suitable for both personal and professional use cases.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X11SCL-F
Physical Stats
Form Factor	microATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU	8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
Core	Up to 6 cores, 12 threads
Note	BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
System Memory
Memory Capacity	4 DIMM slots Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
Memory Type	2667/2400/2133 MT/s SDRAM 72-bit,
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C242
SATA	Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Dual LAN with 1GbE with Intel® I210
Input / Output
USB	6 USB 2.0 port(s) (4 via header; 2 rear) 5 USB 3.1 Gen1 port(s) (2 via header; 1 type A; 2 rear type A)
Video Output	1 VGA port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
DOM	2 SATADOM(Disk on Module) power connector support
TPM	1 TPM Header
Expansion Slots
PCIe	1 PCIe 3.0 x8 (in x16 slot), 2 PCIe 3.0 x4 (in x8 slot)
M.2	M.2 Interface: 1 PCIe 3.0 x4 Form Factor: 2280/22110 Key: M-Key
System BIOS
BIOS Type	256MB UEFI
BIOS Features	ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0
Management
Software	SuperDoctor® 5,SUM, KVM with dedicated LAN,SSM,IPMI2.0
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	5x 4-pin fan headers (up to 5 fans) Thermal control tachometer fan connectors PWM fan speed control 5 fans with tachometer status monitoring Overheat LED indication
Other Features	WOL, UID, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00042-0N	1	STD I/O Shield for X11SCL-F with EMI Gasket
Retail Package
I/O Cables
CBL-0044L	6	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00042-0N	1	STD I/O Shield for X11SCL-F with EMI Gasket
QRG
MNL-2063-QRG	1	Motherboard Quick Reference Guide

Optional Part List

Part Number	Quantity	Description
TPM security module
AOM-TPM-9670V	1	SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9671V	1	SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670H	1	SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9671H	1	SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
