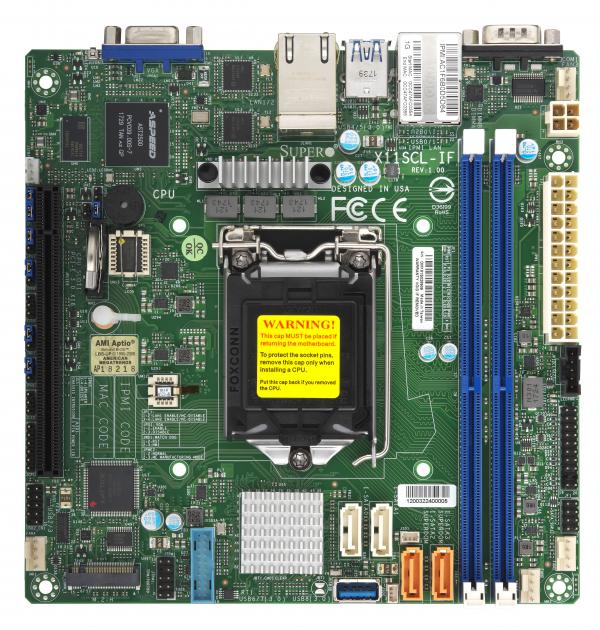

  2. X11SCL-IF,SKT LGA1151,2x DDR4-2666MHz ECC UDIMM,C242 PCH

X11SCL-IF,SKT LGA1151,2x DDR4-2666MHz ECC UDIMM,C242 PCH

MBD-X11SCL-IF-B
https://safeconsulting.no/web/image/product.template/9915/image_1920?unique=5a19258

kr 2 427,13 2427.13 NOK kr 2 427,13

kr 2 427,13

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SCL-IF-B is a versatile Mini-ITX motherboard engineered for performance with support for Intel's 8th/9th Generation Core, Pentium, Celeron, and Xeon processors. It features dual GbE LAN, up to 64GB DDR4 ECC memory, M.2 connectivity, and robust system and health monitoring.

    Key Features

    • 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
    • Intel® C242 chipset
    • Up to 64GB DDR4 2666MHz ECC UDIMM; 2 DIMM slots
    • M.2 Interface:1 SATA/PCIe 3.0 x4Form Factor: 2280Key: M-Key
    • Dual GbE LAN with Intel® i210-AT
    • M.2 NGFF connector
    • 4 SATA3 (6Gbps); RAID 0, 1, 5, 10
    • Support up to 6 Cores

    Key Applications

    • Small business servers
    • Home labs
    • Edge computing
    • Network appliances
    • Industrial automation

    Description

    The Supermicro MBD-X11SCL-IF-B Motherboard combines cutting-edge performance with robust features, including support for Intel 8th and 9th Gen Core i3/Pentium/Celeron processors and Intel Xeon E-2100 and E-2200 series processors in a compact Mini-ITX form factor. With two DIMM slots allowing up to 64GB of DDR4 2666MHz ECC UDIMM, M.2 PCIe 3.0 x4 slot, and an array of I/O ports including dual GbE LAN, the MBD-X11SCL-IF-B offers excellent expandability and connectivity options. Additional features include comprehensive system health monitoring, advanced security TPM modules, and reliable storage solutions with RAID support.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SCL-iF
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • 8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    Core
    • Up to 6 cores, 12 threads
    Note
    • BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 64GB Unbuffered ECC UDIMM, DDR4-2666MT/s
    Memory Type
    • 2667/2400/2133 MT/s SDRAM 72-bit,
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C242
    SATA
    • Intel® C242 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with 1GbE with Intel® I210
    Input / Output
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 7 USB 3.2 Gen2 port(s) (2 via header; 2 rear type A; 2 rear; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 rear)
    DOM
    • 2 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x16 (in x16 slot)
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x4
    • Form Factor: 2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • 256MB UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 2.7
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • UEFI 2.7
    • USB Keyboard support
    • PCI 3.0
    Management
    Software
    • SuperDoctor® 5,SUM, KVM with dedicated LAN,SSM,IPMI2.0, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    • Thermal control tachometer fan connectors
    • PWM fan speed control
    • 4 fans with tachometer monitoring
    • Overheat LED indication
    Other Features
    • WOL, UID, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X11SCL-F with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L457.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X11SSL-F with EMI Gasket
    QRG
    MNL-2088-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
