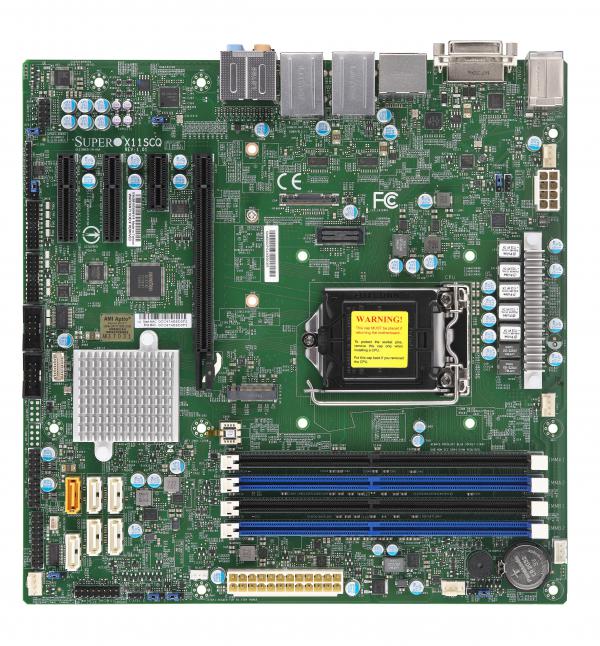

X11SCQ,Micro ATX,Coffelake PCH Q370,LGA1151,1 PCIEx16

SKU: MBD-X11SCQ-O
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/9922/image_1920?unique=f41276e

kr 3 364,06 3364.06 NOK kr 3 364,06 Ekskl. mva

kr 3 364,06 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro MBD-X11SCQ-O motherboard is engineered for high-performance computing, featuring support for 8th/9th Generation Intel Core processors, Intel Q370 chipset, up to 64GB DDR4-2666MHz memory, and multiple PCIe expansion slots. It comes equipped with multiple USB ports, advanced RAID storage options, and robust network connectivity.

    Nøkkelfunksjoner

    • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® ProcessorSingle Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
    • Intel® Q370
    • Single LAN with Intel® Ethernet Controller I210-ATSingle LAN with Intel® PHY I219LM LAN controller
    • Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x16,1 PCIe 3.0 x1,2 PCIe 3.0 x4M.2 Interface:1 PCIe 3.0 x4M.2 Form Factor:2242/2280/22110M.2 Key:M-Key
    • Intel® Q370 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,3 Independent Displays

    Viktige bruksområder

    • Desktop computing
    • Gaming rigs
    • Workstations
    • Media centers
    • Office productivity

    Beskrivelse

    The Supermicro MBD-X11SCQ-O is a versatile uATX motherboard designed for high-demand applications. It supports 8th/9th Generation Intel Core processors with a single Socket LGA-1151, capable of handling CPUs with up to 95W TDP. Featuring the Intel Q370 chipset, this board supports up to 64GB of DDR4-2666MHz RAM across 4 DIMM slots. The board offers comprehensive I/O including 6 USB 2.0 ports, 10 USB 3.2 Gen2 ports, and multiple display outputs with 1 DP, 1 HDMI, 1 DVI-D, and 1 eDP port.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SCQ
    Physical Stats
    Form Factor
    • uATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MT/s
    Memory Type
    • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® Q370
    SATA
    • Intel® Q370 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • 7.1 HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 10 USB 3.2 Gen2 port(s) (2 via header; 2 rear type A; 4 rear; 2 rear type C)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s), 1 eDP (Embedded DisplayPort) port(s)
    Serial Port
    • 6 COM Port(s) (6 header)
    DOM
    • 1 SuperDOM(Disk on Module) port with build power
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x16,
    • 1 PCIe 3.0 x1,
    • 2 PCIe 3.0 x4
    M.2
    • M.2 Interface: 1 PCIe 3.0 x4
    • Form Factor: 2242/2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.1
    • PCI FW 3.0
    • UEFI 2.6
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • SuperDoctor® 5, NMI, AMT, vPro, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, ATX Power connector
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 1.2V (VDIMM), +5V, +3.3V, +12V, Memory Voltages
    LED
    • Power LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    • 4 fans with tachometer monitoring
    Other Features
    • RoHS
    • M.2 NGFF connector
    • Chassis intrusion header
    • ATX Power connector
    • ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Delliste

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00125-0N1Standard I/O Shield for X11SCQ/-L with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L657.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00125-0N1Standard I/O Shield for X11SCQ/-L with EMI Gasket
    QRG
    MNL-2110-QRG1Motherboard Quick Reference Guide

    Valgfrie Opsjoner

    Part Number Quantity Description
    Dual Serial Port Cable for COM3/4 and COM5/6
    CBL-CUSB-0984-20CM Dual Serial Port Cable (Use with COM3/4, COM5/6)
    Single Serial Port Cable for COM1 and COM2
    CBL-0010L-9-Pin 26CM Serial Port Cable (Use with COM1, COM2)
    USB3.1 Cable
    CBL-CUSB-0835-Dual USB3.1 Type A Cable with Bracket
