X11SCV-Q, Mini ITX,Coffeelake PCH Q370,LGA1151,PCIex16,M

• 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® ProcessorSingle Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 65W TDP
• Intel® Q370
• Single LAN with Intel® Ethernet Controller I210-ATSingle LAN with Intel® PHY I219LM LAN controller
• Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots
• 1 PCIe 3.0 x161 M.2 M-Key PCIe 3.0 x4, 2242/22801 M.2 E-Key CNVi/PCIe 3.0 x1, 2230
• Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10X11SCV-Q: Q370 controller for 5SATA3 ports;RAID 0,1,5,10
• 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,3 Independent Displays, HDMI 2.0

• Small Form Factor Systems
• Workstations
• Home Servers

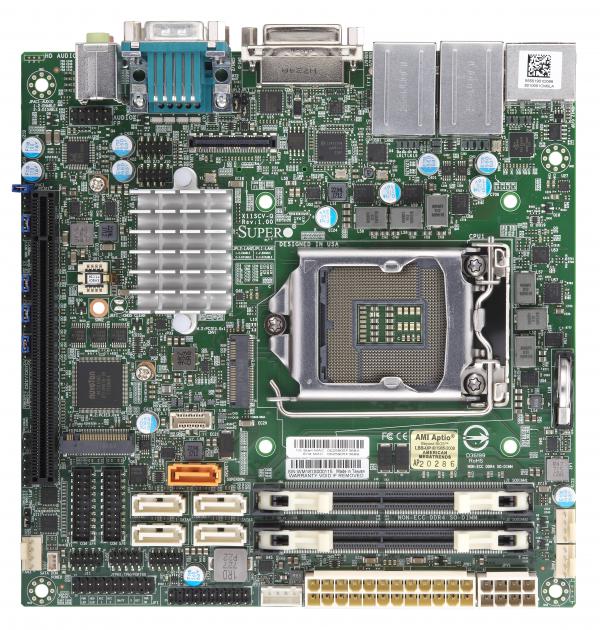

The Supermicro MBD-X11SCV-Q-B is a high-performance Mini-ITX motherboard with support for 8th/9th Gen Intel Core processors, including Intel Core i9, i7, i5, i3, Pentium, and Celeron processors with up to 65W TDP. It features the Intel Q370 chipset and supports up to 64GB of DDR4 2666MHz memory across two DIMM slots. The board includes a variety of connectivity options such as one PCIe 3.0 x16 slot, various M.2 slots, and five SATA3 ports with RAID support. Multimedia options include HDMI 2.0, DP, DVI-D, and eDP ports, allowing for three independent displays. Additionally, it features two Gigabit LAN ports and multiple USB ports for enhanced connectivity and data transfer speeds.
