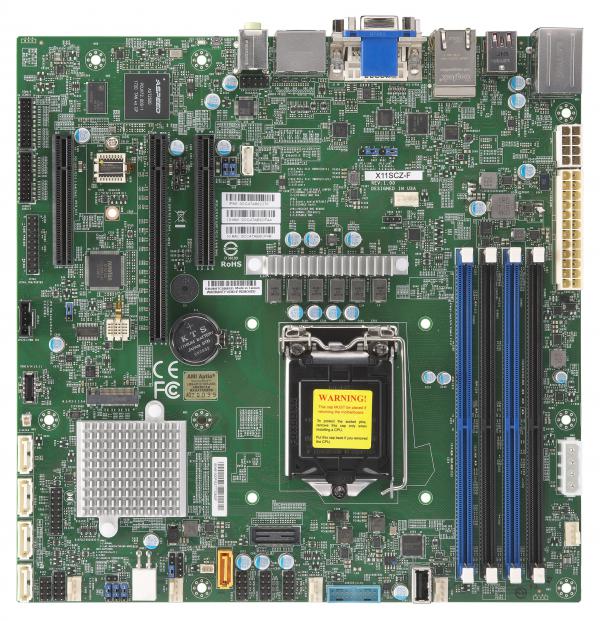

X11SCZ-F,Micro ATX,Coffeelake PCH C246,LGA1151,1 PCIEx4

MBD-X11SCZ-F-B
https://safeconsulting.no/web/image/product.template/9933/image_1920?unique=5a19258

kr 4 015,57 4015.57 NOK kr 4 015,57

kr 4 015,57

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SCZ-F-B is a versatile motherboard that supports the 8th/9th Generation Intel processors, including Intel Xeon E-2100 and E-2200. Ideal for small business servers and high-performance workstations.

    Key Features

    • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
    • Intel® C246
    • Single LAN with Intel® Ethernet Controller I210-ATSingle LAN with Intel® PHY I219LM LAN controller
    • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x16,2 PCIe 3.0 x4 (in x8 slot)1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
    • Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports,3 Independent Displays

    Key Applications

    • Small business servers
    • High-performance workstations
    • Data-intensive applications

    Description

    The Supermicro MBD-X11SCZ-F-B motherboard is designed for 8th/9th Generation Intel Core i9/i7/i5/i3, Pentium, Celeron, and Intel Xeon E-2100/E-2200 processors. It features Intel C246 chipset, single LAN with Intel Ethernet Controller I210-AT, and multiple video outputs including VGA D-Sub, DVI-I, and DP. With support for up to 128GB DDR4 memory across 4 DIMM slots, it accommodates significant workloads and demanding applications. Additionally, it offers various expansion slots, including PCIe 3.0 x16 and two PCIe 3.0 x4 (in x8 slot).

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SCZ-F
    Physical Stats
    Form Factor
    • uATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    • A graphic integrated CPU is required to have onboard video from the DVI and DP ports
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MT/s
    Memory Type
    • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C246
    SATA
    • Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    • 1 ASPEED AST2500 BMC port(s)
    • 3 Independent Displays
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 6 USB 3.1 Gen2 port(s) (2 via header; 3 rear type A; 1 rear type C)
    • 7 USB 2.0 port(s) (6 via header; 1 Type A)
    • 2 USB 3.1 Gen1 port(s) (2 via header)
    Video Output
    • 1 VGA D-Sub Connector port(s), 2 DP (DisplayPort) port(s), 1 DVI - I port(s)
    Serial Port
    • 4 COM Port(s) (4 header)
    DOM
    • 1 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x16,
    • 2 PCIe 3.0 x4 (in x8 slot)
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.1
    • PCI FW 3.0
    • UEFI 2.6
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • SuperDoctor® 5, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • ACPI Power Management, ATX Power connector, +12V DC Power Input
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LED
    • UID/Remote UID
    Temperature
    • Thermal Control for 6 Fan Connectors
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • Fan speed control
    • Dual Cooling Zone
    • 6 fans with tachometer status monitoring
    Other Features
    • UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00126-0N1Standard I/O Shield for X11SCZ with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L557.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00126-0N1Standard I/O Shield for X11SCZ with EMI Gasket
    QRG
    MNL-2086-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00128-0B-1U I/O Shield for X11SCZ with EMC Gasket in SC510 Chassis
    MCP-260-00127-0N-1U I/O Shield for X11SCZ with EMC Gasket in SC813 Chassis
    Serial Port Cable
    CBL-CUSB-0984-Dual Serial Port Breakout Cable 20cm
    USB3.1 Cable
    CBL-CUSB-0835-Dual USB3.1 Type A Cable with Bracket
