  2. X11SDV-16C+-TLN2F,Embedded Xeon-D Mini ITX,16Core,Dual 1

X11SDV-16C+-TLN2F,Embedded Xeon-D Mini ITX,16Core,Dual 1

MBD-X11SDV-16C+-TLN2F-O
https://safeconsulting.no/web/image/product.template/9952/image_1920?unique=5a19258

kr 33 687,58 33687.58 NOK kr 33 687,58

kr 33 687,58

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

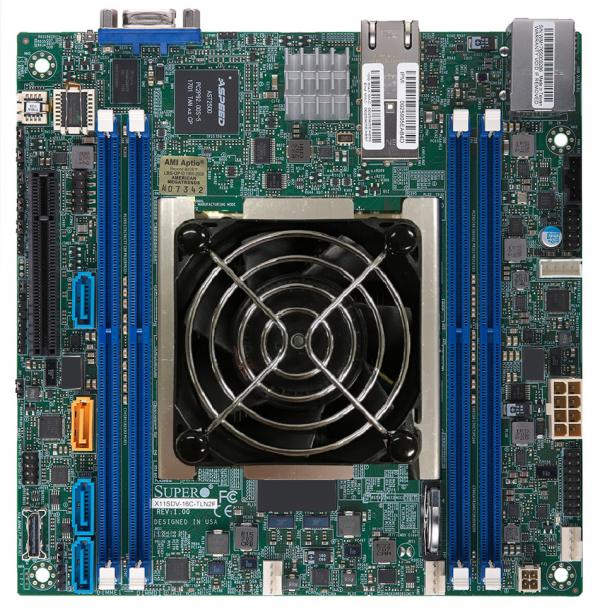

    The Supermicro MBD-X11SDV-16C+-TLN2F-O motherboard harnesses the power of the Intel® Xeon® Processor D-2183IT to deliver exceptional performance in a compact Mini-ITX form factor. With up to 16 cores and 32 threads, this motherboard also features dual 10GBase-T LAN, extensive I/O connectivity, and supports up to 512GB DDR4 ECC memory.

    Key Features

    • Intel® Xeon® Processor D-2183IT,16-Core, 32 Threads, 100W
    • Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2400MHz in 4 DIMM slots
    • 1 PCIe 3.0 x81 PCIe 3.0 x4 NVMe Internal Port via OCuLink
    • Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,104 SATA ports via OCuLink (or PCIe 3.0 x4 for NVMe)
    • Dual LAN with 10GBase-T via Intel® SoC
    • System on Chip
    • 2 USB 3.0 ports (rear)2 USB 2.0 ports (via header)
    • 12V DC or ATX Power Input

    Key Applications

    • Edge Computing
    • Network Appliances
    • Embedded Systems
    • Telecommunications
    • Cloud Storage
    • Industrial Automation
    • IoT Gateways

    Description

    Designed for high performance in space-constrained environments, the Supermicro MBD-X11SDV-16C+-TLN2F-O is powered by the Intel® Xeon® Processor D-2183IT, offering 16 cores and 32 threads of processing power. This Mini-ITX motherboard supports up to 512GB of ECC DDR4 memory and features dual 10GBase-T LAN for high-speed networking. It boasts robust expansion capabilities with PCIe 3.0 slots and versatile I/O options, including USB 3.0 and 2.0 ports, VGA video output, and more. Ideal for edge computing, network appliances, and other applications demanding reliability and performance in a compact form factor.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SDV-16C+-TLN2F
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.75" x 6.75" (17.15cm x 17.15cm)
    Processor
    CPU
    • Intel® Xeon® Processor D-2183IT
    Core
    • Up to 16 cores, 32 threads / 22MB Cache
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 512GB ECC LRDIMM, DDR4-2400MT/s; Up to 256GB ECC RDIMM, DDR4-2400MT/s
    Memory Type
    • 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2400MHz)
    DIMM Sizes
    • LRDIMM: 16GB, 32GB, 64GB, 128GB
    • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with 10Gbase-T
    Input / Output
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    • 2 RJ45 10GBase-T ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s)
    DOM
    • 1 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x8
    • 1 PCIe 3.0 x4 NVMe Internal Port via OCuLink
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.1
    • UEFI 2.6
    • PCI FW 3.2
    Management
    Software
    • SuperDoctor® 5,SUM,SPM, Intel® Node Manager,SSM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • ACPI Power Management, +12V DC Power Input
    PC Health Monitoring
    Voltage
    • VBAT, Supports system management utility, Monitors CPU voltages, 3 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.5V, Memory Voltages
    LED
    • UID/Remote UID
    • Power LED
    • BMC/IPMI Heartbeat LED
    Temperature
    • Thermal Control for 3 Fan Connectors
    FAN
    • 3x 4-pin fan headers (up to 3 fans)
    • Fan speed control
    • Dual Cooling Zone
    • 3 fans with tachometer monitoring
    • Pulse Width Modulated (PWM) fan connectors
    • Support 3-pin fans (w/o speed control)
    Other Features
    • UID, RoHS, Node Manager Support, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    ATX Power Cable
    CBL-PWEX-106316CM ATX Power Signal Cable
    I/O Shield
    MCP-260-00084-0N1Standard I/O Shield for X11SDV-TLN2F
    SATA Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    ATX Power Cable
    CBL-PWEX-106316CM ATX Power Signal Cable
    I/O Shield
    MCP-260-00084-0N1Standard I/O Shield for X11SDV-TLN2F
    QRG
    MNL-2019-QRG1Motherboard Quick Reference Guide
    SATA Cables
    CBL-0044L457.5CM SATA FLAT S-S PBF
    U.2 Cable
    CBL-SAST-0956155CM OCuLink to U.2 Cable with Molex Power Header

    Optional Part List

    Part Number Quantity Description
    OCuLink to 4x SATA Cable
    CBL-SAST-0933-50CM OCuLink to 4x SATA Cable
    Oculink to NVMe + power cable
    CBL-SAST-0955-OcuLink to PCIe, w/ Power, 45CM,
    SATA Power Cable
    CBL-SAST-0886-SATA 15pin Power x2 to 4pin, 40CM
