X11SDV-16C-TP8F,Embedded Flex ATX MBD,Xeon D,12V DC,9.0x

• Intel® Xeon® Processor D-2183IT, CPU TDP support Up to 100W TDP
• Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 4 DIMM slots
• 1 PCIe 3.0 x8,1 PCIe 3.0 x161 Mini-PCIe,2 PCIe 3.0 NVMe x4 Internal Port(s)1 M.2 M-Key SATA/PCIe 3.0 x4, 22801 M.2 B-Key SATA/PCIe 3.0 x2, 3042U.2 Interface: 2 PCIe 3.0 x4
• SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Quad LAN with Intel® Ethernet Controller I350-AM4Dual LAN with 10G SFP+ LAN via SoCDual LAN with 10Gbase-T
• Supports 12V DC power input
• 1 VGA D-Sub Connector port
• System on Chip

• Server applications
• Data centers
• Network appliance
• Storage server
• Cloud computing

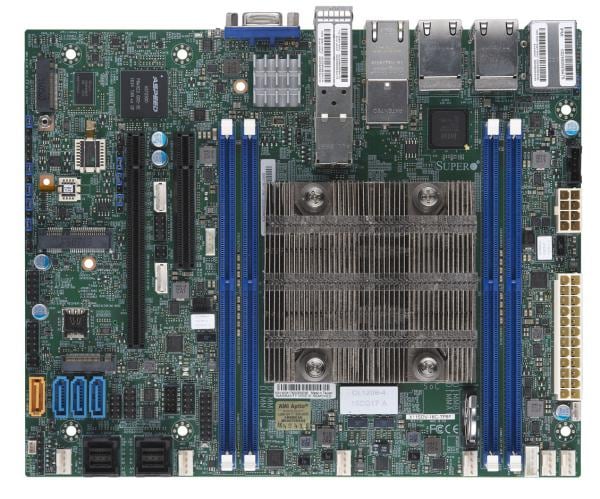

The Supermicro MBD-X11SDV-16C-TP8F-B is a high-performance motherboard designed for server applications. It is powered by an Intel® Xeon® Processor D-2183IT and supports up to 512GB of DDR4 ECC memory. The motherboard features a variety of connectivity options including dual 10G SFP+ LAN, dual 10GBase-T LAN, quad Gigabit LAN ports, and multiple USB ports. It also offers extensive storage options with a SoC controller for 12 SATA3 ports supporting RAID 0, 1, 5, 10. Additional features include PCIe 3.0 slots, M.2 interfaces, and a comprehensive set of management tools such as IPMI 2.0.
