X11SDV-16C-TP8F,Embedded Flex ATX MBD,Xeon D,12V DC,9.0x

• Intel® Xeon® Processor D-2183IT, CPU TDP support Up to 100W TDP
• Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 4 DIMM slots
• 1 PCIe 3.0 x8,1 PCIe 3.0 x161 Mini-PCIe,2 PCIe 3.0 NVMe x4 Internal Port(s)1 M.2 M-Key SATA/PCIe 3.0 x4, 22801 M.2 B-Key SATA/PCIe 3.0 x2, 3042U.2 Interface: 2 PCIe 3.0 x4
• SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Quad LAN with Intel® Ethernet Controller I350-AM4Dual LAN with 10G SFP+ LAN via SoCDual LAN with 10Gbase-T
• Supports 12V DC power input
• 1 VGA D-Sub Connector port
• System on Chip

• High-performance computing
• Data storage solutions
• Enterprise networking
• Server applications

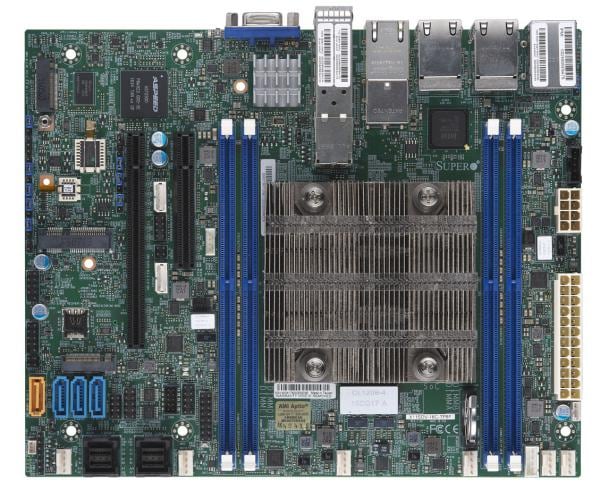

The Supermicro MBD-X11SDV-16C-TP8F-O motherboard is designed for high-performance computing applications. Powered by an Intel Xeon Processor D-2183IT, it supports up to 512GB of DDR4 memory through 4 DIMM slots. The motherboard provides 12 SATA3 ports for storage, with RAID options including 0,1,5,10. Network connectivity options include quad LAN with Intel Ethernet Controller I350-AM4, dual LAN with 10G SFP+, and dual LAN with 10Gbase-T. Additional features include multiple PCIe slots, M.2 interfaces, USB ports, and a VGA D-Sub connector. This motherboard is built to support 12V DC power input and has extensive system management capabilities with ASPEED AST2500 IPMI, ensuring robust and reliable performance.
