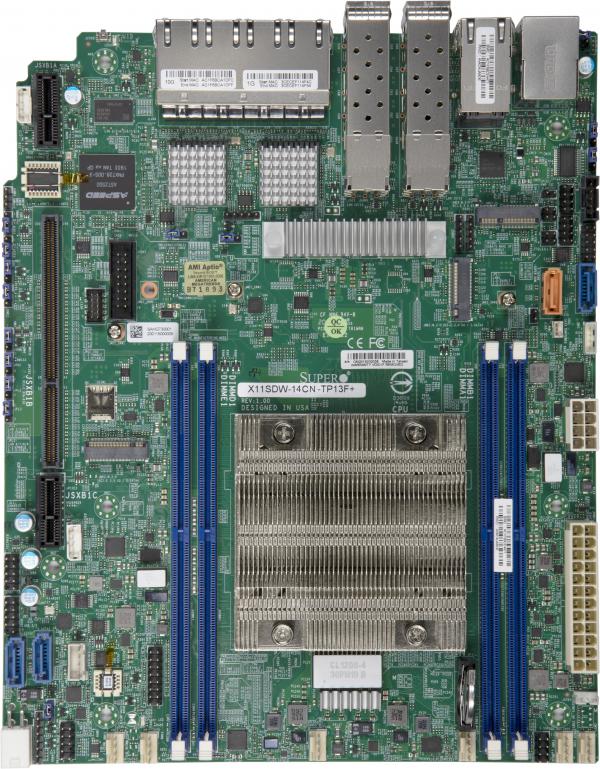

X11SDW-14CN-TP13F+, IntelSKL XeonDSoc,4x DDR4 2400MHz

MBD-X11SDW-14CN-TP13F+-B
https://safeconsulting.no/web/image/product.template/9967/image_1920?unique=5a19258

kr 30 002,41 30002.41 NOK kr 30 002,41

kr 30 002,41

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SDW-14CN-TP13F+ motherboard is designed with Intel® Xeon® Processor D-2177NT, offering up to 14 cores and 28 threads. Supports up to 512GB ECC LRDIMM DDR4 and features robust I/O options including multiple LAN ports, USB, VGA, and more.

    Key Features

    • Intel® Xeon® Processor D-2177NT, Single Socket FCBGA-2518 supported, CPU TDP support 105W TDP
    • Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x32 Left Riser Slot1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/221101 M.2 E-Key PCIe 3.0 x1, 22301 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 2242
    • SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Quad LAN with Intel® Ethernet Controller I350-AM4Quad LAN with 1GbE with Inte® I350-AM4Quad LAN with 10G SFP+ LAN via SoCSingle LAN with 1GbE with Intel® I210Total 13 LAN portsSingle LAN with Realtek RTL8201N PHY (dedicated IPMI)
    • Supports 12V DC power input
    • System on Chip
    • 1 VGA port,Header Only

    Key Applications

    • Data Centers
    • Enterprise Servers
    • Network Appliances
    • Embedded Systems

    Description

    The Supermicro MBD-X11SDW-14CN-TP13F+ is a high-performance motherboard featuring the Intel® Xeon® Processor D-2177NT. It supports up to 512GB ECC LRDIMM DDR4 memory in 4 DIMM slots, ensuring optimal performance for demanding applications. With a comprehensive range of I/O options, including quad LAN ports, multiple USB ports, and VGA output, this motherboard is equipped to handle various networking and peripheral connectivity requirements. Additional features include SATA3 ports with RAID support, and advanced system management capabilities with IPMI v2.0 support.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SDW-14CN-TP13F+
    Physical Stats
    Form Factor
    • Proprietary WIO
    Dimension
    • 8" x 10" (20.32cm x 25.4cm)
    Processor
    CPU
    • Intel® Xeon® Processor D-2177NT
    • Single Socket FCBGA-2518 supported, CPU TDP supports Up to 105W TDP
    Core
    • Up to 14 cores, 28 threads / 19MB Cache
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 512GB ECC LRDIMM, DDR4-2400MT/s; Up to 256GB ECC RDIMM, DDR4-2400MT/s
    Memory Type
    • 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    • Support for Intelligent Platform Management Interface v.2.0
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    • Header Only
    Network Controllers
    • Quad LAN with 1GbE with Intel® I350-AM4
    • Quad LAN with Intel® Ethernet Controller I350-AM4, Total 13 LAN ports
    • Quad LAN with 10G SFP+ LAN via SoC
    • Single LAN with 1GbE with Intel® I210
    • Single LAN with Realtek RTL8201N PHY (dedicated IPMI)
    Input / Output
    SATA
    • 4 SATA3 port(s)
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    • 9 RJ45 Gigabit Ethernet LAN ports
    • 4 10G SFP+ LAN ports
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 2 USB 3.1 Gen1 port(s) (2 rear type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 1 SuperDOM(Disk on Module) port with build power
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x32 Left Riser Slot
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 PCIe 3.0 x1; 1 SATA/PCIe 3.0 x2/USB 3.0
    • Form Factor: 2280/22110, 2230, 2242
    • Key: M-Key, E-Key, B-Key
    System BIOS
    BIOS Type
    • 256MB UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.1
    • UEFI 2.7
    • PCI FW 3.2
    Management
    Software
    • SuperDoctor® 5, NMI,SUM, KVM with dedicated LAN, Intel® Node Manager,IPMI2.0, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, CPU thermal trip support for processor protection
    PC Health Monitoring
    Voltage
    • System temperature, System level control, Supports system management utility, Memory, HT, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, +1.5V, Memory Voltages
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication
    Other Features
    • WOL, UID, System level control, RoHS, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, SDDC
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00152-0n-STD I/O SHIELD
    Retail Package
    I/O Cables
    CBL-0044L457.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00152-0n1STD I/O SHIELD
    Quick Installation Guide
    MNL-2276-QRG1X11SDW Series Quick Installation Guide
    VGA Cable
    CBL-CDAT-0850150CM VGA Cable DB15

    Optional Part List

    Part Number Quantity Description
    Riser Card
    RSC-R1UW-2E1611U LHS WIO Riser card with two PCI-E x16 slots
    AOM-SDW-B16X21RHS WIO Riser card with three PCI-E slots (support X11SDW series only)
    SATA Power Cable
    CBL-PWEX-09821PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
    VGA Cable
    CBL-CDAT-0850150CM VGA Cable DB15
