Skylake-EP(LGA3647) SKT-Pup to 205W TDP+C622,8xDDR4-BULK

Name: Skylake-EP(LGA3647) SKT-Pup to 205W TDP+C622,8xDDR4-BULK
Brand: supermicro
SKU: MBD-X11SPH-NCTF-B
Price: 7484.72 NOK
Availability: BackOrder

SKU:

MBD-X11SPH-NCTF-B

kr 7 484,72 7484.72 NOK kr 7 484,72

kr 7 484,72

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

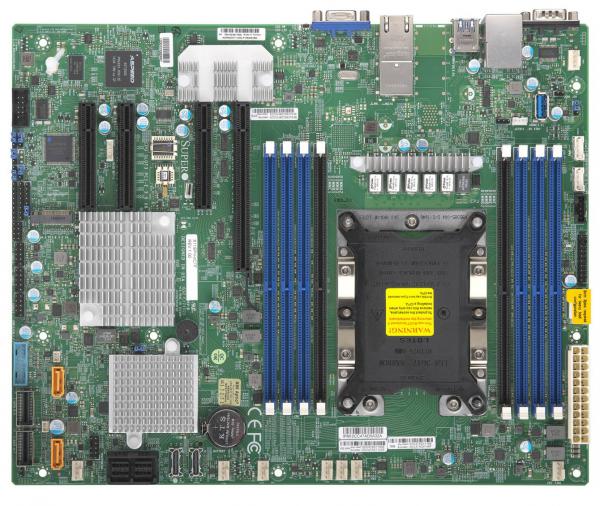

The Supermicro MBD-X11SPH-NCTF-B motherboard supports 2nd Gen Intel® Xeon® Scalable Processors in a single socket LGA-3647. It features an Intel® C622 chipset, supports up to 2TB DDR4 RAM in 8 DIMM slots, and offers dual 10GbE LAN ports. Expansion capabilities include multiple PCIe slots and M.2 support. Ideal for data centers and high-performance servers.

Key Features

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP
Intel® C622 chipset
Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
Expansion slots:1 PCIe 3.0 x16 (x16 || x8),1 PCIe 3.0 x8 (x0 || x8),1 PCIe 3.0 x8,1 PCIe 3.0 x4 (in x8)
2x Port NVMe PCIe 3.0 x4 via OCuLink
M.2 NGFF connectorM.2 Interface:PCIe 3.0 x4 and SATAForm Factor: 2280Key: M-Key
8 SAS3 (12Gbps) via Broadcom® 3008; RAID 0, 1, 10
2 10GbE LAN ports
10 SATA3 (6Gbps) via C622
5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers)

Key Applications

Data Centers
Server Farms
High Performance Computing
Enterprise Applications
Remote Management
Virtualization

Description

Supermicro MBD-X11SPH-NCTF-B is designed for high-performance applications, supporting 2nd Gen Intel® Xeon® Scalable Processors on an ATX form factor. It features the Intel® C622 chipset and can handle up to 2TB of DDR4-2933MHz ECC RAM across 8 DIMM slots. PCIe 3.0 expansion slots, SAS3 and SATA3 interfaces, dual 10GbE LAN ports, and advanced management features make it ideal for data centers, server farms, and enterprise-grade applications. Integrated IPMI with ASPEED AST2500 provides efficient remote management.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X11SPH-nCTF
Physical Stats
Form Factor	ATX
Dimension	12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU	2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Single Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP
Core	Up to 28 cores
Note	BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SPBIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
System Memory
Memory Capacity	8 DIMM slots Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	LRDIMM: 32GB, 64GB, 128GB RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C622
SATA	Broadcom® 3008 SW controller for 8 SAS3 (12 Gbps) ports; RAID 0,1,10 Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Dual LAN with 10GBase-T with Intel® X722 + X557
Input / Output
SATA	10 SATA3 (6Gbps) port(s)
SAS	8 SAS port(s)
LAN	2 RJ45 10GBase-T ports
USB	8 USB 2.0 port(s) (2 rear; 6 via header) 2 USB 3.0 port(s) (2 rear) 3 USB 3 port(s) (2 via header; 1 type A)
Video Output	1 VGA port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
DOM	2 SATADOM(Disk on Module) power connector support
TPM	1 TPM Header
Expansion Slots
PCIe	1 PCIe 3.0 x16 (x16 or x8 ), 1 PCIe 3.0 x8 (x0 or x8 ), 1 PCIe 3.0 x8, 1 PCIe 3.0 x4 (in x8 slot)
M.2	M.2 Interface: PCIe 3.0 x4; SATA Form Factor: 2280 Key: M-Key
System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later
Management
Software	SuperDoctor® 5, NMI,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,IPMI2.0, Watchdog
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage	VBAT, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 8 -fan status
LED	UID/Remote UID Suspend static indicator LED CPU / System Overheat LED
Temperature	CPU thermal trip support PECI
FAN	8x 4-pin fan headers (up to 8 fans) System level control PWM fan speed control Fan speed control Overheat LED indication
Other Features	WOL UID RoHS Control of power-on for recovery from AC power loss ACPI power management
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Cables
CBL-0044L	2	57.5 cm SATA FLAT S-S PBF
I/O Shield
MCP-260-00109-0N	1	STD I/O Shield for X11SPH-nCTF with EMI Gasket
Retail Package
I/O Cables
CBL-0044L	2	57.5 cm SATA FLAT S-S PBF
I/O Shield
MCP-260-00109-0N	1	STD I/O Shield for X11SPH-nCTF with EMI Gasket
QRG
MNL-1949-QRG	1	Motherboard Quick Reference Guide

Optional Part List

Part Number	Quantity	Description
1U I/O Shield
MCP-260-00114-0N	1	1U I/O Shield for X11SPH-nCTF with EMI Gasket
TPM security module
AOM-TPM-9670V	1	SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9671V	1	SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670H	1	SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9671H	1	SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
