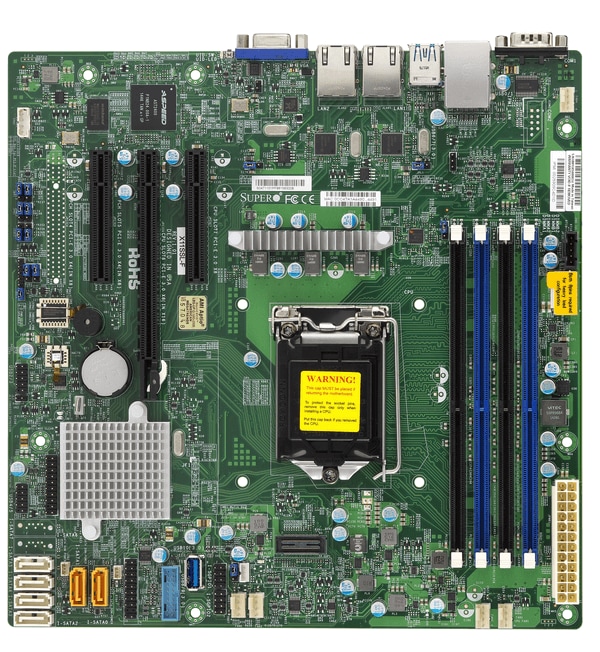

MBD-X11SSL-F-BULK

MBD-X11SSL-F-B
https://safeconsulting.no/web/image/product.template/10033/image_1920?unique=dfd9ff3

kr 2 503,38 2503.38 NOK kr 2 503,38

kr 2 503,38

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SSL-F-B motherboard offers robust performance and reliability, supporting a variety of Intel® processors and featuring up to 64GB of DDR4 memory, dual GbE LAN, and integrated IPMI.

    Key Features

    • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,Intel® Celeron® and Intel® Pentium®
    • Intel® C232 chipset
    • Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • Expansion slots:1 PCIe 3.0 x8 (in x16),1 PCIe 3.0 x8,1 PCIe 3.0 x4 (in x8)
    • Dual GbE LAN with Intel® i210-AT
    • 6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
    • Integrated IPMI 2.0 and KVM with Dedicated LAN
    • 2 SuperDOM with built-in power
    • 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
    • I/O: 1 VGA, 1 COM, TPM header

    Key Applications

    • Workstation setups
    • Server configurations
    • Enterprise applications
    • Virtualization workloads
    • High-performance computing
    • Storage servers
    • Network infrastructure
    • Graphics rendering
    • Scientific research

    Description

    The Supermicro MBD-X11SSL-F-B motherboard provides a high level of performance and flexibility with single socket H4 (LGA 1151) support for Intel® Xeon® E3-1200 v6/v5 processors. Designed for efficiency, it includes Intel® C232 chipset, up to 64GB of DDR4 memory across 4 DIMM slots, multiple PCIe 3.0 expansion slots, dual GbE LAN, 6 SATA3 ports with RAID, and integrated IPMI 2.0 management features. This Micro-ATX form factor motherboard ensures seamless operation for demanding applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SSL-F
    Physical Stats
    Form Factor
    • Micro-ATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • Intel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP
    Note
    • BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • 64GB Unbuffered ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C232
    SATA
    • Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 2 USB 3.0 port(s) (2 rear)
    • 3 USB 3 port(s) (2 via header; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 rear)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x8 (in x16 slot),
    • 1 PCIe 3.0 x8,
    • 1 PCIe 3.0 x4 (in x8 slot)
    System BIOS
    BIOS Type
    • 128MB SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • ACPI 1.0 / 2.0 / 3.0 / 4.0
    • APM 1.2
    • DMI 2.3
    • Hardware BIOS Virus protection
    • PCI 2.3
    • Plug and Play (PnP)
    • SMBIOS 2.7.1
    • UEFI 2.3.1
    • USB Keyboard support
    Management
    Software
    • SuperDoctor® 5, NMI,SUM,SSM,IPMI2.0, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Thermal control tachometer fan connectors
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL
    • CPU thermal trip support for processor protection
    • Control of power-on for recovery from AC power loss
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X11SSL-F with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L657.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O Shield for X11SSL-F with EMI Gasket
    QRG
    MNL-1785-QRG1Motherboard Quick Reference Guide
