MB -X11SSQ-BULK

• Single socket H4 (LGA 1151) supportsIntel® 7th/6th Gen. Core i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
• Intel® Q170 Express chipset
• Up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
• 1 M.2 PCIe 3.0 x2, 2242/2260/2280
• 1 PCIe 3.0 x16, 2 PCIe 3.0 x4 (w/ open slots),1x PCIe 3.0 x1,M.2 PCIe 3.0 x2 M Key 2242/60/80
• Dual GbE LAN w/ Intel i219LM + i210AT
• 6 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
• 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port,3 Independent Displays
• 1 SATA DOM, 4 COM ports, TPM header, ALC 888S HD Audio 7.1
• AMT, vPro

• High-performance workstations
• Media and entertainment systems
• Server environments
• Advanced computing tasks

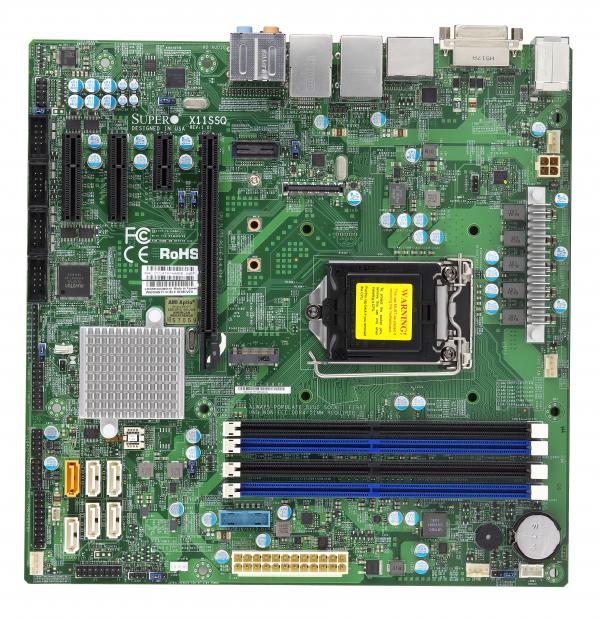

The Supermicro MBD-X11SSQ-B motherboard is a high-performance solution designed for both workstations and servers. It supports Intel 7th/6th Gen processors in a single LGA1151 socket and up to 64GB of DDR4 memory across 4 DIMM slots. The board includes a variety of expansion slots and interfaces, such as PCIe 3.0, M.2, and SATA 3, ensuring maximum flexibility for diverse applications. Advanced network capabilities are provided by dual GbE LAN ports, while display options are versatile with HDMI, DP, and DVI-D outputs. This motherboard also features comprehensive management and monitoring tools, making it a reliable choice for demanding environments.
