MB -X11SSZ-QF-BULK

Name: MB -X11SSZ-QF-BULK
Brand: supermicro
SKU: MBD-X11SSZ-QF-B
Price: 3113.34 NOK
Availability: BackOrder

SKU:

MBD-X11SSZ-QF-B

kr 3 113,34 3113.34 NOK kr 3 113,34

kr 3 113,34

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

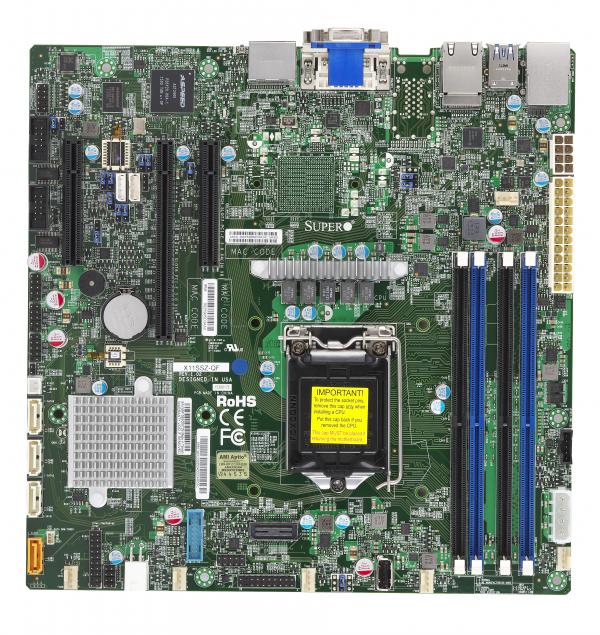

The Supermicro MBD-X11SSZ-QF-B is a high-performance Micro-ATX motherboard designed for demanding applications. Equipped with the Intel® Q170 Express chipset, it supports Intel® 6th and 7th Gen Core processors, up to 64GB DDR4 memory, and features dual GbE LAN, RAID support, and advanced system management capabilities.

Key Features

Single socket H4 (LGA 1151) supportsIntel® 7th/6th Gen. Core i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
Intel® Q170 Express chipset
Up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots
1 PCIe 3.0 x162 PCIe 3.0 x4 (in x8 slot)
Dual GbE LAN w/ Intel i219LM + i210AT
4 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
Supports 12V DC power input
I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
2 DP, 1 DVI-I, 3 independent displays via Intel HD Graphics, VGA port for BMC
IPMI, AMT vPro

Key Applications

Workstations
Servers
Industrial PCs
Digital Signage Solutions
Embedded Systems

Description

The Supermicro MBD-X11SSZ-QF-B is built for performance and reliability, utilizing the Intel® Q170 Express chipset and supporting Intel® 7th/6th Gen Core i7/i5/i3 series, Intel® Celeron®, and Intel® Pentium® processors in a single socket H4 (LGA 1151). Key highlights include up to 64GB DDR4 2400MHz Non-ECC Unbuffered UDIMM memory across 4 DIMM slots, dual GbE LAN with Intel® i219LM and i210AT controllers, and extensive I/O options, including 4 SATA3 ports with RAID support, multiple display outputs, and comprehensive management features such as IPMI and AMT vPro.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X11SSZ-QF
Physical Stats
Form Factor	Micro-ATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU	Intel® 6th Generation Core™ i3 series, Intel® Celeron®, Intel® Pentium®, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i3 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 91W TDP
Note	BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors
System Memory
Memory Capacity	4 DIMM slots Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2400MT/s
Memory Type	2400/2133/1866 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
On-Board Devices
Chipset	Intel® Q170 Express
SATA	Intel® Q170 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio	ALC 888S HD Audio
Graphics	1 Intel® HD Graphics port(s) 1 ASPEED AST2400 BMC port(s) 3 Independent Displays, VGA is from BMC.
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
SATA	4 SATA3 (6Gbps) port(s)
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	9 USB 2.0 port(s) (2 rear; 6 via header; 1 Type A) 2 USB 3.2 Gen1 port(s) (2 via header) 2 USB 3.0 port(s) (2 rear)
Video Output	1 VGA port(s), 2 DP (DisplayPort) port(s), 1 DVI - I port(s)
Serial Port	2 COM Port(s) (2 header)
DOM	1 SATADOM(Disk on Module) power connector support
TPM	1 TPM Header
Expansion Slots
PCIe	1 PCIe 3.0 x16 (in x16 slot), 2 PCIe 3.0 x4 (in x8 slot)
System BIOS
BIOS Type	AMI UEFI
BIOS Features	DMI 2.3 PCI 3.0 Plug and Play (PnP) ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1
Management
Software	SuperDoctor® 5, NMI, KVM with dedicated LAN,IPMI2.0, AMT, vPro, Watchdog
System Management Software	SuperDoctor 5, IPMIView for Linux/Windows
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 1.2V (VDIMM), +5V standby, +5V, +3.3V, +12V, +1.8V
LED	UID/Remote UID CPU / System Overheat LED +5V Standby alert LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI I2C temperature sensing logic
FAN	6x 4-pin fan headers (up to 6 fans) Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, 6 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication
Other Features	WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Intel Smart Response Technology
Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00093-0N	1	Standard I/O Shield for X11SSZ with EMI Gasket
Retail Package
I/O Cables
CBL-0044L	4	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00093-0N	1	Standard I/O Shield for X11SSZ with EMI Gasket
QRG
MNL-1744-QRG	1	Motherboard Quick Reference Guide

Optional Part List

Part Number	Quantity	Description
1U I/O Shield
MCP-260-00094-0N	-	1U I/O Shield for X11SSZ with EMI Gasket in CSE-512/813
TPM security module
AOM-TPM-9655V	-	TPM Module with Infineon 9655, RoHS/REACH,PBF;

AOM-TPM-9655H	-	Vertical or Horizontal
