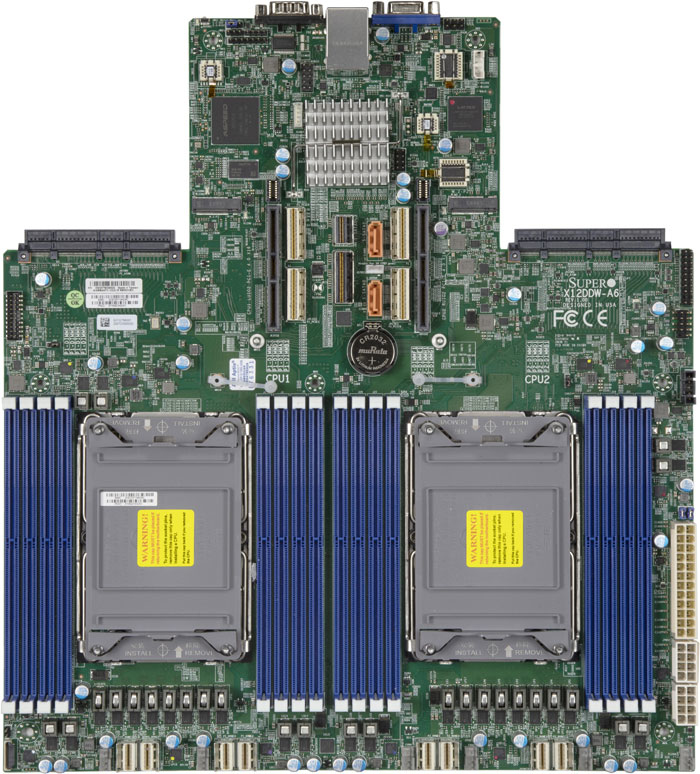

X12DDW-A DCO Whitley Ice Lake with AST2600

MBD-X12DDW-A6-O
https://safeconsulting.no/web/image/product.template/9755/image_1920?unique=5a19258

kr 7 916,77 7916.77 NOK kr 7 916,77

kr 7 916,77

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    Supermicro MBD-X12DDW-A6. Processor manufacturer: Intel, Processor socket: LGA 3647 (Socket P), Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2400. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I350-AM2

    Key Features

    • 3rd Gen Intel® Xeon® Scalable processorsDual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
    • Intel® C621A
    • Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB LRDIMM, DDR4-3200MHzUp to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz (OC), in 16 DIMM slots
    • 1 PCIe 4.0 x16 Left Riser Slot,1 PCIe 4.0 x16 Right Riser Slot,2 PCIe 4.0 x16 Center Right Hand Slot,8 PCIe 4.0 NVMe Internal Port(s)M.2 Interface:2 PCIe 2.0 x1M.2 Form Factor:2260/2280M.2 Key:M-Key2 PCIe 4.0 x16, AIOM slots Superset of OCP 3.0 Expansion
    • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 VGA D-Sub Connector port
    • AIOM for LAN

    Key Applications

    • Enterprise servers
    • Data centers
    • High-performance computing
    • Virtualization
    • Cloud computing
    • Scientific research
    • AI and machine learning

    Description

    The Supermicro MBD-X12DDW-A6 is designed to deliver outstanding performance and power efficiency. Supporting 3rd Gen Intel® Xeon® Scalable processors, this dual socket motherboard provides robust computing capabilities with up to 40 cores and advanced features like Intel® Optane™ Persistent Memory. It offers extensive memory capacity and speed options, including support for up to 4TB of DDR4-3200MHz RAM across 16 DIMM slots. The board includes multiple PCIe 4.0 slots, AIOM slots for LAN, and a variety of storage and expansion options. It's an ideal choice for enterprise servers, data centers, and demanding computing environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12DDW-A6
    Physical Stats
    Form Factor
    • Proprietary WIO
    Dimension
    • 12.288" x 13.404" (31.21cm x 34.05cm)
    Processor
    CPU
    • 3rd Gen Intel® Xeon® Scalable processors
    • Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
    Core
    • Up to 40 cores
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MT/s
    • Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
    Memory Type
    • 3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
    DIMM Sizes
    • 16GB, 32GB, 64GB, 128GB, 256GB
    • LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
    • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C621A
    SATA
    • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2600 BMC
    Graphics
    • 1 ASPEED AST2600 BMC port(s)
    Network Controllers
    • AIOM for LAN
    Input / Output
    USB
    • 4 USB 3.1 Gen1 port(s) (2 via header; 2 rear)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x16 Left Riser Slot,
    • 1 PCIe 4.0 x16 Right Riser Slot,
    • 2 PCIe 4.0 x16 Center Right Hand Slot,
    • 2 PCIe 4.0 x16, AIOM slots Superset of OCP 3.0 Expansion
    M.2
    • M.2 Interface: 2 PCIe 3.0 x2
    • Form Factor: 2260/2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • ATX Power connector
    PC Health Monitoring
    Voltage
    • PCH temperature, Monitors CPU voltages, CPU temperature, Chassis intrusion header, 6 -fan status, +5V standby, +12V, Memory Voltages, CPU thermal trip support, +1.8V PCH
    LED
    • UID/Remote UID
    • Power LED
    • BMC/IPMI Heartbeat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    FAN
    • 6 fans with tachometer status monitoring
    Other Features
    • WOL, UID, RoHS, Node Manager Support, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
