X12 Mainstream DP MB with AST2600

• 3rd Gen Intel® Xeon® Scalable processorsDual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
• Intel® C621A
• Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHzUp to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
• 2 PCIe 4.0 x8,4 PCIe 4.0 x16,2 PCIe 4.0 NVMe x8 Internal Port(s)M.2 Interface:1 PCIe 4.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
• Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Dual LAN with Intel® i350 Gigabit Ethernet Controller
• 2 VGA (1 rear bezel, 1 front panel) ports

• High-performance computing
• Data centers
• Cloud computing
• Enterprise servers
• Virtualization environments
• AI and machine learning
• Big data analytics

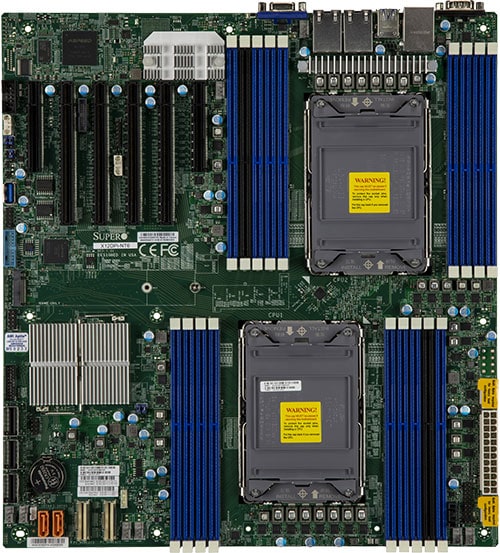

The Supermicro MBD-X12DPI-N6-O is a high-end motherboard built for demanding environments requiring powerful computing capabilities. It supports 3rd Gen Intel® Xeon® Scalable processors with up to 40 cores per CPU, dual socket LGA-4189, and CPU TDP support up to 270W. The motherboard features PCIe 4.0, multiple PCIe and M.2 slots, up to 4TB Intel® Optane™ Persistent Memory 200 Series, 14 SATA3 ports, dual Gigabit LAN, and robust security with TPM 2.0. Additionally, it offers comprehensive system management and health monitoring capabilities, making it ideal for data centers and high-performance computing tasks.
