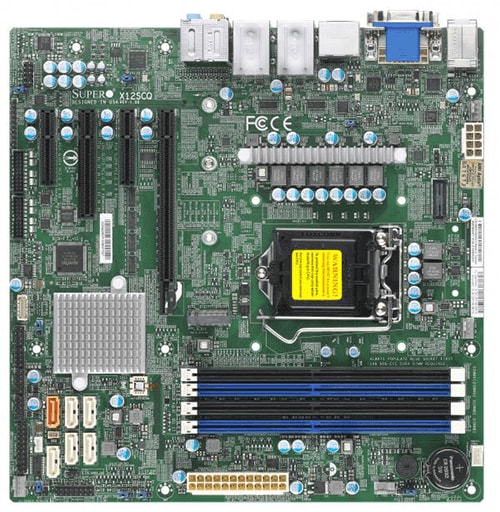

X12SCQ,Micro ATX,Comet Lake-S,Q470,LGA1200

MBD-X12SCQ-B
https://safeconsulting.no/web/image/product.template/9776/image_1920?unique=5a19258

kr 3 723,30 3723.3 NOK kr 3 723,30

kr 3 723,30

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    Supermicro MBD-X12SCQ-B features 11th/10th Gen Intel® Core™ processors in a Micro-ATX form factor. This motherboard is designed for high performance and scalability in various demanding applications.

    Key Features

    • 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® ProcessorSingle Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
    • Intel® Q470E
    • Intel® Q470 controller for 6 RAID 0,1,5,10
    • Single LAN with Intel® PHY I219LM LAN controllerSingle LAN with Intel® Ethernet Controller I210-AT
    • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x16 (in x16 slot),1 PCIe 3.0 x8,2 PCIe 3.0 x4M.2 Interface:1 PCIe 3.0 x4, RAID 0 & 1M.2 Form Factor:2242/2280M.2 Key:M-Key
    • 1 VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port

    Key Applications

    • Enterprise data centers
    • High-performance computing
    • Workstations
    • Servers
    • Cloud computing

    Description

    The Supermicro MBD-X12SCQ-B boasts support for 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® processors with a single Socket LGA-1200. It supports up to 128GB unbuffered non-ECC UDIMM, DDR4-2933MHz memory in 4 DIMM slots, and offers multiple expansion options with 1 PCIe 3.0 x16, 1 PCIe 3.0 x8, and 2 PCIe 3.0 x4 slots along with an M.2 interface. Networking is handled by dual LAN ports with Intel® controllers, and an array of I/O options includes VGA, HDMI, DP, and DVI-D ports. The board also supports 6 SATA3 ports with RAID 0, 1, 5, 10 and various management features.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12SCQ
    Physical Stats
    Form Factor
    • Micro-ATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
    • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
    Core
    • Up to 10 cores
    Note
    • **The X12SCQ does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MT/s
    Memory Type
    • 2933/2666/2400/2133 MT/s
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® Q470E
    SATA
    • Intel® Q470 controller for 6 ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    SATA
    • 6 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 6 USB 3.1 Gen2 port(s) (2 via header; 2 rear type A; 2 rear type C)
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    Video Output
    • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
    Serial Port
    • 4 COM Port(s) (4 header)
    TPM
    • 1 TPM TPM 2.0 onboard
    Expansion Slots
    PCIe
    • 2 PCIe 3.0 x4,
    • 1 PCIe 3.0 x16 (in x16 slot),
    • 1 PCIe 3.0 x8
    M.2
    • M.2 Interface: 1 PCIe 3.0 x4, RAID 0 & 1
    • Form Factor: 2242/2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.0 or later
    • PCI FW 3.0
    • UEFI 2.7
    • RTC (Real Time Clock) Wakeup
    Management
    Power Configurations
    • ATX Power connector
    PC Health Monitoring
    Voltage
    • VBAT, 4 fans with tachometer monitoring, 4 -fan status, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V
    LED
    • Power LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    • 4 fans with tachometer monitoring
    Other Features
    • RoHS
    • M.2 NGFF connector
    • Chassis intrusion detection
    • ATX Power connector
    • ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00125-1N1Standard I/O Shield
    Retail Package
    I/O Cables
    CBL-0044L457.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00125-1N1Standard I/O Shield for X12SCQ with EMI Gasket
    QRG
    MNL-2281-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    4U CPU Heat Sink for Socket H(optional, not included)
    SNK-P0051AP4.-4U Active CPU Heat Sink
    USB3.1 Cable
    CBL-CUSB-0835-Dual USB3.1 Type A Cable with Bracket
