  2. X12SCV-W, Mini ITX, Comet LakePCHW480E,LGA1200,PCIex16,D

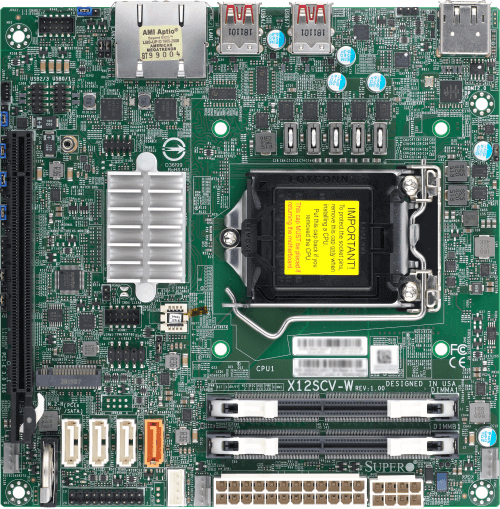

X12SCV-W, Mini ITX, Comet LakePCHW480E,LGA1200,PCIex16,D

MBD-X12SCV-W-B
https://safeconsulting.no/web/image/product.template/9780/image_1920?unique=5a19258

kr 3 303,95 3303.9500000000003 NOK kr 3 303,95

kr 3 303,95

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro X12SCV-W-B is a powerful Mini-ITX motherboard supporting Intel® Xeon® W-1200 series and 11th/10th Generation Intel® Core™ processors with a maximum CPU TDP of 65W.

    Key Features

    • 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor, Intel® Xeon® W-1200 ProcessorsSingle Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP
    • Intel® W480E
    • Single LAN with Intel® Ethernet i225LMSingle LAN with Intel® Ethernet i225V
    • Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots
    • 1 PCIe 3.0 x16 slots (16/NA or 8/8)1 M.2 M-Key PCIe 3.0 x4, 2280
    • Intel® W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 HDMI port, 1 DP (DisplayPort) port

    Key Applications

    • High-performance computing
    • Small form factor servers
    • Home labs
    • Media centers

    Description

    The Supermicro X12SCV-W-B motherboard is designed for high performance thanks to support for Intel® Xeon® W-1200 processors and up to 64GB DDR4 memory. It includes robust features such as Intel® W480E chipset, advanced SATA3 ports with RAID support, dual Gigabit LAN, multiple USB ports, and versatile display options. With various expansion slots and comprehensive system management capabilities, it ensures reliability and scalability for various applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12SCV-W
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Xeon® W-1200 Processors, 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor
    • Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 65W TDP
    Core
    • Up to 10 cores
    Note
    • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.**The X12SCV-W does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 64GB ECC/non-ECC SODIMM, DDR4-2933MT/s
    Memory Type
    • 2933/2666/2400/2133 MT/s ECC/non-ECC DDR4 SODIMM
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® W480E
    SATA
    • Intel® W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Single LAN with Intel® Ethernet i225V
    • Single LAN with Intel® Ethernet i225LM
    Input / Output
    SATA
    • 4 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 2.5 Gigabit Ethernet LAN port
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 4 USB 3.2 Gen2 port(s) (4 rear type A)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 HDMI port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x16 slots (16/NA or 8/8)
    M.2
    • M.2 Interface: 1 PCIe 3.0 x4
    • Form Factor: 2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.1
    • PCI FW 3.0
    • UEFI 2.7
    • RTC (Real Time Clock) Wakeup
    Management
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ATX Power connector, ACPI / ACPM Power Management, +12V DC Power Input
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, PCH temperature, Monitors CPU voltages, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V
    LED
    • Power LED
    Temperature
    • Thermal Control for 3 Fan Connectors
    FAN
    • 3x 4-pin fan headers (up to 3 fans)
    • System level control
    • PWM fan speed control
    • Fan speed control
    • 3 fans with tachometer monitoring
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00158-0N1X12SCV Standard I/O shield
    Retail Package
    I/O Cables
    CBL-0044L457.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00158-0N1X12SCV Standard I/O shield
    QRG
    MNL-2357-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    Audio Cable
    CBL-OTHR-0986-Audio Cable 20cm
    COM Port Cable
    CBL-CDAT-0605-DB9/M TO 2X5F/P2.00,W/BKT,30CM,28AWG
    USB Cable
    CBL-CUSB-0983-USB2.0 cable 20cm
