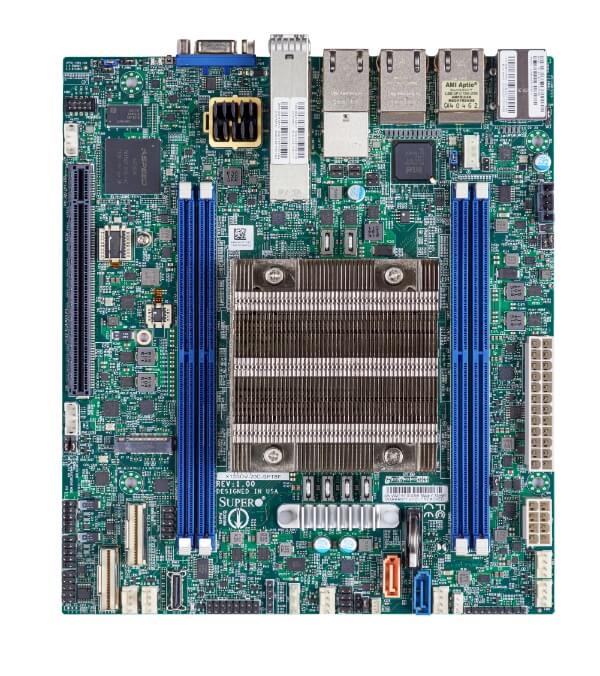

Embedded Flex ATX 7.5 inch x8.5 inch ICX-D HCCSoC,1xPCIe

MBD-X12SDV-4C-SPT8F-B
https://safeconsulting.no/web/image/product.template/9792/image_1920?unique=5a19258

kr 11 017,40 11017.4 NOK kr 11 017,40

kr 11 017,40

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X12SDV-4C-SPT8F-B offers advanced performance in a compact Micro-ATX form factor. Powered by the Intel® Xeon® Processor D-2712T, it supports high-speed connectivity and extensive memory capabilities.

    Key Features

    • System on Chip
    • Intel® Xeon® Processor D-2712T, CPU TDP 65W
    • Up to 256GB Registered ECC RDIMM, DDR4-2667MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2667MHz, in 4 DIMM slots
    • 1 PCIe 4.0 x16
    • 2 PCIe 4.0 NVMe x8 SlimSAS Internal Port
    • 1 OCuLink Connector (4 SATA/PCIe 3.0 x4)1 M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
    • Quad 1G RJ45 with Intel® I350-AM4Dual 25G SFP28 with Intel SoCDual 10Gbase-T RJ-45 with Intel® Ethernet Controller X550-AT2
    • SoC controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
    • 12V DC or ATX Power Input (Use at least 5Vsb/4A PSU)

    Key Applications

    • Enterprise server
    • High-performance computing
    • Data center
    • Network appliance
    • Cloud storage

    Description

    The Supermicro MBD-X12SDV-4C-SPT8F-B is designed for high-performance computing with a focus on scalability and efficiency. Featuring the Intel® Xeon® Processor D-2712T with a TDP of up to 65W, this motherboard supports DDR4-2667MHz memory with a maximum capacity of 512GB via LRDIMM. It provides extensive connectivity options, including multiple PCIe slots, various SATA and LAN ports, and advanced management features with support for Redfish API and Supermicro Server Manager (SSM).

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12SDV-4C-SPT8F
    Physical Stats
    Form Factor
    • Micro-ATX
    Dimension
    • 7.5" x 8.5" (19.05cm x 21.59cm)
    Processor
    CPU
    • Intel® Xeon® Processor D-2712T
    • Single Socket FCBGA-2579 supported, CPU TDP supports Up to 65W TDP
    Core
    • Up to 4 cores / 15MB Cache
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 512GB ECC LRDIMM, DDR4-2666MT/s; Up to 256GB ECC RDIMM, DDR4-2666MT/s; Up to 512GB ECC/non-ECC , DDR4-2666MT/s
    Memory Type
    • 2666/2400 MT/s ECC/non-ECC DDR4 LRDIMM, RDIMM
    DIMM Sizes
    • LRDIMM: 64GB, 128GB
    • RDIMM: 8GB, 16GB, 32GB, 64GB
    • UDIMM: 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe)
    IPMI
    • ASPEED AST2600 BMC
    Graphics
    • 1 Aspeed AST2600 BMC port(s)
    Network Controllers
    • Dual LAN with 25G SFP28 LAN via SoC
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    • Quad LAN with Intel® i350 Gigabit Ethernet Controller
    Input / Output
    SATA
    • 2 SATA3 (6Gbps) port(s)
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    • 2 SFP28 25 Gigabit Ethernet LAN ports
    • 2 RJ45 10GBase-T ports
    USB
    • 4 USB 2 port(s) (4 via header)
    • 2 USB 3 port(s) (2 rear type A)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x16,
    • 1 PCIe 3.0 x4 (or 4x SATA), via Oculink,
    • 2 PCIe 4.0 x8, via SlimSAS
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x4
    • Form Factor: 2242/2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    BIOS Features
    • ACPI 6.3
    • UEFI 2.7
    • SMBIOS 3.3
    • Plug and Play (PnP)
    • PCI FW 3.0
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    Power Configurations
    • ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery
    PC Health Monitoring
    Voltage
    • 3.3V standby, +5V standby, +5V, +3.3V, +12V, Memory Voltages, Monitors CPU Core Voltages
    LED
    • UID/Remote UID
    • BMC/IPMI Heartbeat LED
    • Overheat/Fan Fail/PWR Fail LED
    • Power Indicator LED
    • LAN temperature
    Temperature
    • CPU thermal trip support
    • peripheral temperature
    • System temperature
    • Memory temperature
    • NVMe temperature
    • Platform Environment Control Interface (PECI)/TSI
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • System level control, PWM fan speed control, Fan speed control, 6 fans with tachometer status monitoring, Overheat LED indication, Dual Cooling Zones
    Other Features
    • UID, RoHS, Node Manager Support, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00098-0N1Standard I/O Shield
    SATA cable
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    COM Cable
    CBL-CDAT-06051COM Cable 20cm
    I/O Shield
    MCP-260-00098-0N1Standard I/O Shield
    OCuLink to 4x SATA Cable
    CBL-SAST-0933150CM OCuLink to 4x SATA Cable
    OCuLink to U.2 Cable
    CBL-SAST-0956155CM OCuLink to U.2 Cable with Molex Power Header
    QRG
    MNL-2440-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-0044L257.5CM SATA FLAT S-S PBF
