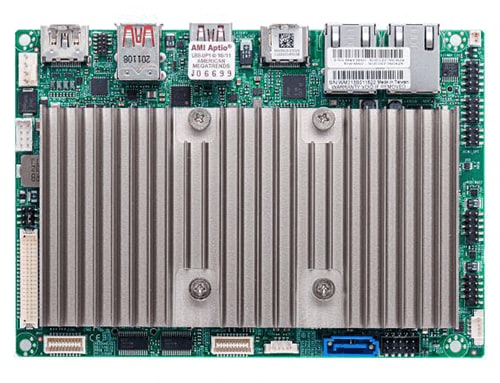

X12STN-C, Embedded 3.5" SBC, Intel Tiger Lake-UP3 SoC, C

Name: X12STN-C, Embedded 3.5" SBC, Intel Tiger Lake-UP3 SoC, C
Brand: supermicro
SKU: MBD-X12STN-C-O
Price: 3469.15 NOK
Availability: BackOrder

SKU:

MBD-X12STN-C-O

kr 3 469,15 3469.15 NOK kr 3 469,15

kr 3 469,15

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

The Supermicro MBD-X12STN-C-O motherboard features Intel® Celeron® 6305E Processor, dual 2.5GbE LAN, 4 USB3.1 gen2 ports, and support for AI inferencing with Hailo-8™. Designed for high performance and wide temperature ranges, it is ideal for diverse industrial applications.

Key Features

Intel® Celeron® 6305E Processor
High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion
Intel® UHD Graphics with 48 EU capable of 4K60 resolution
4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
Accelerated AI inferencing and computer vision in parallel without extra hardware
100% wide temp grade design and components applied
12-24V (10% tolerance) wide range power input support
Hailo-8™ powerful and efficient Edge AI solution integration ready

Key Applications

Industrial Automation
Edge AI Computing
Embedded Systems
IoT Gateways
Digital Signage
Network Security
Medical Imaging
Surveillance Systems

Description

The Supermicro MBD-X12STN-C-O comes equipped with an Intel® Celeron® 6305E Processor, providing robust performance for versatile applications. Highlights include superior connectivity with dual 2.5GbE, multiple display support, and rich I/O options. Onboard AI capabilities with Hailo-8™ make it perfect for edge computing and industrial environments. It supports up to 64GB DDR4 memory and features a variety of expansion slots, including multiple M.2 slots for additional flexibility.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X12STN-C
Physical Stats
Form Factor	3.5" SBC
Dimension	5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU	Intel® Celeron® Processor 6305E Single Socket FCBGA-1449 supported, CPU TDP supports Up to 15W TDP
Core	Up to 2 cores, 2 threads / 4MB Cache
System Memory
Memory Capacity	2 DIMM slots Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MT/s
Memory Type	3200 MT/s non-ECC DDR4 Unbuffered ered 260pin SODIMM
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
On-Board Devices
Chipset	System on Chip
Audio	ALC 888S HD Audio
Graphics	1 Intel® UHD Graphics port(s) Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz),HDMI 2.0b (max. resolution up to 4096x2160@60Hz),HDMI 1.4b (max. resolution up to 4096x2160@30Hz),DP (Alt mode, max. resolution up to 4096x2304@60Hz)
Network Controllers	Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade
Input / Output
SATA	1 SATA3 (6Gbps) port(s)
LAN	2 RJ45 2.5 Gigabit Ethernet LAN port
USB	4 USB 2.0 port(s) (4 via header) 4 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C)
Video Output	2 HDMI port(s), 1 48-bit LVDS port(s), 1 DP (Alt mode) port(s)
Serial Port	4 COM Port(s) (4 header), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
TPM	1 TPM Chip
Others	1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C) 1 speaker out header with 3W amplifier 1 8-bit GPIO header 1 SMBus header 1 System Fan
Expansion Slots
PCIe	No/A
M.2	Key: B-Key, M-Key, E-Key M.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCIe Gen3 x1) with nano SIM holderM.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2)M.2 2242/2280 M-Key (PCIe 4.0 x4), NVMe support
System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.2 SMBIOS 3.0 or later UEFI 2.7 PCI FW 3.0 RTC (Real Time Clock) Wakeup
Management
Software	Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
System Management Software	SuperDoctor 5
Power Configurations	ACPI Power Management, CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage	VBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V
LED	Standby alert LED
Temperature	CPU thermal trip support
FAN	1x 4-pin fan header (up to 1 fan) Thermal control tachometer fan connectors System level control PWM fan speed control Low noise fan speed control Fan speed control
Other Features	WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector
Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
DC IN Power cable
CBL-PWEX-1029	1	DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
Passive heatsink
SNK-C0146PL	1	X12STN passive heatsink with height 25mm
Retail Package
Audio Cable
CBL-OTHR-0986	1	Audio Cable 20cm
COM Cable
CBL-CDAT-0665	1	COM Cable 20cm
DC IN Power cable
CBL-PWEX-1029	1	DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
Passive heatsink
SNK-C0146PL	1	X12STN passive heatsink with height 25mm
QRG
MNL-2395-QRG	1	Motherboard Quick Reference Guide
SATA cable
CBL-SAST-0881	1	SATA Data cable 25CM
SATA Power Cable
CBL-PWEX-1030	1	SATA Power Cable 20cm
USB Cable
CBL-CUSB-0983	1	USB2.0 cable 20cm

Optional Part List

Part Number	Quantity	Description
DC IN Power Cable (DC Jack)
CBL-PWEX-1110-15	1	DC power jack,vertical to 2x4, 2.0mm, 15cm
Heatspreader
MCP-350-00008-0N	1	Aluminum block Heatspreader for X11SWN
Power Adapter
MCP-250-10134-0N	1	60W 12V 5A, AC to DC lockable power adapter,HF
SATA Power Cable
CBL-PWEX-1032	1	SATA Power Cable 20cm
