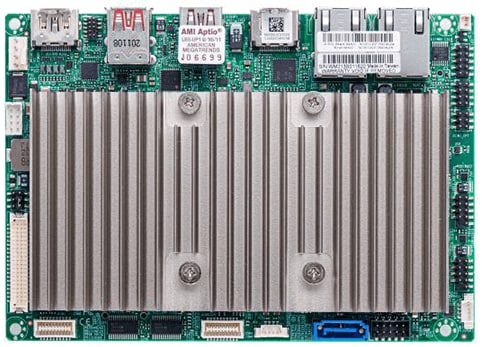

X12STN-E, Embedded 3.5" SBC,Intel TigerLake-UP3SoC,i5-11

MBD-X12STN-E-O
https://safeconsulting.no/web/image/product.template/9846/image_1920?unique=5a19258

kr 8 132,80 8132.8 NOK kr 8 132,80

kr 8 132,80

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X12STN-E-O is a robust 3.5" single-board computer equipped with the 11th Gen Intel Core i5-1145GRE Processor. It boasts superior graphics capabilities, high-speed connectivity, and multiple expansion options. Designed for demanding applications, it supports a wide range of I/O and AI inferencing without extra hardware.

    Key Features

    • Intel® 11th Generation Core™ i5-1145GRE Processor
    • Up to 80 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
    • High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion
    • 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
    • Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
    • Accelerated AI inferencing and computer vision in parallel without extra hardware
    • 100% wide temp grade design and components applied
    • 12-24V (10% tolerance) wide range power input support
    • Hailo-8™ powerful and efficient Edge AI solution integration ready

    Key Applications

    • AI inferencing
    • Edge computing
    • Embedded systems
    • Industrial automation

    Description

    The Supermicro MBD-X12STN-E-O is engineered to meet the needs of contemporary computing environments, particularly AI and edge computing. Built with an Intel 11th Generation Core i5-1145GRE Processor, it provides exceptional performance with up to 4 cores, 8 threads, and an integrated Intel Iris Xe graphics that supports up to 4K60 resolution. This 3.5" SBC features dual 2.5GbE, multiple USB ports, and diverse display outputs including HDMI and DisplayPort. Its rich I/O options include COM, USB, audio with amplifier, and triple M.2 support, making it versatile for various applications. Moreover, it integrates the Hailo-8™ Edge AI solution and supports broad operating temperatures, ensuring reliability in harsh environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12STN-E
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU
    • 11th Generation Intel® Core™ i5-1145GRE Processor
    • Single Socket FCBGA-1449 supported, CPU TDP supports Up to 28W TDP
    Core
    • Up to 4 cores, 8 threads / 8MB Cache
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MT/s
    Memory Type
    • 3200 MT/s non-ECC DDR4 Unbuffered ered 260pin SODIMM
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • System on Chip
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® Iris® Xe Graphics port(s)
    • Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz),HDMI 2.0b (max. resolution up to 4096x2160@60Hz),HDMI 1.4b (max. resolution up to 4096x2160@30Hz),DP (Alt mode, max. resolution up to 4096x2304@60Hz)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade.
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 2.5 Gigabit Ethernet LAN port
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 4 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C)
    Video Output
    • 2 HDMI port(s), 1 48-bit LVDS port(s), 1 DP (Alt mode) port(s)
    Serial Port
    • 4 COM Port(s) (4 header), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
    TPM
    • 1 TPM Chip
    Others
    • 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C)
    • 1 speaker out header with 3W amplifier
    • 1 8-bit GPIO header
    • 1 SMBus header
    • 1 System Fan
    Expansion Slots
    PCIe
    • No/A
    M.2
    • Key: B-Key, M-Key, E-Key
    • M.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCIe Gen3 x1) with nano SIM holderM.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2)M.2 2242/2280 M-Key (PCIe 4.0 x4), NVMe support
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.2
    • SMBIOS 3.0 or later
    • UEFI 2.7
    • PCI FW 3.0
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    FAN
    • 1x 4-pin fan header (up to 1 fan)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector
    Operating Environment
    Operating Temperature Range
    • -40°C - 60°C (0°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0146PL1X12STN passive heatsink with height 25mm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CDAT-06651COM Cable 20cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0146PL1X12STN passive heatsink with height 25mm
    QRG
    MNL-2395-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC power jack,vertical to 2x4, 2.0mm, 15cm
    Heatspreader
    MCP-350-00008-0N1Aluminum block Heatspreader for X11SWN
    Power Adapter
    MCP-250-10134-0N160W 12V 5A, AC to DC lockable power adapter,HF
    SATA Power Cable
    CBL-PWEX-10321SATA Power Cable 20cm
