Intel Xeon-E 2300 (Rocket Lake- E)/PentiumCPU,SocketH5LG

MBD-X12STW-F-B

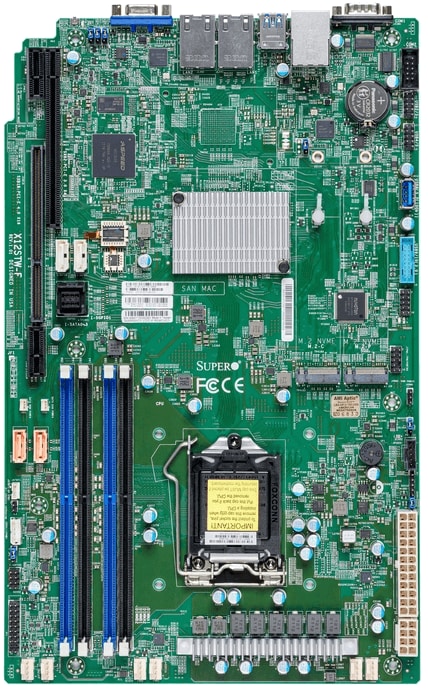

https://safeconsulting.no/web/image/product.template/9861/image_1920?unique=5a19258

kr 3 507,27 3507.27 NOK kr 3 507,27

kr 3 507,27

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X12STW-F-B motherboard provides optimal performance with support for Intel® Xeon® E-2300 and 10th Gen Pentium® processors. It features advanced memory, storage, and connectivity options.

    Key Features

    • Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
    • Intel® C256
    • Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz
    • 1 PCIe 4.0 x16 Left Riser Slot1 PCIe 3.0 x4 (in x8, Right Riser slot)
    • M.2 Interface:1 PCIe 4.0 x4 and 1 PCIe 3.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key Double Height Connector
    • Dual LAN with Intel® i210 Gigabit Ethernet Controller
    • Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 VGA port
    • 4 USB 3.2 Gen1 ports (2 rear + 2 via headers)1 USB 3.2 Gen2 port (1 Type A)6 USB 2.0 ports (2 rear + 4 via headers)

    Key Applications

    • Enterprise servers
    • Workstations
    • Data centers
    • Networking devices

    Description

    The Supermicro MBD-X12STW-F-B motherboard is designed for high performance and reliability. It supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® processors with up to 8 cores and 16 threads. Equipped with Intel® C256 chipset, it offers up to 128GB of DDR4-3200MHz ECC UDIMM memory. The board is packed with features including dual LAN ports, eight SATA3 (6Gbps) ports, multiple USB ports, M.2 support, and advanced management capabilities.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X12STW-F
    Physical Stats
    Form Factor
    • Proprietary WIO
    Dimension
    • 8" x 13" (20.32cm x 33.02cm)
    Processor
    CPU
    • 10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor
    • Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP
    Core
    • Up to 8 cores, 16 threads
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MT/s
    Memory Type
    • 3200/2933/2666 MT/s SDRAM
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C256
    SATA
    • Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2600 BMC
    Graphics
    • 1 ASPEED AST2600 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    SATA
    • 8 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
    • 1 USB 3.2 Gen2 port(s) (1 rear type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 2 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x16 Left Riser Slot,
    • 1 PCIe 3.0 x4 (in x8 slot)
    M.2
    • M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 3.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    • Double Height Connector
    System BIOS
    BIOS Type
    • 256MB UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.3
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • UEFI 2.7
    • USB Keyboard support
    • PCI 3.0
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • Thermal control tachometer fan connectors
    • Fan speed control
    • 6 fans with tachometer status monitoring
    • Overheat LED indication
    Other Features
    • WOL, UID, Node Manager Support, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Cables
    CBL-0044L457.5CM SATA FLAT S-S PBF
    QRG
    MNL-2354-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
