    Summary Description

    The Supermicro MBD-X13SAN-L-O motherboard is designed for top-tier computing performance, integrating Intel's hybrid architecture, and supporting up to four independent 4K displays. It offers robust connectivity with dual 2.5GbE, multiple USB ports, and rich expansion capabilities.

    Key Features

    • First performance hybrid architecture from Intel
    • 4 independent display with 4K resolution
    • Fast AI hardware acceleration
    • Up to 64 EU with Intel® UHD graphics capable of 4K60 resolution
    • Next gen interfce: DDR5-4800 MHz and PCIe Gen4 x4 by SlimSAS and M.2
    • High speed connectivity through dual 2.5GbE
    • 100% wide temp grade design and components applied
    • 12-24V wide range power with RVP and TVS
    • Rich I/O and expansion: 4 COM, 9 USB, audio with AMP, triple M.2
    • Hailo-8™ powerful and efficient Edge AI solution integration ready

    Key Applications

    • Advanced computing
    • AI hardware acceleration
    • Multi-display setups
    • Industrial automation
    • Edge computing

    Description

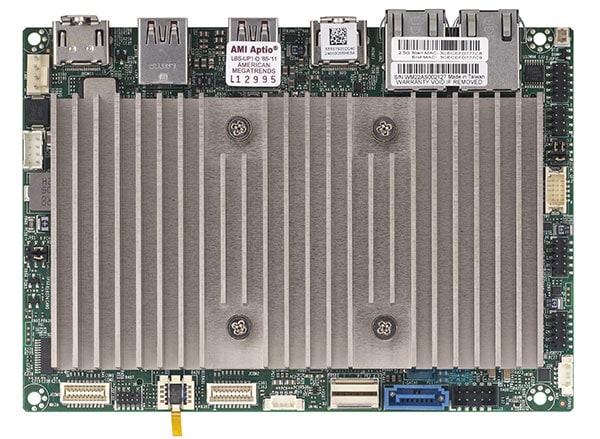

    The Supermicro MBD-X13SAN-L-O motherboard incorporates Intel's pioneering performance hybrid architecture, bringing enhanced computing power with the 12th Gen Intel Core i3-1215UE processor. It supports up to 64GB DDR5 RAM and features robust connectivity options including dual 2.5GbE LAN, six USB ports, and versatile expansion slots. Ideal for advanced AI Hardware acceleration, this 3.5" SBC delivers powerful graphics performance with Intel UHD Graphics, supporting up to four 4K displays. Additional features include wide-range power input, comprehensive I/O including audio with AMP, extensive operating temperature range, and SuperDoctor 5 system management software.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X13SAN-L
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU
    • 12th Generation Intel® Core™ i3-1215UE Processor
    • Single Socket FCBGA-1744 supported, CPU TDP supports Up to 15W TDP
    Core
    • Up to 6 cores, 8 threads / 10MB Cache
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s
    Memory Type
    • 4800 MT/s non-ECC DDR5 SODIMM Unbuffered
    DIMM Sizes
    • 8GB, 16GB, 32GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • Intel® 600 Series controller for 1 SATA3 ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® UHD Graphics for 12th Gen Intel® Processors port(s)
    • 4 Independent Displays from Dual DP (Alt mode)/HDMI 2.0b/HDMI1.4
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade
    Input / Output
    SATA
    • 1 SATA3 port(s)
    USB
    • 6 USB port(s) (4 via header; 2 rear type A)
    • 2 USB 3.2 Gen2 port(s) (2 rear type C Support DP1.4a (ALT mode))
    Video Output
    • 1 HDMI 2.0b port(s), 1 HDMI port(s), 2 DP (Alt mode) port(s)
    Serial Port
    • 4 COM Port(s) (4 header), 2 RS-232/422/485 with flow control, 2 RS-232
    TPM
    • 1 TPM Chip
    Others
    • 1 8-bit GPIO header
    • 1 SMBus header
    • 1 System Fan
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x4 SlimSAS
    M.2
    • M.2 Interface: 1 CNVi/PCIe 3.0 x1/USB2; 1 SATA/USB3/USB2
    • Form Factor: 2230, 2242/2280
    • Key: E-Key, B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.4
    • SMBIOS 3.5 or later
    • UEFI 2.8
    • PCI FW 3.0
    • RTC (Real Time Clock) Wakeup
    Management
    System Management Software
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, +5V, +3.3V, +12V, +1.8V PCH, +3.3V standby, Vmem, Vcore, +1.05V
    LED
    • Power LED
    • LAN activity LED
    • HDD Activity LED
    Temperature
    • CPU thermal trip support
    • peripheral temperature
    • System temperature
    • CPU temperature
    • PCH temperature
    Other Features
    • RoHS
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0157PL1X13SAN passive heatsink with height 25mm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CDAT-06651COM Cable 20cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0157PL1X13SAN passive heatsink with height 25mm
    QRG
    -1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC power jack,vertical to 2x4, 2.0mm, 15cm
    Heatspreader
    MCP-350-00008-0N1Aluminum block Heatspreader for X11SWN/X12STN/X13SAN
    Power Adapter
    MCP-250-10137-0N184W Lockable AC to DC power adapter without power cord
    USB3.1 Cable
    CBL-CUSB-08261USB3.2 Gen1 cable 1.25mm, 2x5P, 15CM
    x4 SlimSAS to U.2 Cable
    CBL-SAST-1240A-851Slimeline x4 to PCIe SFF-8639, 1x4, PH5.08, 40CM
