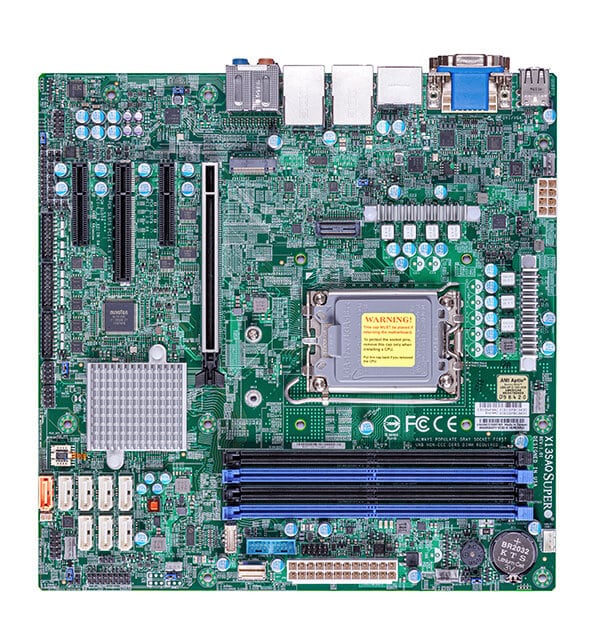

X13SAQ,Micro ATX,Alder Lake-S,Q670E,LGA1700,1 PCI

MBD-X13SAQ-O
https://safeconsulting.no/web/image/product.template/9708/image_1920?unique=8ecf738

kr 4 231,60 4231.6 NOK kr 4 231,60

kr 4 231,60

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X13SAQ-O motherboard supports 14th/13th/12th Gen Intel® Core™ processors, up to 24 cores, and up to 128GB of DDR5 memory. Equipped with dual 2.5 GbE LAN, it offers robust connectivity options with multiple PCIe and USB ports.

    Key Features

    • 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP (**bios v3.x or above)
    • Intel® Q670E
    • Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
    • 1 PCIe 5.0 x16 slot,1 PCIe 4.0 x4 slot,1 PCIe 3.0 x4 slot,1 PCIe 3.0 x2 slot,1 PCIe 4.0 NVMe x4 SlimSAS portM.2 Interface:1 PCIe 4.0 x4M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Dual 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
    • Intel® Q670E Controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 4 Independent Displays (1 VGA port, 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port)
    • Onboard TPM2.0

    Key Applications

    • High-performance computing
    • Desktop workstations
    • Small office servers
    • Multimedia production

    Description

    The Supermicro MBD-X13SAQ-O is a versatile motherboard designed for high performance and reliability. It supports 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron processors on a single Socket LGA-1700. With capacity for up to 128GB of DDR5 memory across four DIMM slots, this motherboard ensures smooth multitasking and efficient data handling. It features multiple PCIe slots, including PCIe 5.0 x16 and PCIe 4.0 x4, along with extensive connectivity options such as dual 2.5 Gigabit LAN, USB 3.2 Gen2, and various video outputs. The Intel® Q670E chipset supports RAID configurations for data redundancy and performance.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X13SAQ
    Physical Stats
    Form Factor
    • Micro-ATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
    • Single Socket V0 supported
    Core
    • Up to 24 cores
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MT/s
    • *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
    Memory Type
    • 4400/4000/3600 MT/s
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • Intel Q670E
    SATA
    • Intel Q670E controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Dual LAN with Intel® Ethernet i225LM
    Input / Output
    SATA
    • 8 SATA3 (6Gbps) port(s)
    USB
    • 4 USB 2 port(s) (2 via header; 2 rear type A)
    • 4 USB 3.2 Gen2 port(s) (2 via header; 2 rear type A)
    • 2 USB 3.2 Gen1 port(s) (2 via header)
    • 2 USB 3.2 Gen2x2 port(s) (2 rear type C)
    Video Output
    • 1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
    Serial Port
    • 6 COM Port(s) (2 header; 4 header)
    TPM
    • TPM TPM 2.0 onboard
    Expansion Slots
    PCIe
    • 1 PCIe 5.0 x16,
    • 1 PCIe 4.0 x4 (in x8 slot),
    • 1 PCIe 3.0 x4,
    • 1 PCIe 3.0 x2 (in x4 slot),
    • 1 PCIe 4.0 x4 SlimSAS
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.1
    • SMBIOS 3.0 or later
    • PCI FW 3.0
    • UEFI 2.7
    • RTC (Real Time Clock) Wakeup
    Management
    System Management Software
    • Wake-on-LAN, Watchdog
    Power Configurations
    • ACPI Power Management, ATX Power connector
    PC Health Monitoring
    Voltage
    • VBAT, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V
    LED
    • Power LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    Other Features
    • RoHS
    • M.2 NGFF connector
    • Chassis intrusion detection
    • ATX Power connector
    • ACPI power management
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00125-1N1Standard I/O Shield for X13SAQ with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L857.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00125-1N1Standard I/O Shield for X13SAQ with EMI Gasket
    QRG
    QRG-24661Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U LHS Riser Card for CSE-510
    RSC-S-6G5-1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
    4U CPU Heat Sink for Socket H(optional, not included)
    SNK-P0086AP4-CPU Active Heatsink for 4U chassis
    COM Cable
    CBL-CDAT-0604-40CM Dual Serial Port Cable with bracket
    I/O Shield
    MCP-260-00125-1N-2U I/O shield for SC731/732/823/825
    USB Cable
    CBL-CUSB-0835-Dual USB3.1 Type A Cable with Bracket
