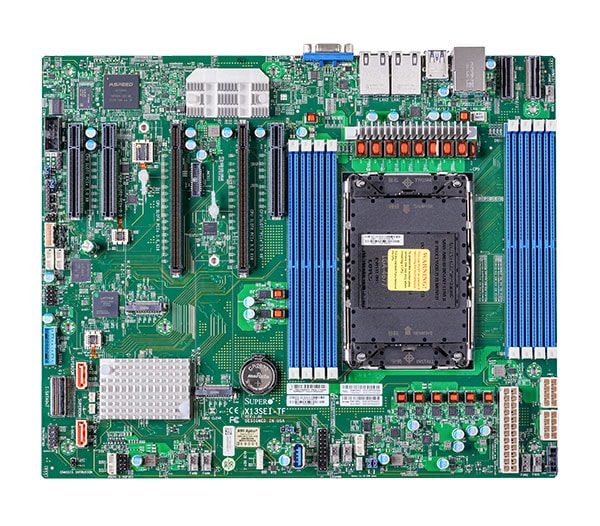

X13SEI-TF, LGA-4677-E, Intel EBG PCH, 8x DDR5 4800MHz
MBD-X13SEI-TF-O
Summary Description
The Supermicro MBD-X13SEI-TF-O motherboard offers high-performance solutions for data centers, with support for 5th/4th Gen Intel Xeon Scalable processors, up to 2TB DDR5 memory, and multiple expansion slots.
Key Features
- 5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
- Intel C741® Chipset
- Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
- 2 MCIO (PCIe5.0 x8) connectors for 4 NVMe SSDs
- 3 PCIe 5.0 x8,2 PCIe 5.0 x16,M.2 Interface:2 PCIe 5.0 x4M.2 Form Factor:2280, 22110M.2 Key:M-Key
- Dual LAN with 10GbE with Intel® X550
- 4 USB 3.2 Gen1 (2 rear, 1 Type-A, 1 via header), 2 USB 2.0 (2 rear)
- Intel® C741 controller for 10 SATA3 (6 Gbps) ports
Key Applications
- Data Centers
- Enterprise Servers
- High-Performance Computing
Description
The Supermicro MBD-X13SEI-TF-O is an advanced motherboard designed for server use, featuring single socket LGA-4677, support for up to 2TB DDR5-5600MT/s memory, dual LAN with 10GbE, and comprehensive expansion capabilities. The Intel C741 chipset and multiple PCIe and M.2 slots ensure robust performance and flexibility for various applications.
Product Specifications
Specification | Details |
---|---|
Product SKUs | |
SKUs |
|
Physical Stats | |
Form Factor |
|
Dimension |
|
Processor | |
CPU |
|
Core |
|
System Memory | |
Memory Capacity |
|
Memory Type |
|
DIMM Sizes |
|
Memory Voltage |
|
Error Detection |
|
On-Board Devices | |
Chipset |
|
SATA |
|
IPMI |
|
Graphics |
|
Network Controllers |
|
Input / Output | |
SATA |
|
LAN |
|
USB |
|
Video Output |
|
Serial Port |
|
DOM |
|
TPM |
|
Expansion Slots | |
PCIe |
|
M.2 |
|
System BIOS | |
BIOS Type |
|
BIOS Features |
|
Management | |
Software |
|
PC Health Monitoring | |
Voltage |
|
LED |
|
Temperature |
|
FAN |
|
Other Features |
|
Operating Environment | |
Operating Temperature Range |
|
Non-Operating Temperature Range |
|
Operating Relative Humidity Range |
|
Non Operating Relative Humidity Range |
|
Standard Part List
Part Number | Quantity | Description |
---|---|---|
Bulk Package | ||
CPU carrier | ||
SKT-1424L-001B-FXC | 1 | CPU carrier for 4th Gen Intel® Xeon® Scalable processors (MCC) |
SKT-1333L-0000-FXC | 1 | CPU carrier for 4th Gen Intel® Xeon® Scalable processors (XCC) |
I/O Shield | ||
MCP-260-00042-1N | 1 | STD I/O Shield for X13SEI-TF/-F with EMI Gasket |
SATA cable | ||
CBL-0044L | 2 | 57.5 cm SATA FLAT S-S PBF |
Retail Package | ||
CPU carrier | ||
SKT-1424L-001B-FXC | 1 | Socket E E1B Carrier LGA 4677 w/shim SP MCC , DG1.0 , ROHS |
SKT-1333L-0000-FXC | 1 | Socket E LGA4677, E1A XCC carrier, DG 1.0,ROHS |
I/O Shield | ||
MCP-260-00042-1N | 1 | STD I/O Shield for X13SEI-TF/-F with EMI Gasket |
QRG | ||
MNL-2450-QRG | 1 | Quick Reference Guide |
SATA cable | ||
CBL-0044L | 2 | 57.5 cm SATA FLAT S-S PBF |
Optional Part List
Part Number | Quantity | Description |
---|---|---|
TPM security module | ||
AOM-TPM-9670V | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
