  2. [NR]Arrow lake-S LGA1851, TDP 150W, Intel W880 chipset

[NR]Arrow lake-S LGA1851, TDP 150W, Intel W880 chipset

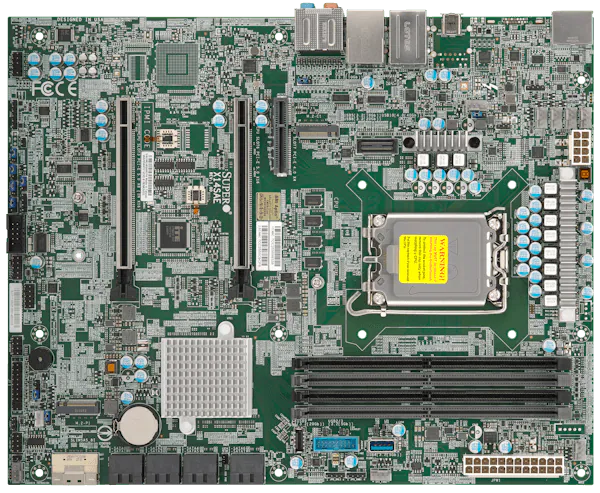

MBD-X14SAE-O
https://safeconsulting.no/web/image/product.template/13534/image_1920?unique=c1c77de

kr 5 440,97 5440.97 NOK kr 5 440,97

kr 5 440,97

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The motherboard offers robust performance with Intel W880 chipset and LGA1851 socket. It supports high-speed DDR5 memory, multiple PCIe lanes for extended connectivity, and comprehensive networking options. Ideal for demanding enterprise applications.

    Nøkkelfunksjoner

    • Intel Core Ultra 9/7/5 Series Processor, Single Socket LGA-1851(Intel® V1 Socket) supported, CPU TDP supports Up to 125W TDP
    • Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MHz, in 4 DIMM slots
    • M.2 Interface:1 PCIe 4.0 x4 and 1 PCIe 5.0x4 (support M.2 Form Factor 2280 only)M.2 Form Factor:2280/22110M.2 Key:M-Key
    • 2 M.2 slots (1 PCIe 4.0 x4 from PCH; support 2280/22110, and 1 PCIe5.0 x4 from CPU, support 2280)
    • 2 PCIe 5.0 x16 slots,1 PCIe 4.0 x4 slot
    • A 2.5 Gigabit LAN with Intel® Ethernet i226LM LAN controller
    • A 1 Gigabit LAN with Intel® Ethernet i219LM LAN controller [AMT/vPro]
    • 1 HDMI 2.1*, 1 DP 2.1**, 1 Thunderbolt™ 4.0 Type-C®*Supports data rates of up to 10 Gbps **Supports data rates of up to 10 Gbps
    • Intel® W880 Controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Supports Thunderbolt 4
    • Onboard TPM2.0

    Viktige bruksområder

    • Enterprise Server Solutions
    • High-Performance Workstations
    • Data Center Deployments
    • Virtualization Environments
    • AI and Machine Learning Tasks
    • High-Throughput Computing
    • Scientific Research Computing
    • Database Management
    • Network Security Appliances
    • Finance and Trading Systems

    Beskrivelse

    This high-performance motherboard supports Intel Core Ultra 9/7/5 processors with a single LGA-1851 socket. It features up to 192GB DDR5 memory, PCIe 5.0 and PCIe 4.0 support, multiple network interfaces including 2.5 Gigabit LAN, comprehensive connectivity options like Thunderbolt 4, and 8 SATA ports for RAID configurations, making it ideal for enterprise and workstation applications.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • MBD-X14SAE
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12" x 9.6" (30.5cm x 24.4cm)
    Processor
    CPU
    • Intel® Core™ Ultra 9/7/5 Processors
    • Single Socket V1 (LGA-1851) supported, CPU TDP supports Up to 125W TDP
    Core
    • Up to 24 cores
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MT/s
    • *Supports up to 192GB of DDR5 UDIMM with speeds of up to 5600MT/s with one DIMM single rank, or 4400MT/s with two DIMM dual rank in four memory slots
    Memory Type
    • 5600 MT/s Up to 192GB of memory with speeds of up to 5600 MT/s(2DPC)
    DIMM Sizes
    • 8GB, 16GB, 24GB, 32GB, 48GB
    • UDIMM: 8GB, 16GB, 24GB, 32GB, 48GB
    Memory Voltage
    • 1.1V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel W880
    SATA
    • 8 SATA3 ports; RAID 0,1,5,10
    • 1 SATA3 ports
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Single LAN with Intel® I226LM Ethernet Controller
    • Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro
    Input / Output
    SATA
    • 8 SATA3 (6Gbps) port(s) Supports software RAID 0,1,5,10
    USB
    • 3 USB 3.2 PCIe Gen. 2 port(s) (3 rear type A)
    • 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
    • 2 USB 3.2 Gen1 port(s) (2 headers)
    • 1 USB 4 port(s) (1 rear type C Intel® Thunderbolt™ 4)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 Intel® Thunderbolt™ 4 Type C (Shared w/ USB4/ DP2.1) port(s), 1 HDMI port(s) Supports up to 8K@60Hz
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • TPM TPM 2.0 onboard
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x4,
    • 2 PCIe 5.0 x16 (support up to 16/NA or 8/8; slot 3 support bifurcation x4x4
    M.2
    • M.2 Interface: 1 PCIe 5.0 x4, RAID 0 & 1; 1 PCIe 4.0 x4, RAID 0 & 1
    • Form Factor: 2280, 2280/22110
    • Key: M-Key, M-Key
    System BIOS
    BIOS Type
    • AMI 32MB AMI UEFI
    BIOS Features
    • ACPI 6.5
    • SMBIOS 3.8 or later
    • UEFI 2.9
    Management
    Software
    • Supermicro Server Manager (SSM) , Supermicro SuperDoctor® 5 (SD5) , Super Diagnostics Offline (SDO) , SuperServer Automation Assistant (SAA) New!
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V, +3.3V, +12V, CPU thermal trip support, UID, +1.8V CPU, Triple Cooling Zones
    FAN
    • 7x 4-pin fan headers (up to 7 fans)
    • Fan speed control
    • 5 fans with tachometer status monitoring
    • Overheat LED indication
    Other Features
    • WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Voltage and Frequency Overclocking
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 112°F)
    Non-Operating Temperature Range
    • -20°C - -60°C (-4°F - 140°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00192-0B1Standard I/O Shield for X14SAE  with EMI Gasket & Black Mylar
    SATA cable
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00192-0B1Standard I/O Shield for X14SAE  with EMI Gasket & Black Mylar
    QRG
    MNL-2706-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-0044L457.5 cm SATA FLAT S-S PBF
