  2. [NR]X14,Embedded,mini-ITX,ARL-S,UP,PCH W880,Dual LAN,LGA1851

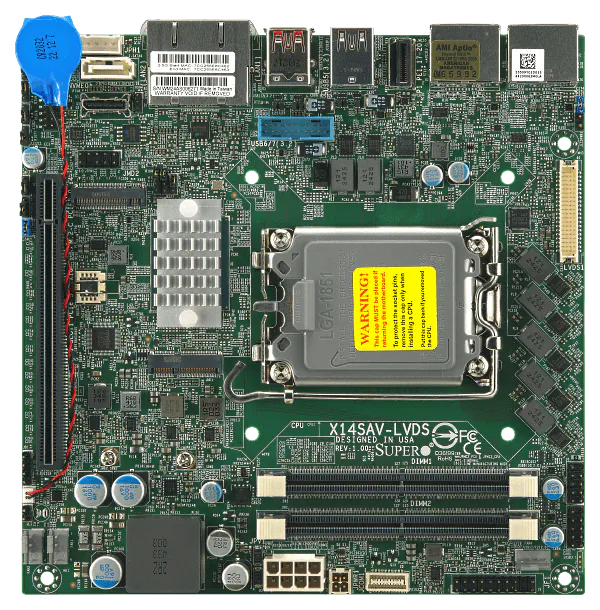

[NR]X14,Embedded,mini-ITX,ARL-S,UP,PCH W880,Dual LAN,LGA1851

MBD-X14SAV-LVDS-O
https://safeconsulting.no/web/image/product.template/13538/image_1920?unique=ce410c7

kr 4 602,91 4602.91 NOK kr 4 602,91

kr 4 602,91

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The [NR]X14 Embedded Mini-ITX Motherboard is designed for professional applications, featuring an Intel W880 chipset, dual LAN, and support for up to 96GB DDR5 memory. Suitable for use in various industrial settings.

    Nøkkelfunksjoner

    • Intel Core Ultra 9/7/5 Series 2 Processor, Single Socket LGA-1851 supported, CPU TDP supports Up to 65W
    • Up to 96GB Unbuffered ECC/non-ECC CSODIMM/SODIMM, clocked DIMM support up to 6400MT/s (with Core Ultra 9/7), in 2 slots
    • 1 PCIe 5.0 x16 slot (16/NA or 8/8 or 8/4/4)1 PCIe 4.0 x4 MCIO port1 M.2 M-Key 2280 (PCIe 5.0 x4)1 M.2 E-Key 2230 (PCIe 4.0 x1/USB 2.0)
    • Dual 2.5 Gigabit LAN with Intel® Ethernet i226LM LAN controller [AMT/vPro]
    • Intel® W880 Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 4 Independent Displays (1 24 bit LVDS, 2 DP 1.4 ports, 2 HDMI 2.1 ports)
    • Supports 12V - 24V DC power input
    • Both onboard TPM 2.0 chip and pin header

    Viktige bruksområder

    • Embedded Systems
    • Industrial Automation
    • Digital Signage
    • Network Security Appliances

    Beskrivelse

    The [NR]X14 Embedded Mini-ITX Motherboard offers superior performance with support for Intel Core Ultra series processors and up to 96GB of high-speed DDR5 memory. It includes dual 2.5 Gigabit LAN for secure networking, and multiple PCIe and M.2 expansion options. This motherboard is ideal for industrial and embedded applications, ensuring reliable functionality across a broad temperature range.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • MBD-X14SAV-LVDS
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Core® Ultra 9/7/5 Series 2 Processors
    • Single Socket V1 (LGA-1851) supported, CPU TDP supports Up to 65W TDP
    Core
    • Up to 24 cores
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 96GB Unbuffered ECC/non-ECC SODIMM, DDR5-6400MT/s
    • CSODIMM (clocked SODIMM) support up to 6400MT/s (with Core Ultra 9/7)
    Memory Type
    • 5600/4800/4400/4000 MT/s ECC/non-ECC DDR5 SODIMM Unbuffered Up to 96GB of memory with speeds of up to 5600 MT/s(1DPC)
    DIMM Sizes
    • 8GB, 16GB, 24GB, 32GB, 48GB
    Memory Voltage
    • 1.1V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel W880
    SATA
    • 1 SATA3 ports
    Network Controllers
    • Dual LAN with Intel® I226LM Ethernet Controller
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 2.5 Gigabit Ethernet LAN port
    USB
    • 4 USB 2 port(s) (4 via header)
    • 2 USB 3 port(s) (2 via header)
    • 3 USB 3.2Gen2x1 port(s) (3 rear type A)
    • 1 USB 3.2 Gen2x2 port(s) (1 rear type C)
    Video Output
    • 1 LVDS port(s) 1x 24bit dual Channel LVDS, 2 DP (DisplayPort) port(s), 2 HDMI port(s)
    Serial Port
    • 2 COM Port(s) (2 header)
    TPM
    • 1 TPM Header
    • 1 TPM TPM 2.0 onboard
    Expansion Slots
    PCIe
    • 1 PCIe 5.0 x16
    M.2
    • M.2 Interface: 1 PCIe 5.0 x4; 1 PCIex1/USB2
    • Form Factor: 2280, 2230
    • Key: M-Key, E-Key
    System BIOS
    BIOS Type
    • AMI 32MB AMI UEFI
    BIOS Features
    • ACPI 6.5
    • SMBIOS 3.7 or later
    • UEFI 2.9
    Management
    Software
    • Supermicro Server Manager (SSM) , Supermicro SuperDoctor® 5 (SD5) , Super Diagnostics Offline (SDO) , SuperServer Automation Assistant (SAA) New!
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V, Monitors CPU Core Voltages, Fan speed control, PWM fan speed control, Power LED, Thermal Control for 3 Fan Connectors, 3 fans with tachometer monitoring
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12-24V DC Power Connector
    FAN
    • 3x 4-pin fan headers (up to 3 fans)
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 85°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
