  2. X14, Server, Birch Stream, UP, GNR/SRF-SP, LGA4710

X14, Server, Birch Stream, UP, GNR/SRF-SP, LGA4710

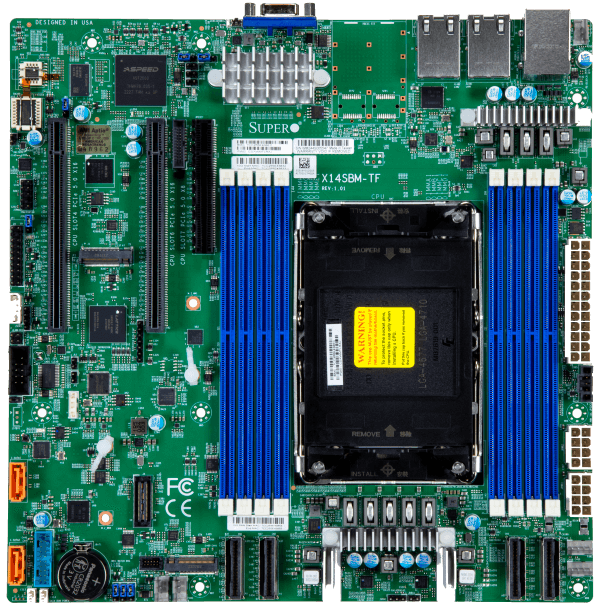

MBD-X14SBM-TF-O
https://safeconsulting.no/web/image/product.template/10219/image_1920?unique=a1dbe1e

kr 7 535,55 7535.55 NOK kr 7 535,55

kr 7 535,55

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X14SBM-TF-O motherboard is equipped to handle Intel Xeon 6700E-series processors, with powerful features like Dual LAN with Intel X710-AT2, PCIe 5.0 slots, and up to 1TB DDR5 RDIMM memory capacity. Ideal for high-performance computing environments.

    Key Features

    • Intel® Xeon® 6700E-series processors, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
    • Up to 1TB ECC RDIMM DDR5-6400MT/s in 8 DIMM slots
    • 4 PCIe 5.0 X8 via MCIO connectors
    • 1 PCIe 5.0 x8,2 PCIe 5.0 x16,M.2 Interface:2 PCIe 5.0 x2M.2 Form Factor:2280, 22110M.2 Key:M-Key
    • Dual LAN with 10GBase-T with Intel® X710-AT2
    • Onboard TPM2.0
    • 4 USB 3.2 Gen1 (2 rear, 2 via header), 2 SATA3 ports

    Key Applications

    • High-performance computing
    • Enterprise servers
    • Data centers
    • Virtualization
    • Scientific computing

    Description

    The Supermicro MBD-X14SBM-TF-O motherboard supports Intel Xeon 6700E-series processors with up to 350W TDP. It features 4 PCIe 5.0 X8 via MCIO connectors, 1 PCIe 5.0 x8, 2 PCIe 5.0 x16 slots, and Dual LAN with 10GBase-T. The board also supports up to 1TB ECC RDIMM DDR5-6400MT/s memory across 8 DIMM slots. It includes an onboard TPM2.0, 4 USB 3.2 Gen1 ports, and 2 SATA3 ports for versatile connectivity options.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X14SBM-TF
    Physical Stats
    Form Factor
    • microATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • Intel® Xeon® 6700E-series
    • Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
    Core
    • Up to 144 (E) cores
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 1TB ECC Registered RDIMM, DDR5-6400MT/s
    Memory Type
    • 6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
    DIMM Sizes
    • 32GB, 64GB, 128GB
    Memory Voltage
    • 1.1V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • ASMediaASM1061 controller for 2 SATA3 ports
    IPMI
    • ASPEED AST2600 BMC
    Network Controllers
    • Dual LAN with 10GBase-T with Intel® X710-AT2
    Input / Output
    SATA
    • 2 SATA3 port(s)
    LAN
    • 2 RJ45 10 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    • 1 TPM TPM 2.0 onboard
    Expansion Slots
    PCIe
    • 2 PCIe 5.0 x16,
    • 1 PCIe 5.0 x8,
    • 4 PCIe 5.0 x8 MCIO connector
    M.2
    • M.2 Interface: 2 PCIe 5.0 x2
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI 64MB AMI UEFI
    BIOS Features
    • ACPI 6.5
    • SMBIOS 3.7 or later
    • UEFI 2.9
    Management
    Software
    • SCC,SuperServer Automation Assistant (SAA) New!
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, 5 -fan status, +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control
    Other Features
    • WOL
    • UID
    • Control of power-on for recovery from AC power loss
    • ACPI power management

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    CPU carrier
    SKT-1543H-0000-FXC1CPU carrier for Intel® Xeon® 6 processors (XCC)
    SKT-1544H-0000-FXC1CPU carrier for Intel® Xeon® 6 processors (HCC/LCC)
    I/O Shield
    MCP-260-00154-0N1STD I/O Shield for X14SBM-TF/-TP4F with EMI Gasket
    SATA cable
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    Retail Package
    CPU carrier
    SKT-1543H-0000-FXC1CPU carrier for Intel® Xeon® 6 processors (XCC)
    SKT-1544H-0000-FXC1CPU carrier for Intel® Xeon® 6 processors (HCC/LCC)
    I/O Shield
    MCP-260-00154-0N1STD I/O Shield for X14SBM-TF/-TP4F with EMI Gasket
    QRG
    MNL-2681-QRG1Motherboard Quick Reference Guide
    SATA Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
