  2. [NR]X14, Server, WIO, Birch Stream, UP, GNR/SRF-SP, LGA4710

[NR]X14, Server, WIO, Birch Stream, UP, GNR/SRF-SP, LGA4710

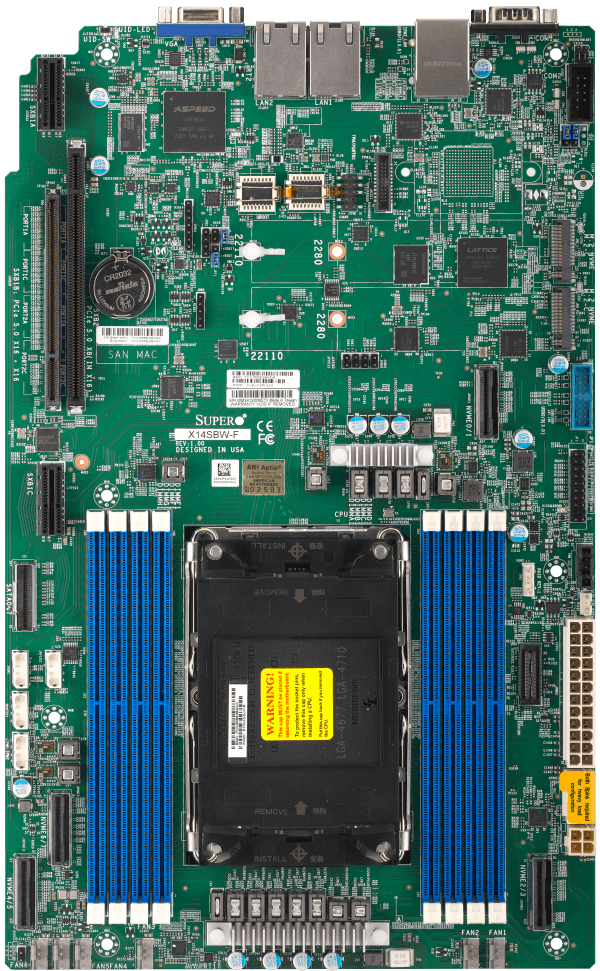

MBD-X14SBW-F-B
https://safeconsulting.no/web/image/product.template/10218/image_1920?unique=ba3907f

kr 6 163,14 6163.14 NOK kr 6 163,14

kr 6 163,14

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X14SBW-F-B motherboard supports the latest Intel® Xeon® 6700E-series processors, offering high performance with up to 1TB ECC DDR5 RDIMM memory. It includes multiple PCIe 5.0 slots, dual LAN ports, and various USB and SATA ports, making it an ideal choice for demanding computing environments.

    Key Features

    • Intel® Xeon® 6700E-series, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
    • Up to 1TB ECC RDIMM DDR5-6400MT/s in 8 DIMM slots
    • 4 PCIe 5.0 X8 via MCIO connectors
    • 1 PCIe 5.0 x8 (WIO-R),2 PCIe 5.0 x16 (WIO-L),M.2 Interface:2 PCIe 5.0 x2M.2 Form Factor:2280, 22110M.2 Key:M-Key
    • Dual LAN with 1GbE with Intel®I210
    • Onboard TPM2.0
    • 4 USB 3.2 Gen1 (2 rear, 2 via header), 8 SATA3 (via SlimSAS x8)

    Key Applications

    • High-performance computing
    • Data centers
    • Server applications
    • Enterprise environments
    • AI workloads

    Description

    Designed for robust performance, the Supermicro MBD-X14SBW-F-B motherboard features an advanced set of capabilities suitable for enterprise-level tasks. It boasts support for Intel® Xeon® 6700E-series processors and up to 1TB of ECC DDR5-6400MT/s memory across 8 DIMM slots. The motherboard provides extensive expansion options with PCIe 5.0 slots, dual LAN with Intel® I210, onboard TPM 2.0, and various I/O ports including USB 3.2 Gen1, SATA3, and M.2 interfaces. Enhanced with PC health monitoring features, this motherboard ensures reliability and optimal performance for your data centers and high-performance computing needs.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X14SBW-F
    Physical Stats
    Form Factor
    • Proprietary WIO
    Dimension
    • 8" x 13" (20.32cm x 33.02cm)
    Processor
    CPU
    • Intel® Xeon® 6700E-series
    • Single Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
    Core
    • Up to 144 (E) cores
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 1TB ECC Registered RDIMM, DDR5-6400MT/s
    Memory Type
    • 6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
    DIMM Sizes
    • 32GB, 64GB, 128GB
    Memory Voltage
    • 1.1V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • ASMediaASM1164 controller for 8 SATA3 ports
    IPMI
    • ASPEED AST2600 BMC
    Network Controllers
    • Dual LAN with 1GbE with Intel® I210
    Input / Output
    SATA
    • 8 SATA3 port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    TPM
    • 1 TPM Header
    • 1 TPM TPM 2.0 onboard
    Expansion Slots
    PCIe
    • 1 PCIe 5.0 x8 Right Riser (in x16) slot,
    • 1 PCIe 5.0 x32 Left Riser Slot,
    • 4 PCIe 5.0 x8 PCIe5.0 MCIO connector
    M.2
    • M.2 Interface: 2 PCIe 5.0 x2
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI 64MB AMI UEFI
    BIOS Features
    • ACPI 6.5
    • SMBIOS 3.7 or later
    • UEFI 2.9
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LED
    • UID/Remote UID
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
