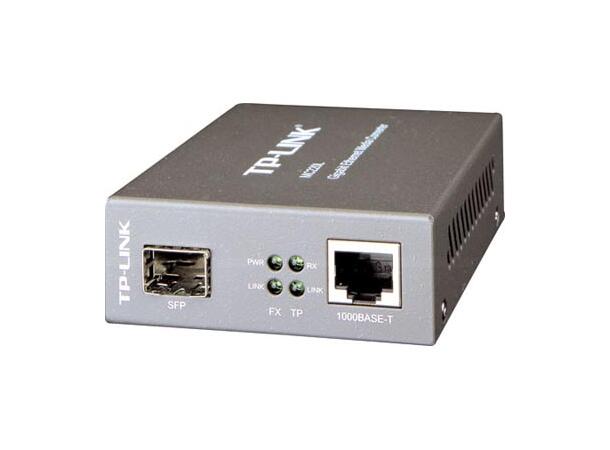

TP-Link Media Converter MC220L

SKU:

MC220L

kr 258,72 258.72 NOK kr 258,72

kr 258,72

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The TP-Link MC220L converts fiber to copper media, supporting 850nm multi-mode and 1310nm single-mode fiber cables. Suitable for stand-alone use or with TP-LINK’s 19” system chassis.

Nøkkelfunksjoner

Works at 1000Mbps Full-Duplex
Auto MDI/MDIX for TX port
Switch config: Force/Auto transfer mode
FX port hot-swappable
Fiber distance: 0.55 km multi, 10 km single-mode
LED indicators for easy monitoring

Beskrivelse

The MC220L converts fiber to copper media or vice versa, allowing data transmission up to 0.55 kilometers or 10 kilometers. It operates in full-duplex mode for both TX and FX ports with easy-to-view LED indicators for status monitoring.

Produktspesifikasjoner

Specification	Details
Standards And Protocols
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function
Functionality	Auto-negotiation (Half/Full-Duplex)
Ports
Port Details	1× 1000M SFP port 1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length
Dependence	Depends on the used SFP module
Network Media 1000BASE-X
Media Type	Multi-mode/Single-mode SFP module
Network Media 1000BASE-T
Media Type	UTP category 5, 5e cable (max 100m) EIA/TIA-568 100Ω STP (max 100m)
LED Indicators
Indicators	PWR, Link/Act
Dimensions
Size	3.7×2.9×1.1 in. (94.5×73.0×27.0 mm)
Power Supply
Type	External Power Adapter
Max Power Consumption
Consumption	1.7W
Safety & Emission
Certifications	FCC, CE, RoHS
Package Contents
Contents	MC220L Power Adapter Installation Guide
Environment
Operating Temperature	0~50 degrees Celsius
Storage Temperature	-40~70 degrees Celsius
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
