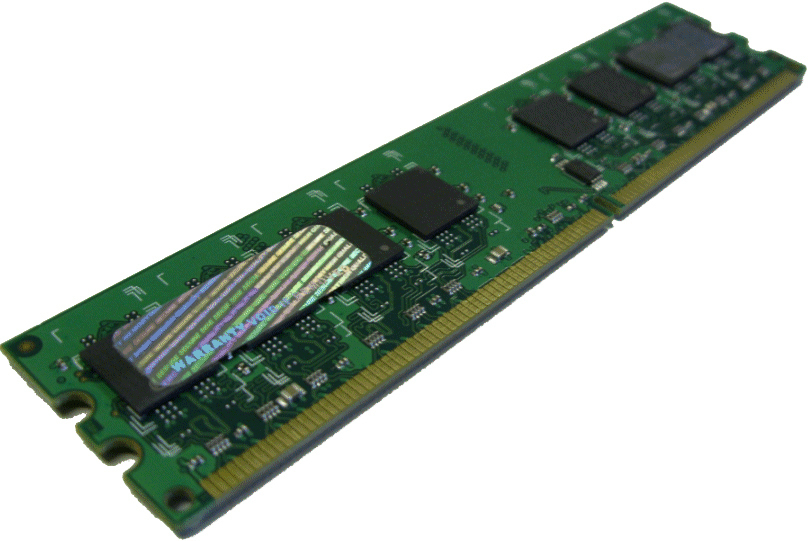

Supermicro 16GB DDR3-1866 2R*4 ECC REG DIMM

• Nominal and dynamic on-die termination (ODT)
• Dual-rank with 8 internal device banks
• Supports ECC error detection and correction
• 240-pin, registered dual in-line memory module (RDIMM)
• DDR3 functionality and operations
• Fast data transfer rates: PC3-14900 or PC3-12800
• Operating voltage: 1.5V ±0.075V
• Fly-by topology with terminated control, command, and address bus
• 16GB (2 Gig x 72)
• Gold edge contacts and halogen-free
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
• On-board I2C temperature sensor with SPD EEPROM

• Servers
• Workstations
• High-performance computing
• Data centers
• Network infrastructure
• Enterprise applications
• Cloud computing

This 16GB DDR3 SDRAM registered dual in-line memory module (RDIMM) supports fast data transfer rates of PC3-14900 or PC3-12800. It operates at a voltage of 1.5V ±0.075V and supports ECC error detection and correction. The module features nominal and dynamic on-die termination (ODT) for data and strobe signals, dual-rank configuration, and 8 internal device banks. Additionally, it includes a fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS), an on-board I2C temperature sensor with integrated serial presence-detect (SPD) EEPROM, gold edge contacts, and is halogen-free. The RDIMM is built with a fly-by topology and terminated control, command, and address bus.
