500k, 16bit High-resolution Multifunction Card

500k, 16bit High-resolution Multifunction Card

SKU:	PCI-1716-BE
Brand:	Advantech

kr 7 976,44 7976.4400000000005 NOK kr 7 976,44 Ekskl. mva

kr 7 976,44 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

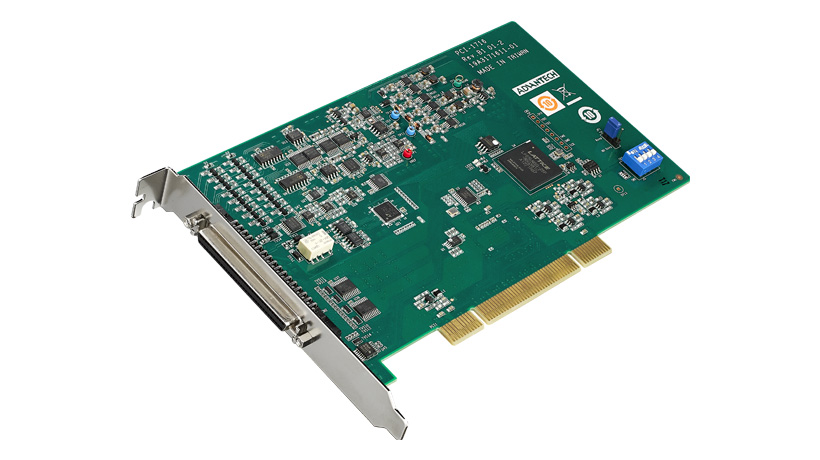

PCI-1716-BE is a multifunction card offering 500k, 16-bit resolution. It features multiple analog and digital I/O channels, and supports various programming languages. Ideal for high-performance data acquisition.

Nøkkelfunksjoner

500 kHz Sampling Rate
16-bit High Resolution
16 Analog Input Channels
Auto-Calibration
PCI-Bus Mastering

Viktige bruksområder

High-Performance Data Acquisition
Industrial Automation
Scientific Research
Signal Processing
Test and Measurement Systems

Beskrivelse

The PCI-1716-BE is designed with 16 single-ended or 8 differential analog inputs, a 16-bit A/D converter for high-resolution data acquisition, and a 500 kHz sampling rate. It includes FIFO memory and 2 analog output channels. Built with 16-ch digital input and output, it ensures reliable performance with auto-calibration and PCI-Bus mastering data transfer.

Produktspesifikasjoner

Specification	Details
Analog Input
Channels	16
Input Range	±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V
Resolution(Bits)	16-bit
Sampling Rates(S/s)	500 KS/s (sum)
Analog Output
Channels	2
Output Ranges	0~5 V, 0~10 V, ±5 V, ±10 V
Resolution	16-bit
Update Rate(S/s)	1 MS/s
General
Programming Language	C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Counter/Encoder Input
Channels	1
Counting Range	16-bit
Digital Input
Channels	16 (TTL)
Digital Output
Channels	16 (TTL)
