Beskrivelsesammendrag

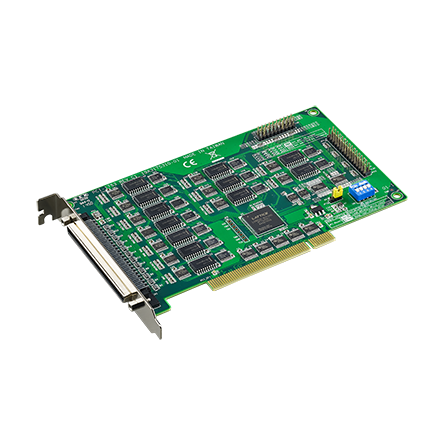

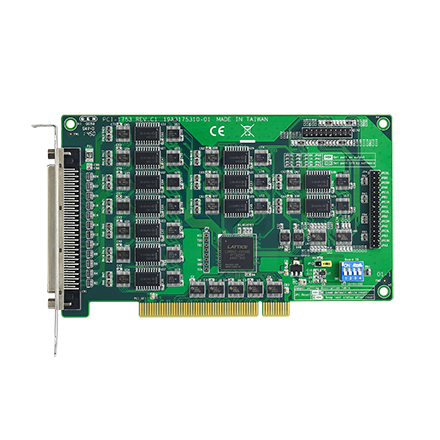

The PCI-1753-CE is a high-performance 96-channel TTL digital I/O card designed for advanced digital signal monitoring. It offers multiple-source interrupt handling, buffered circuits, and mode 0 emulation of 8255 PPI. Ideal for critical I/O operations with robust features.
Nøkkelfunksjoner
- 192 TTL digital I/O lines
- Buffered circuits for high capacity
- 8255 PPI mode 0 emulation
- Multiple-source interrupt handling
- Interrupt output for external devices
- Output status read-back
- Pattern match & state change interrupts
- Retains settings on system reset
Beskrivelse
The PCI-1753-CE offers up to 192 TTL digital I/O lines with emulation for mode 0 of 8255 PPI. It features buffered circuits for enhanced driving capacity, multiple-source interrupt handling, and preserves I/O settings during system resets. This card is well-suited for monitoring with pattern match and change of state interrupt functions, ensuring reliable performance in demanding environments.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| General | |
| Programming Language |
|
| Digital Input | |
| Channels |
|
| Digital Output | |
| Channels |
|
