16ch Relay & 16ch Isolated DI Card

SKU: PCI-1762-BE
GTIN (EAN/UPC): 4719879823349
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12931/image_1920?unique=1af942d

kr 2 493,36 2493.36 NOK kr 2 493,36 Ekskl. mva

kr 2 493,36 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

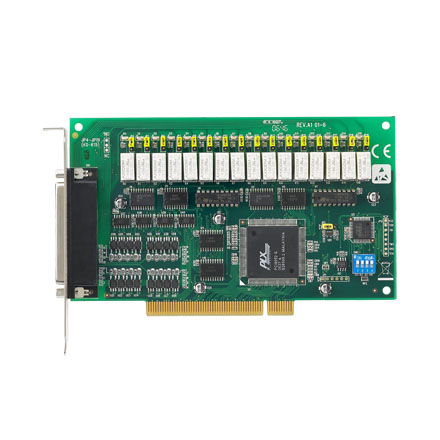

    The PCI-1762-BE is a reliable circuit board offering 16 relay output channels and 16 isolated digital input channels, ideal for diverse industrial applications.

    Nøkkelfunksjoner

    • 16 relay output channels and 16 isolated DI
    • LED indicators for activated relays
    • Selectable Form A/Form B relay output
    • High-voltage isolation (2,500 VDC)
    • Wide input range (10 ~ 50 VDC)

    Beskrivelse

    With features such as LED indicators for activated relays, selectable relay output channel types, high-voltage isolation, and wide input range, the PCI-1762-BE meets industrial standards, providing robust control solutions.

    Produktspesifikasjoner

    Specification Details
    General
    Programming Language
    • C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
    Digital Input
    Channels
    • 16 (Isolated)
    Isolation Protection
    • 2,500 VDC
    Relay Output
    Channels
    • 16 Form A
    Contact Rating (Resistive)
    • 0.5 A @ 30 VDC, 0.5 A @ 250 VAC
    Max. Switching Power
    • 125 VAC, 15 W
