Beskrivelsesammendrag
The PCI-1784U-AE card is designed for industrial applications requiring high precision positioning and timing. It supports four 32-bit up/down counters and optically isolated inputs/outputs. With multiple interrupt sources and a 4-stage digital filter, it is ideal for precision tasks.
Nøkkelfunksjoner
- Four 32-bit up/down counters
- Optically isolated inputs/outputs
- Multiple interrupt sources
- Wide range time-base selector
- 4-stage digital filter
- BoardID™ switch
Viktige bruksområder
- Precision Positioning Systems
- Industrial Automation
- Robotics
- CNC Machines
- Data Acquisition Systems
- Motion Control Systems
- Process Control
Beskrivelse

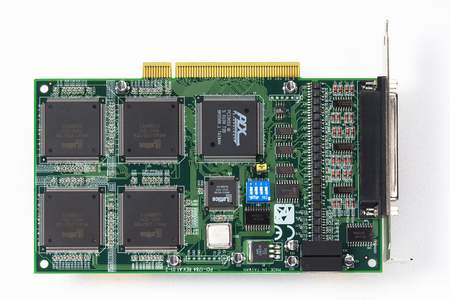

The PCI-1784U-AE is a high-performance quadrature encoder and counter card with a 32-bit range. It supports differential inputs and provides pulse/direction and up/down counting modes. The card offers multiple interrupt sources, a range of digital inputs/outputs, and features BoardID™ switch for versatile configurations. Optically isolated with protection up to 2,500 VDC, it ensures reliable operation in demanding environments.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| General | |
| Programming Language |
|
| Counter/Encoder Input | |
| Channels |
|
| Counting Range |
|
| Mode |
|
| Digital Input | |
| Channels |
|
| Isolation Protection |
|
| Digital Output | |
| Channels |
|
| Isolation Protection |
|
